Chevy Truck
>>
1995
>>
S10/T10 P/U 4WD V6-262 4.3L VIN Z TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Fuel Delivery & Controls
>>
With Powertrain Control Module (PCM)
With Powertrain Control Module (PCM)

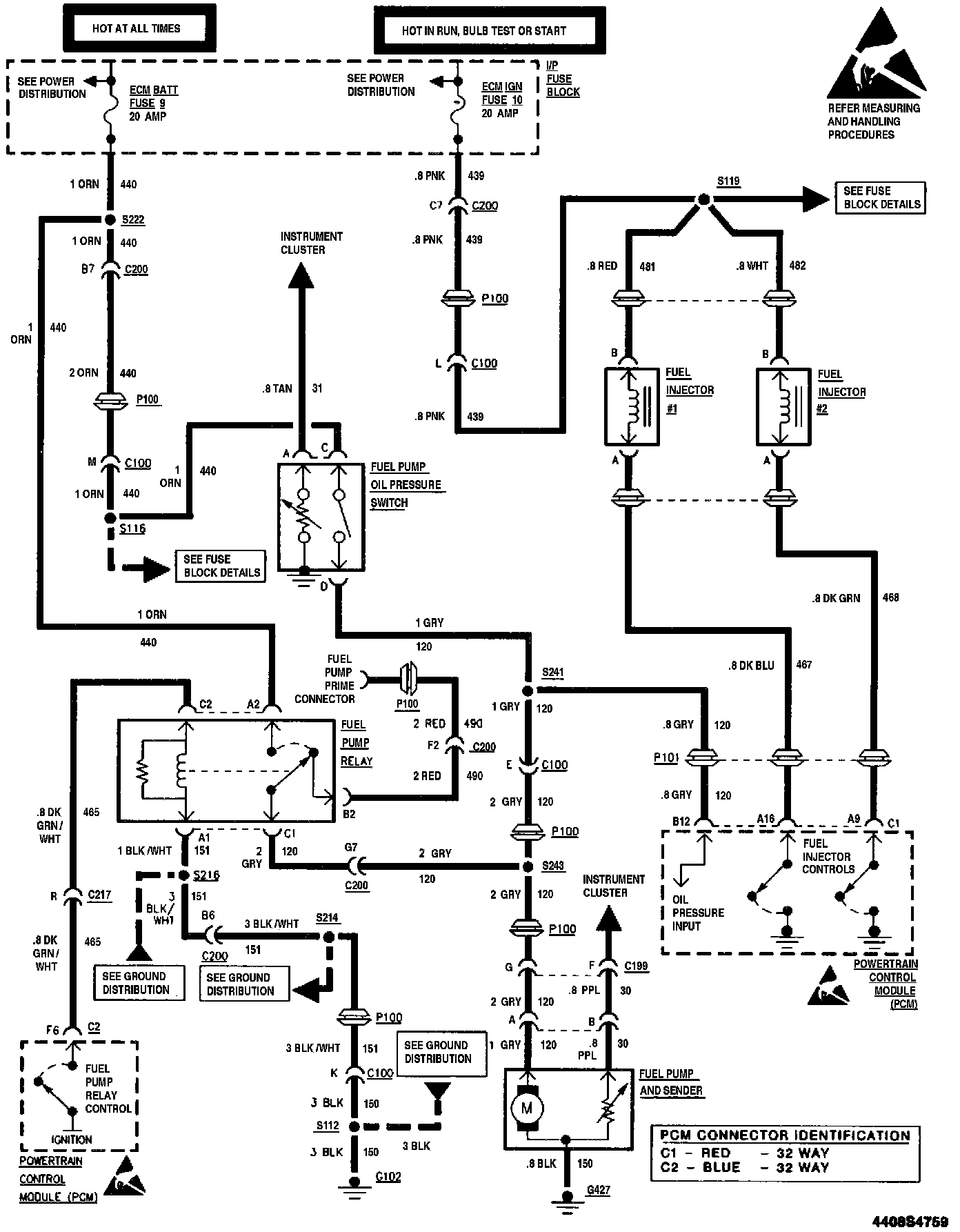

Throttle Body Injection (PCM):
