Home >> Chevy Truck >> 1995 >> S10/T10 P/U 4WD V6-262 4.3L VIN Z TBI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> With Manual Transmission >> Powertrain Control Module >> C4

C4

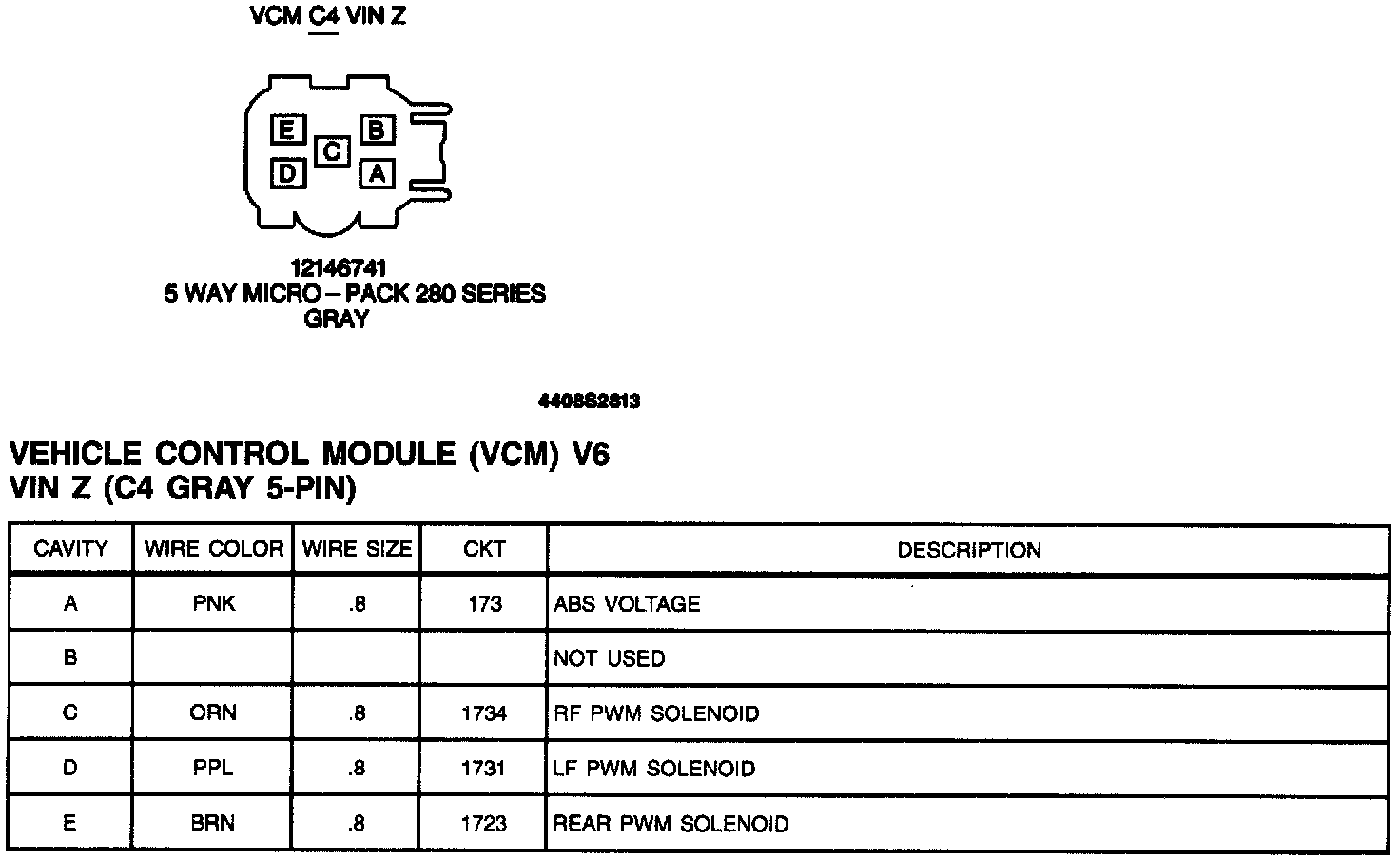

Vehicle Control Module (VCM):
