Upper Control Arm Bushing

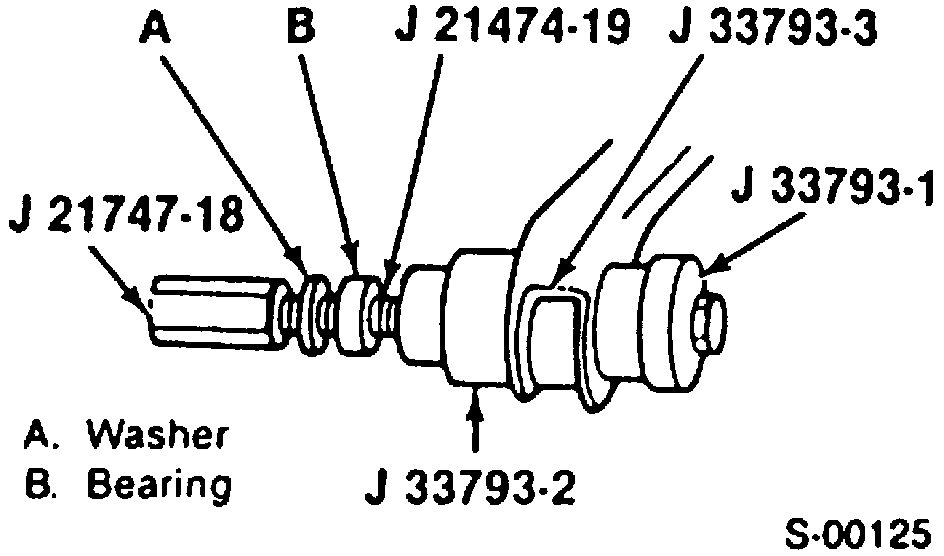

Fig. 10 Upper Control Arm Bushing Removal:

Fig. 11 Upper Control Arm Bushing Installation:

1. Remove upper control arm.
2. Remove nuts from end of pivot shaft, then remove bushings, Fig. 10.
3. Install bushings by installing pivot shaft in control arm and pressing new bushings into control arm, Fig. 11. Tighten pivot shaft nuts to specifications, with weight of vehicle resting on wheels. Both bushings must be installed 0.48-0.52 inch from face of control arm to bushing outer sleeve.
