Home >> Chevy Truck >> 1995 >> S10/T10 P/U 2WD V6-262 4.3L VIN W CPI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Engine Controls >> With Powertrain Control Module (PCM) >> PCM Schematics

PCM Schematics

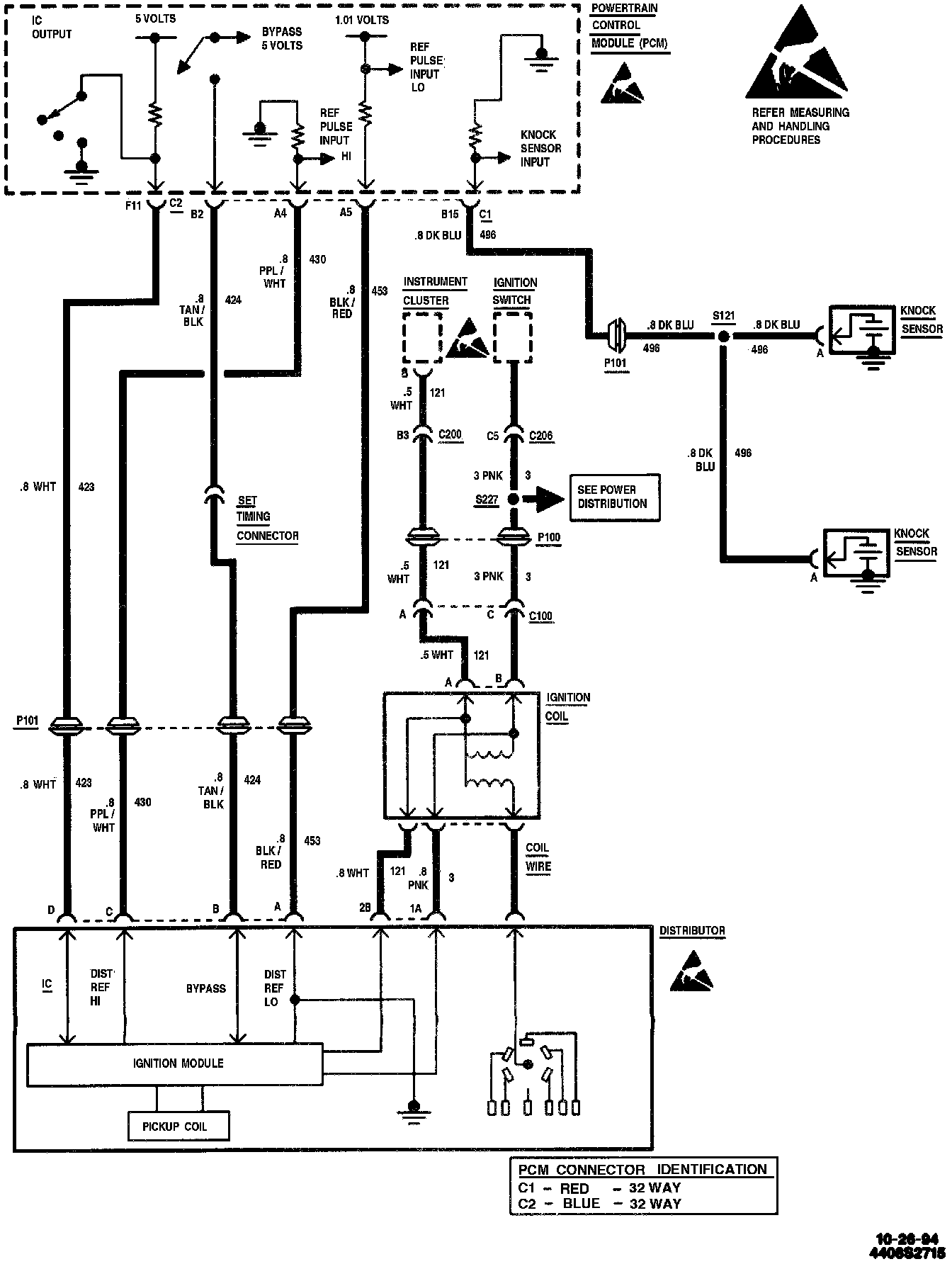

Central Port Injection (PCM):

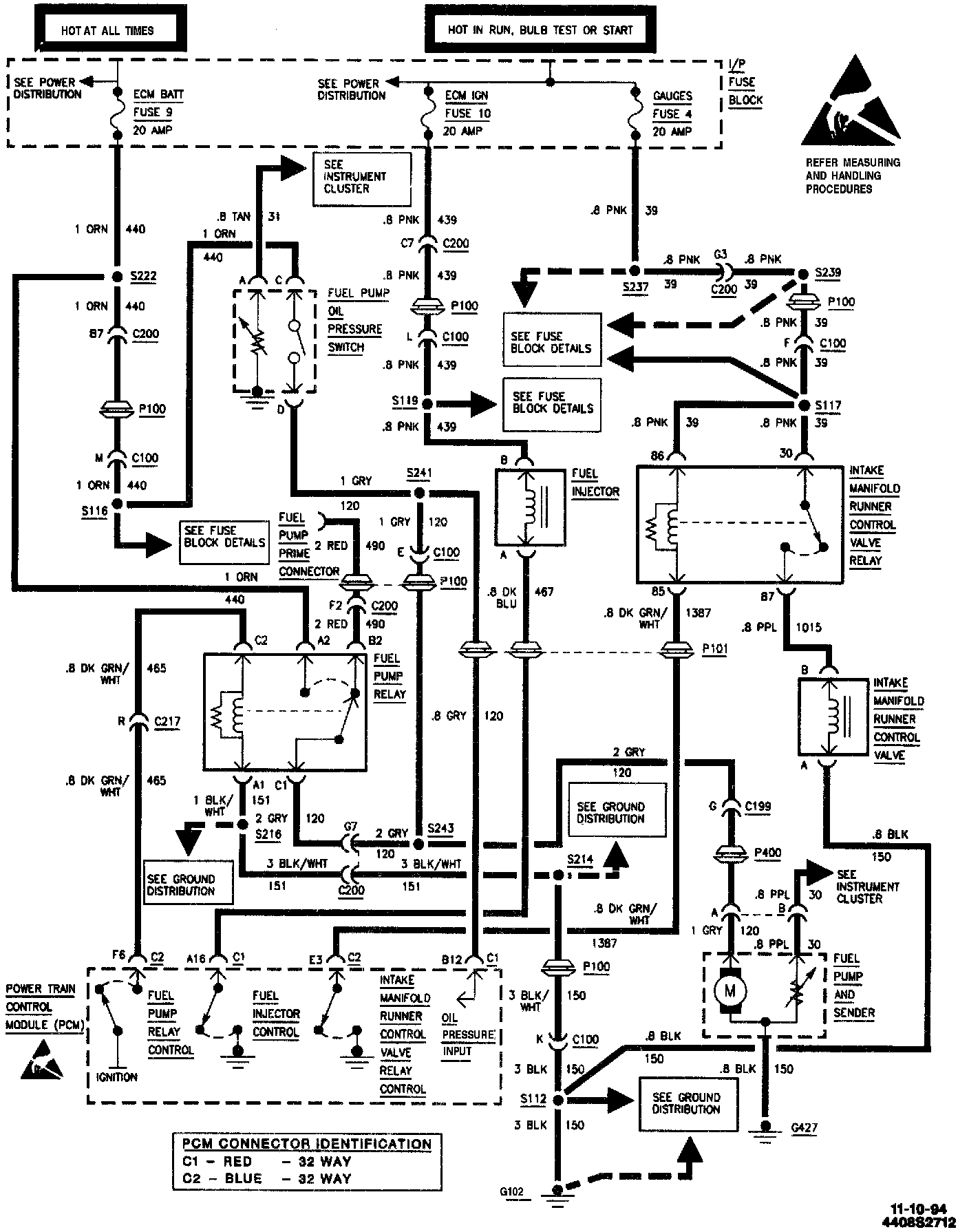

Central Port Injection:

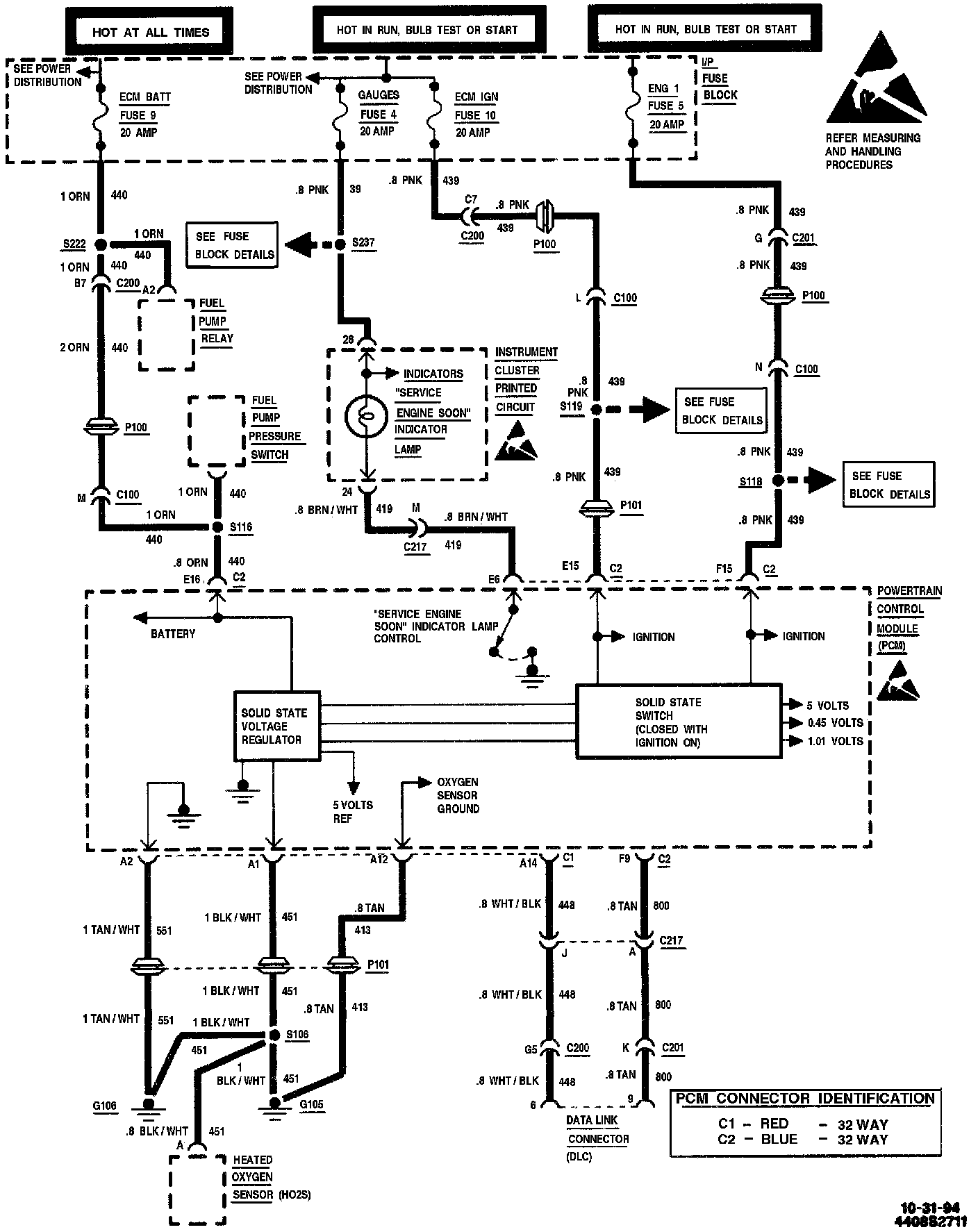

Central Port Injection (PCM):

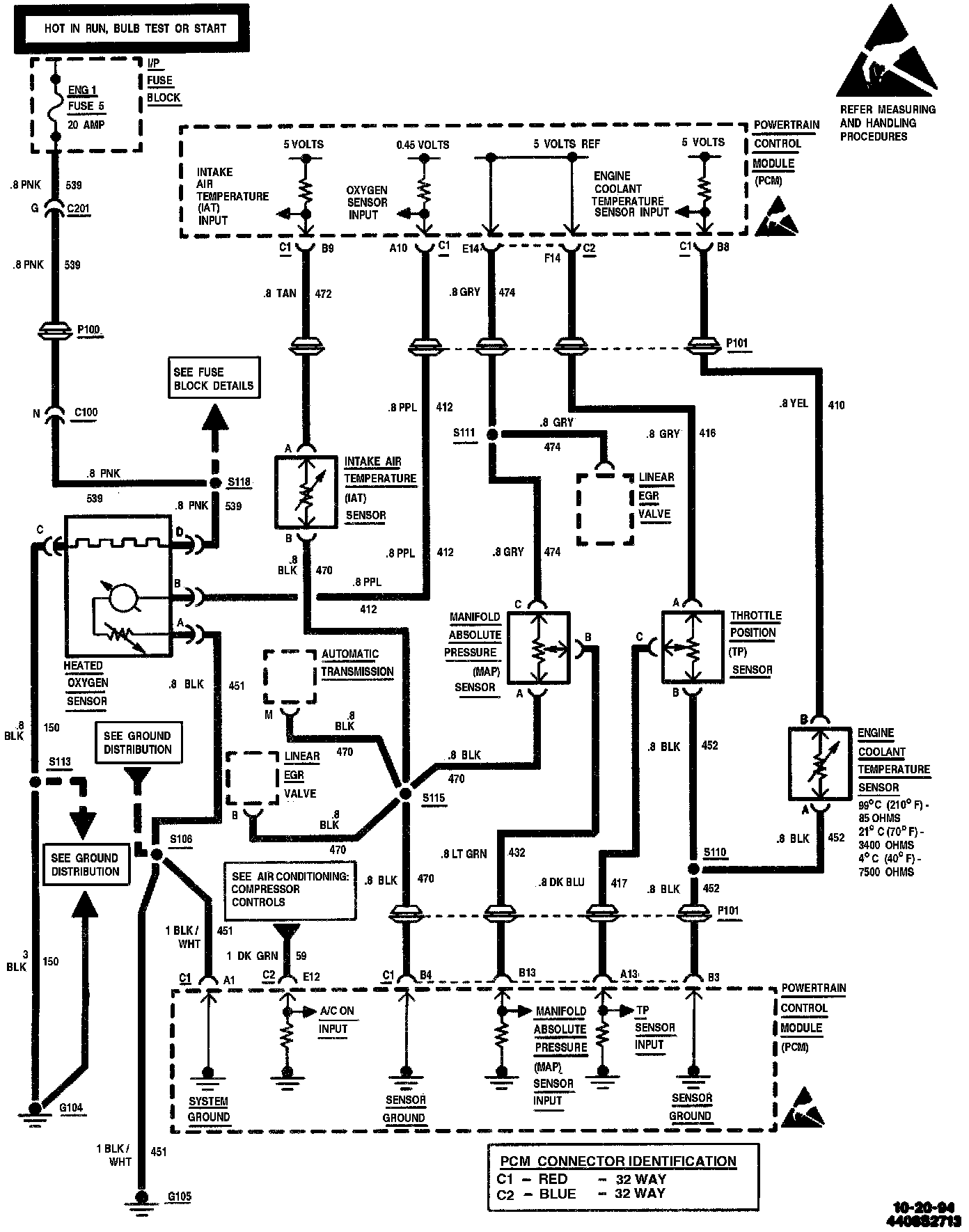

Central Port Injection (PCM):

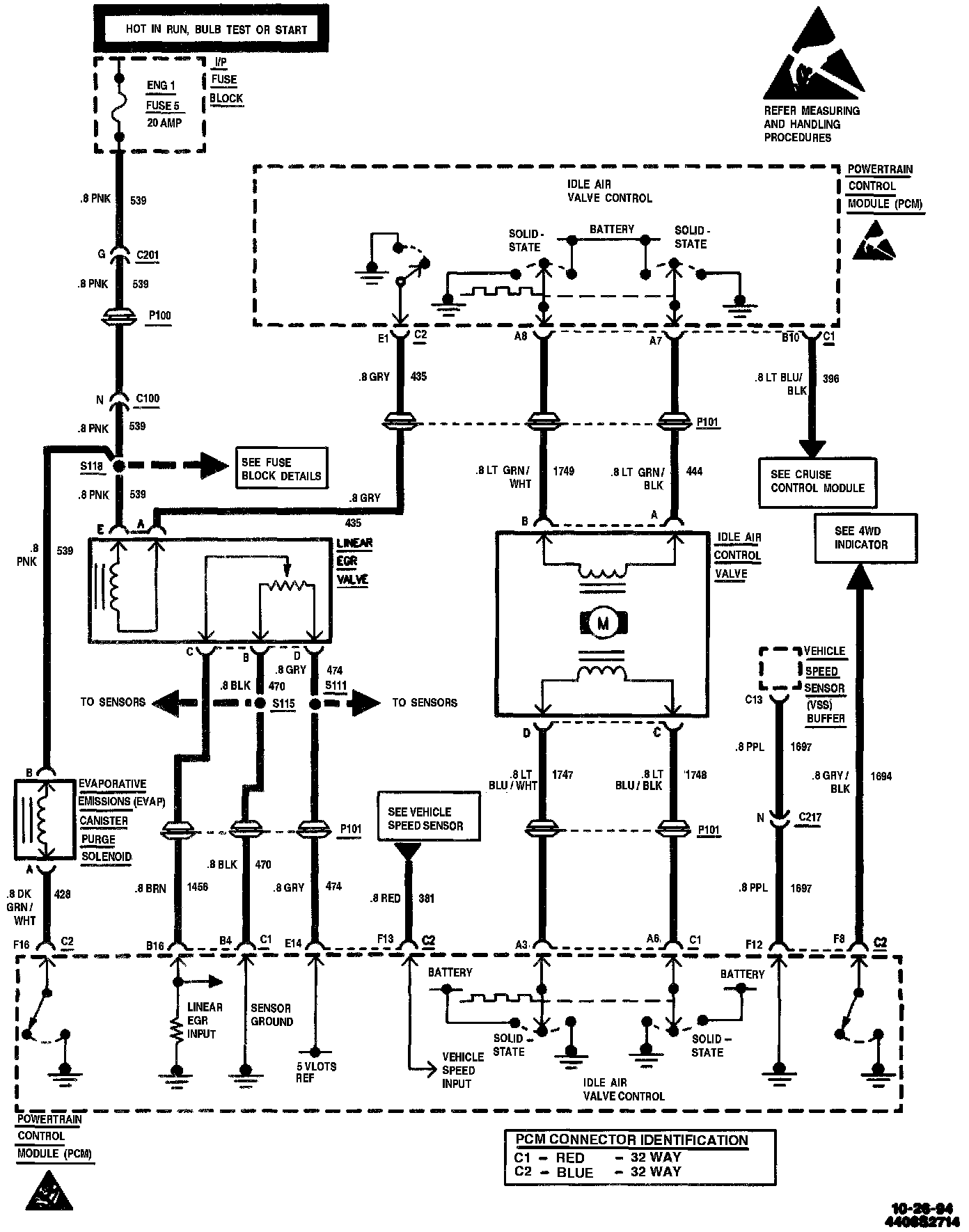

Central Port Injection (PCM):



Central Port Injection (PCM):
