Vehicle Control Module (VCM)

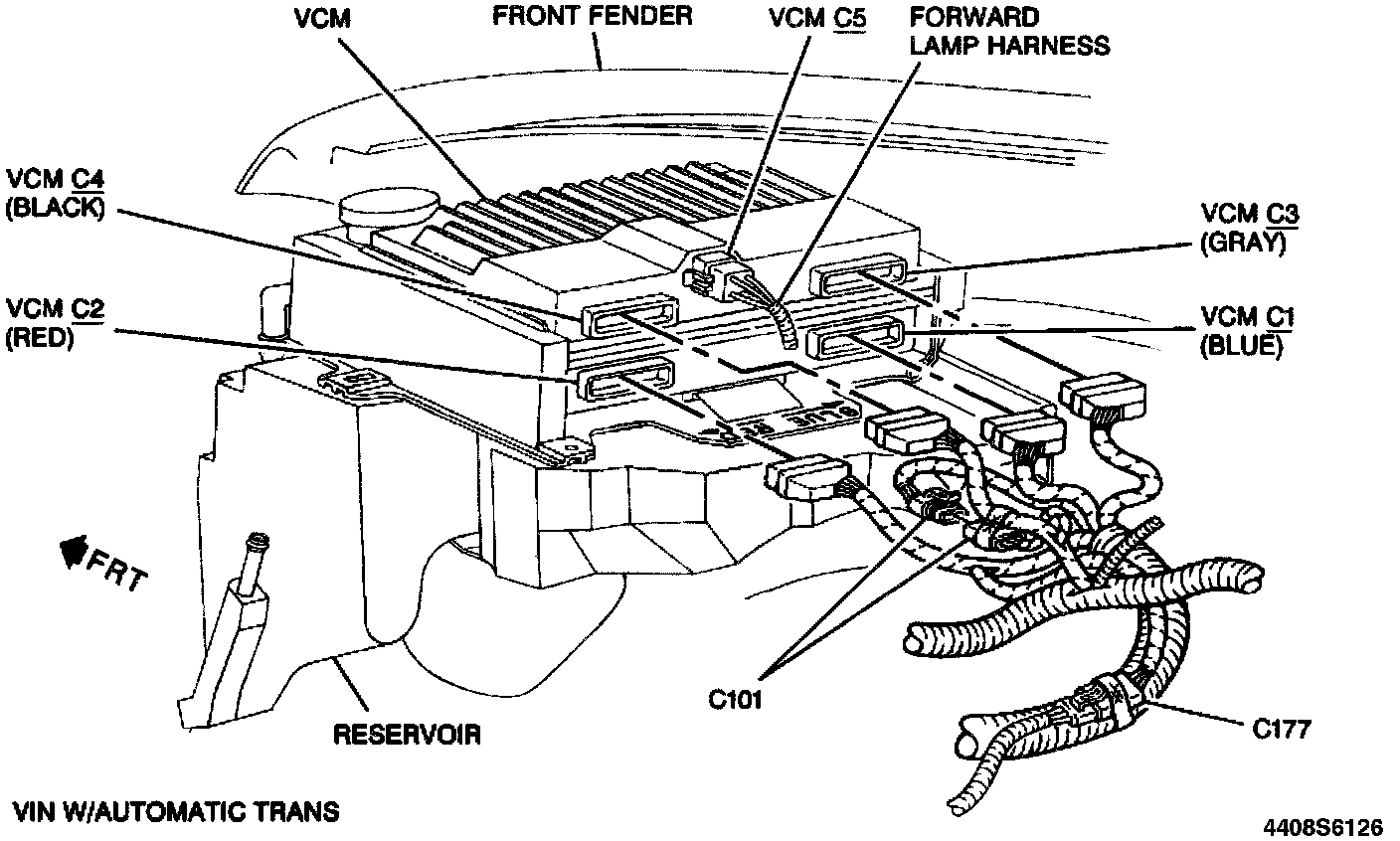

RH Side Of Engine Compartment - Vehicle Control Module (VCM), Automatic Transmission:
