Removal

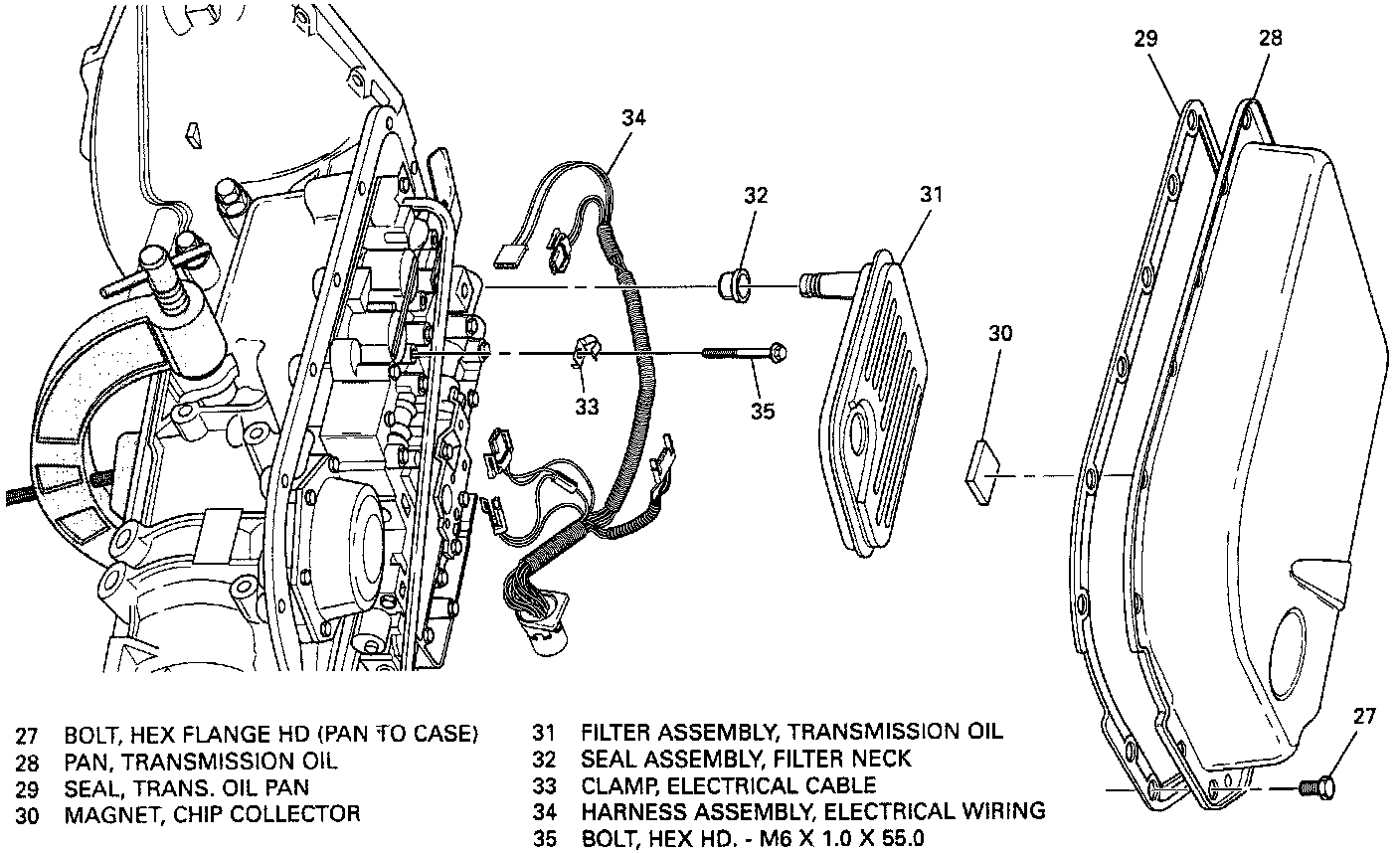

PAN AND FILTER ASSEMBLY

Pan, Filter And Seal Removal:

REMOVE OR DISCONNECT
1. Drain the transmission fluid Out case extension by rotating transmission to a vertical position.
2. Seventeen bolts (27), using 10 mm socket, drain transmission fluid.
3. Pan (28), seal (29) and magnet (30).

IMPORTANT
- Seal (29) is reusable.

4. Filter assembly (31).

INSPECT
- Filter neck seal (32), replace if necessary.
