Intake Air Plenum: Application and ID

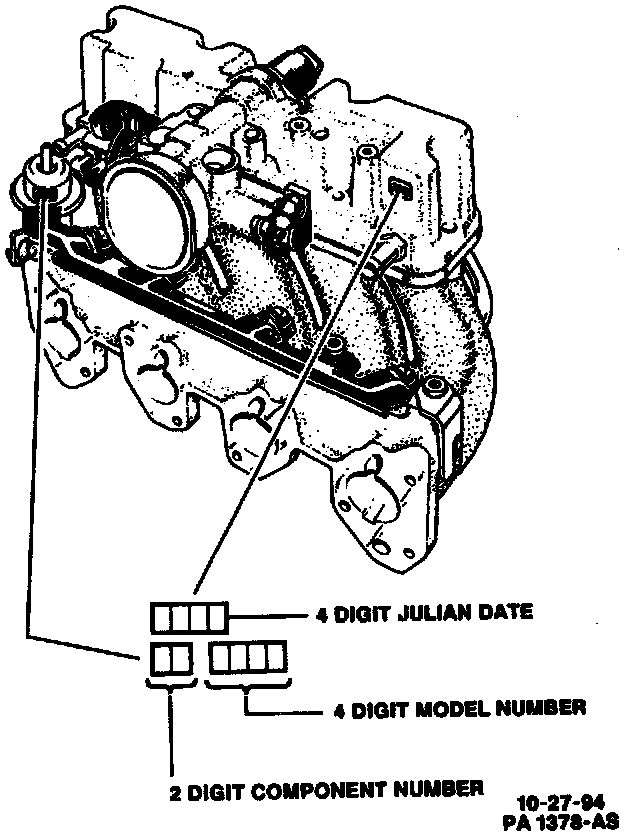

Identification Label Location:

A label containing the last four digits of the upper manifold assembly identification number appears above the power brake fitting assembly as shown. The bar code (read by an optical scanner) also contains the component number for manifolds, and the four digits of the identifying number. Refer to this number if servicing or part replacement is required.

Upper And Lower Manifold Assemblies:

Upper And Lower Manifold Assembly-Part Name:

Refer to the disassembled view for identification of parts during repair procedures.
