Chevy Truck
>>
1995
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Fuses
>>
Fuse 14
Fuse 14

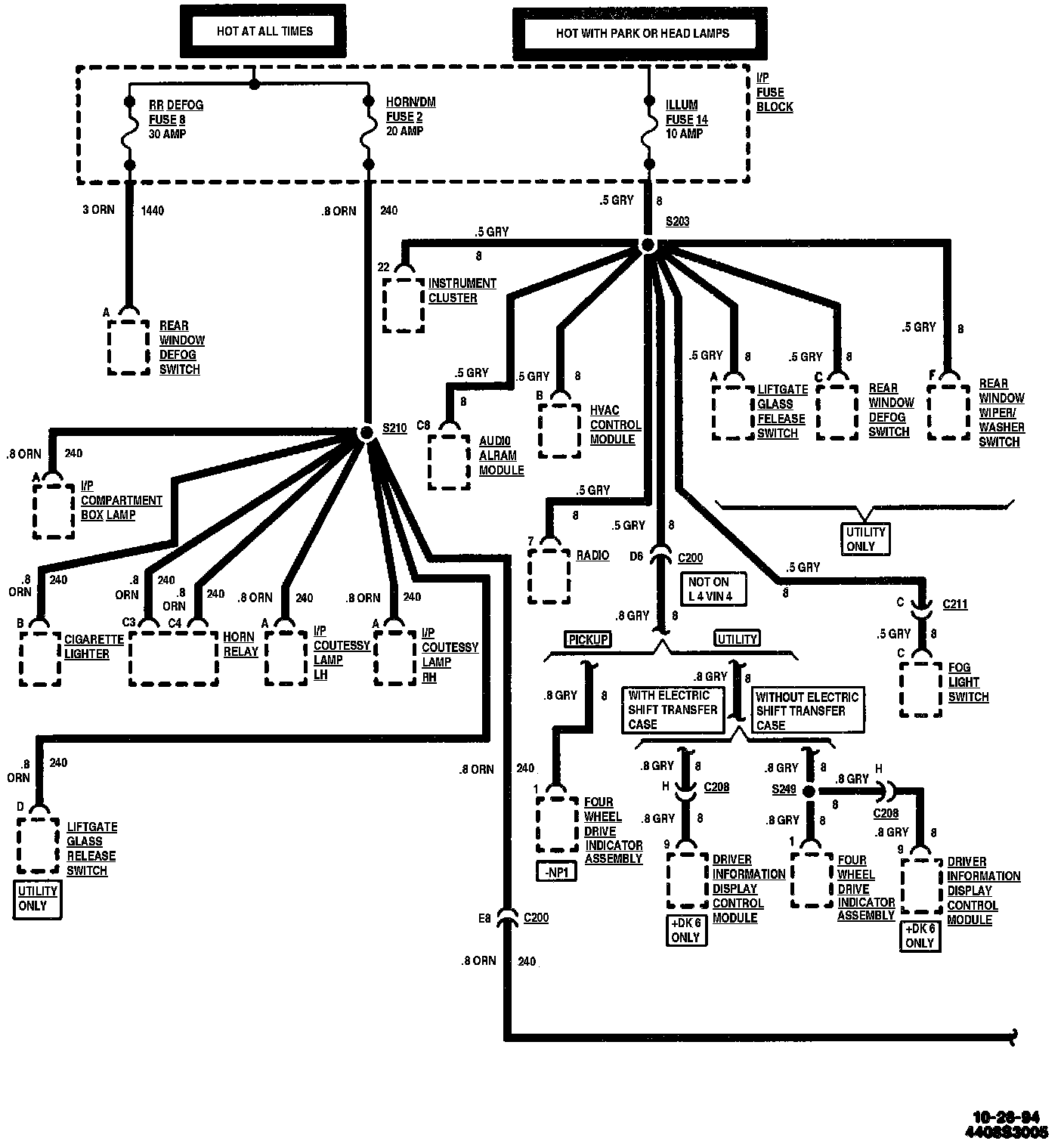

I/P - Fuses 2, 8, 14 (1 Of 2):

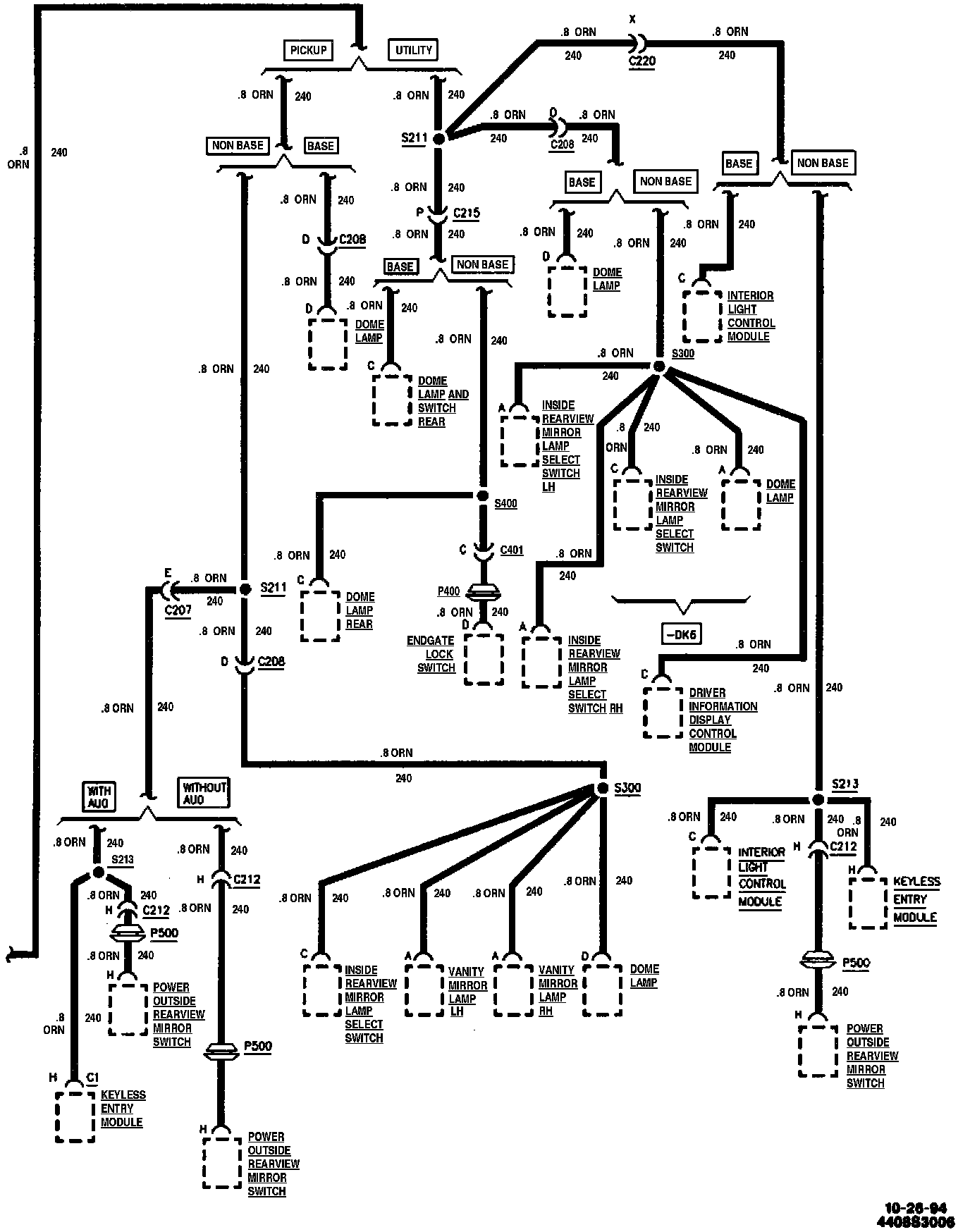

I/P - Fuses 2, 8, 14 (2 Of 2):
