Vacuum Reservoir HVAC: Service and Repair

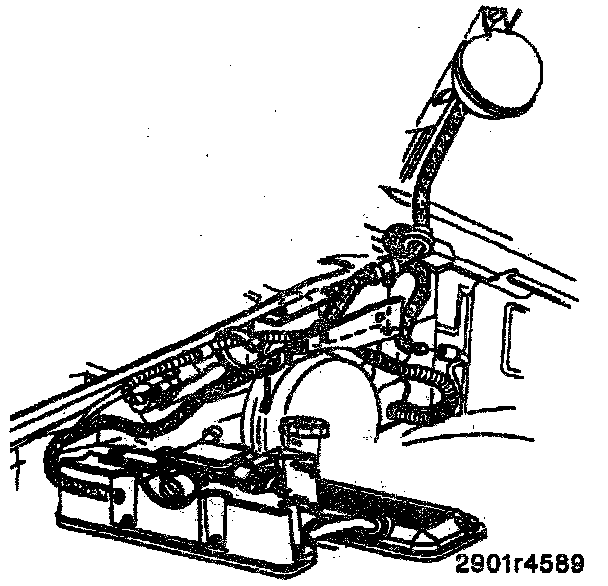

Vacuum Hose Routing:

REMOVE OR DISCONNECT


1. Vacuum hose.

2. Vacuum tank screws.

3. Vacuum tank.


INSTALL OR CONNECT


1. Vacuum tank.

2. Vacuum tank screws.

3. Vacuum hose(s).
