Cylinder Head Bolt Torque and Sequence

Cylinder Head Bolts

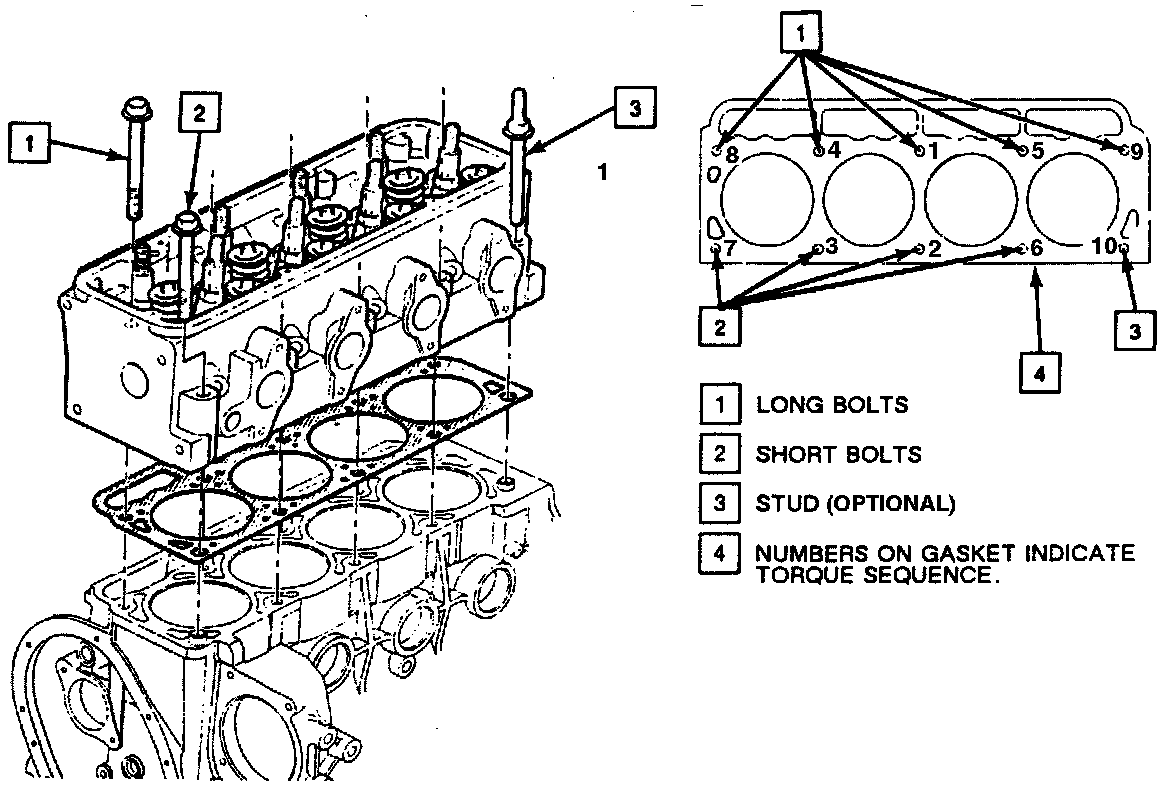

Fig. 6 Cylinder Head Bolt Tightening Sequence:

In the sequence shown (refer to figure 6):

^ Torque long bolts to 63 Nm (46 ft lbs)
^ Torque short bolts to 58 Nm (43 ft lbs)
^ Torque ALL bolts an additional 90° (1/4 turn)
