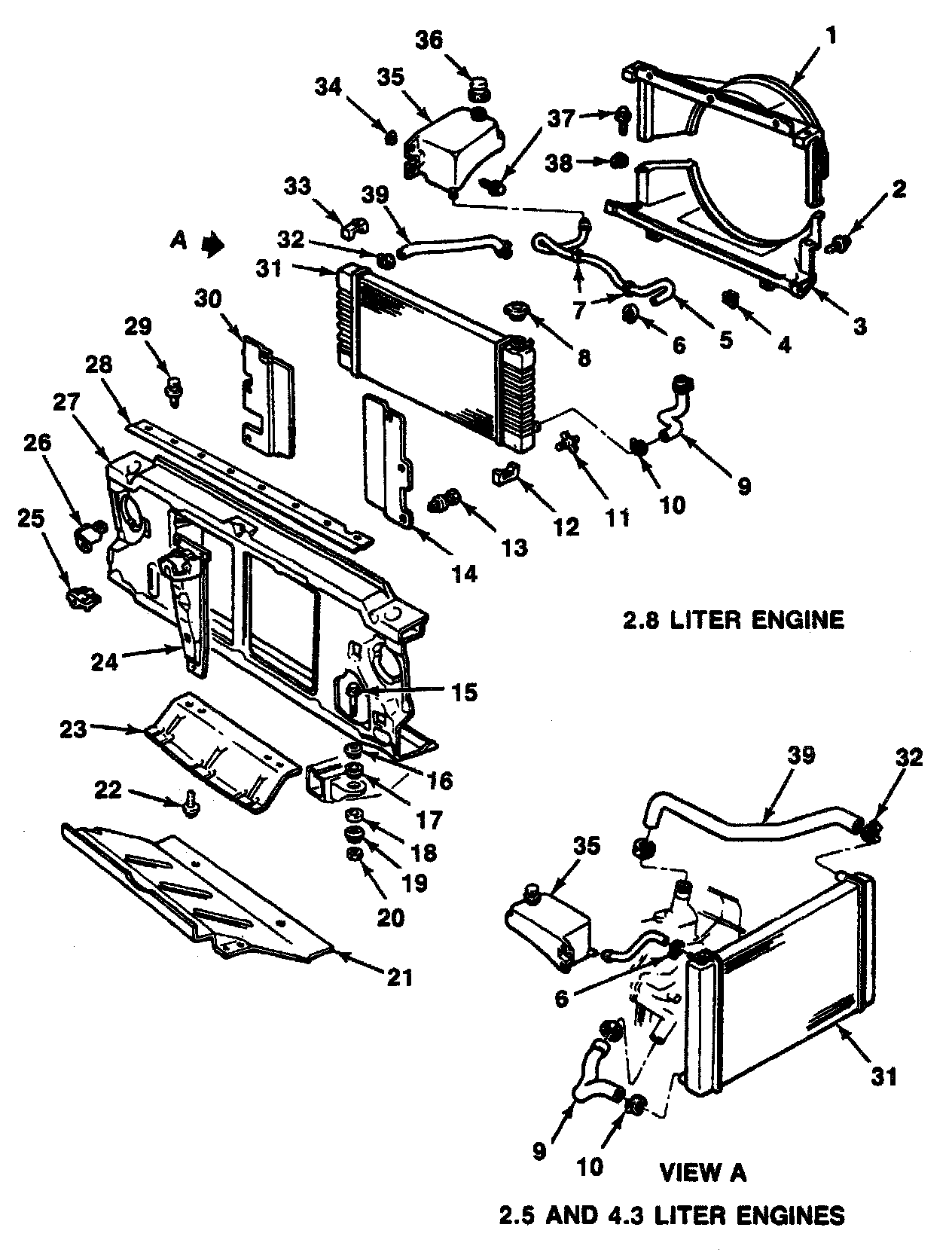

Radiator Replacement

Remove or Disconnect
1. Coolant from the radiator.
2. Coolant reservoir hose.

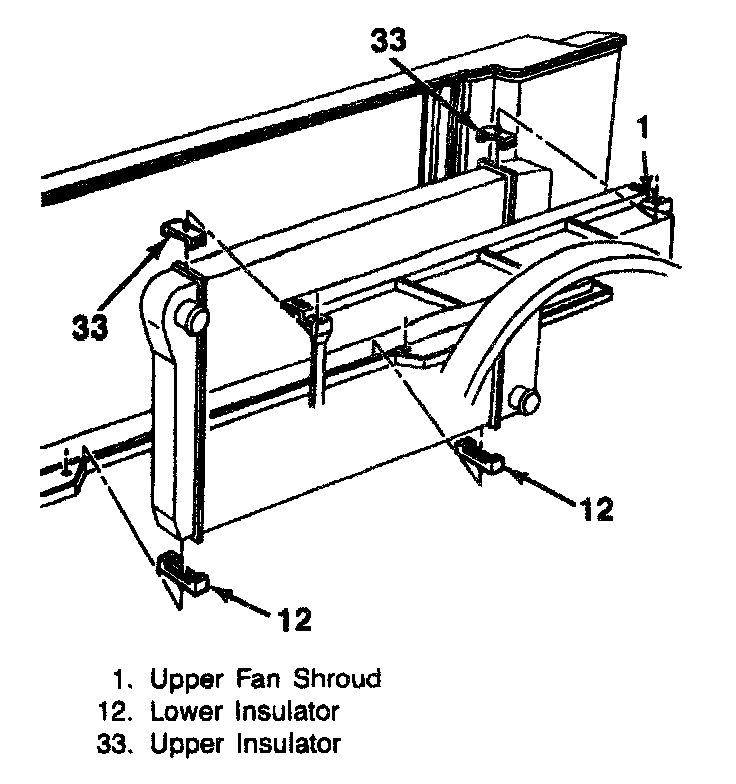

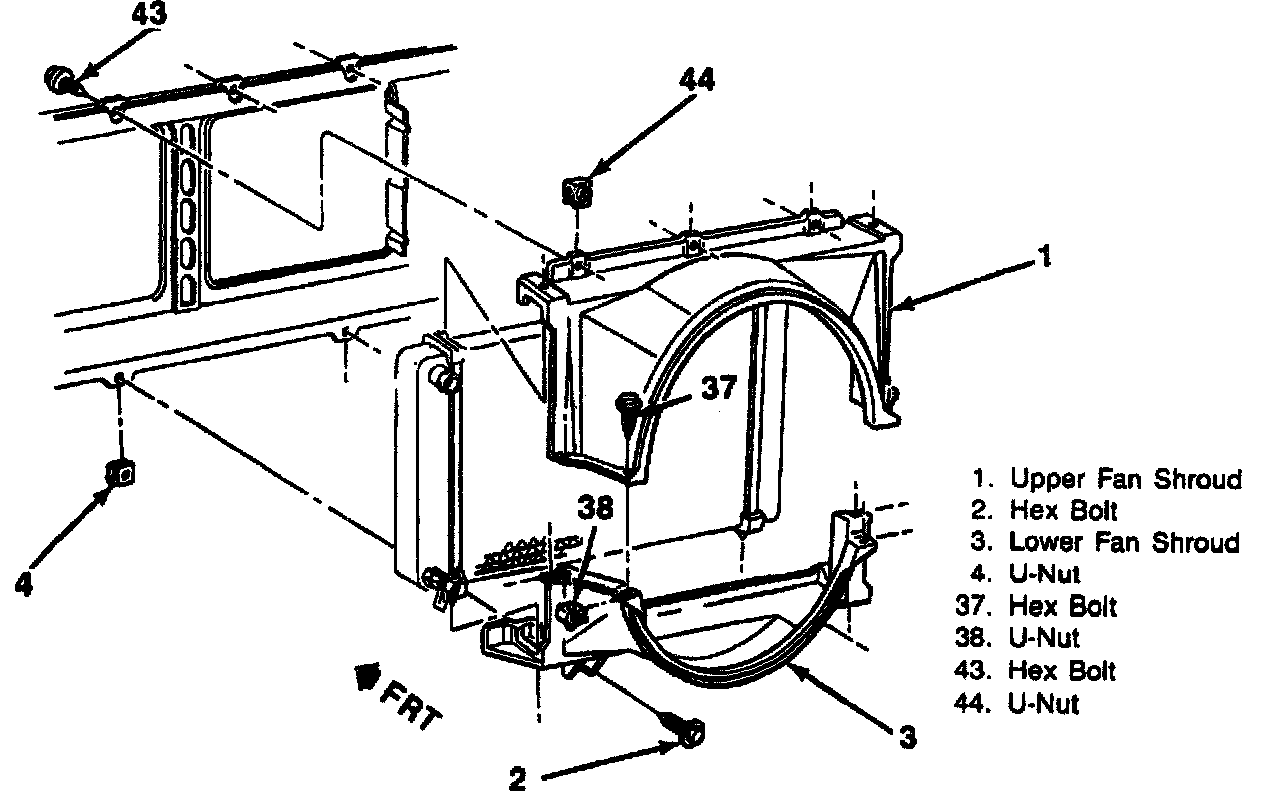

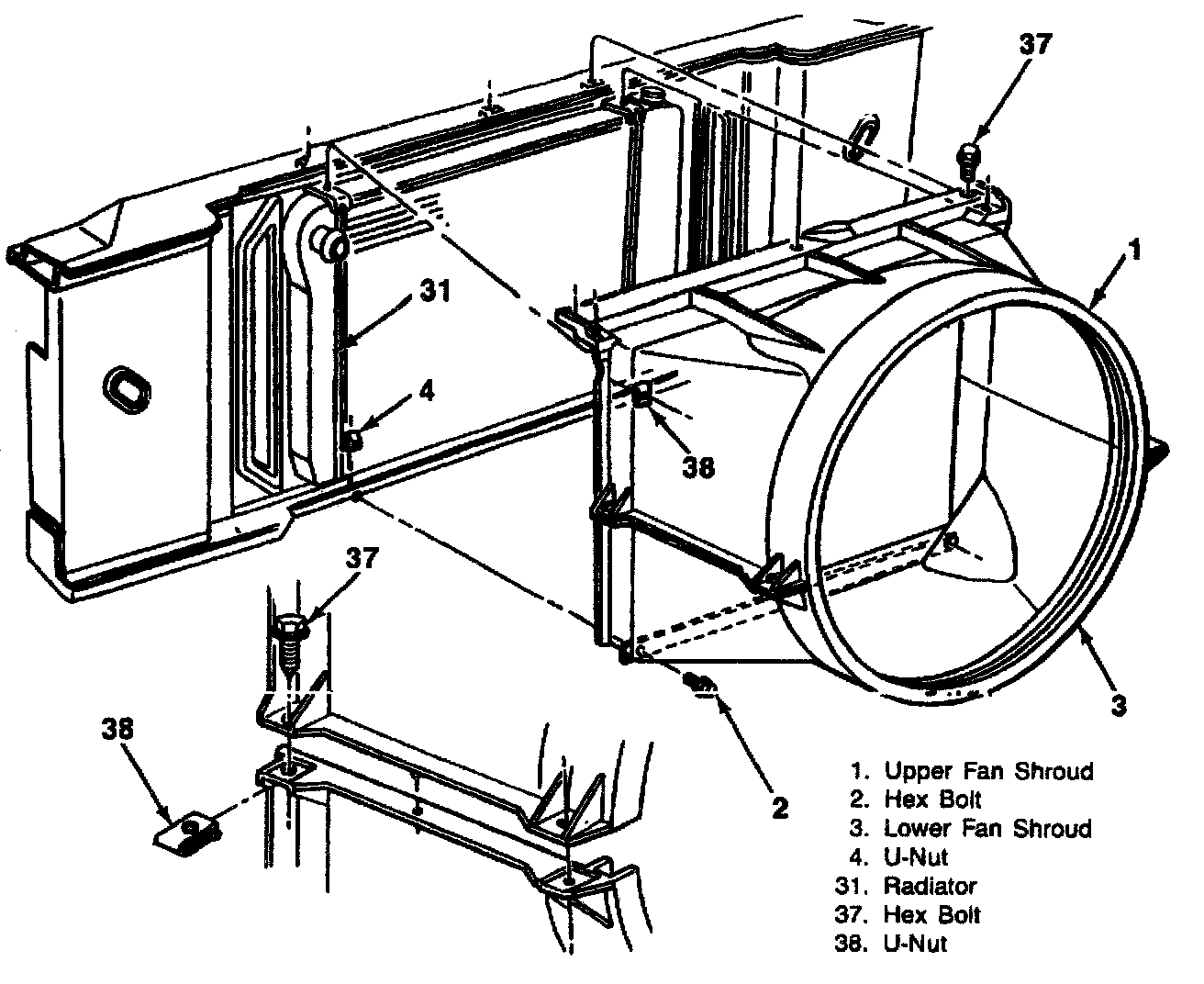

3. Upper fan shroud.
4. Hoses.

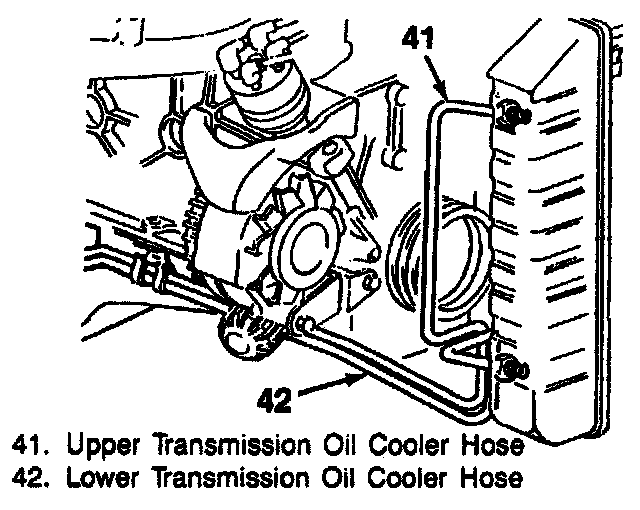

5. Transmission fluid cooler pipes.

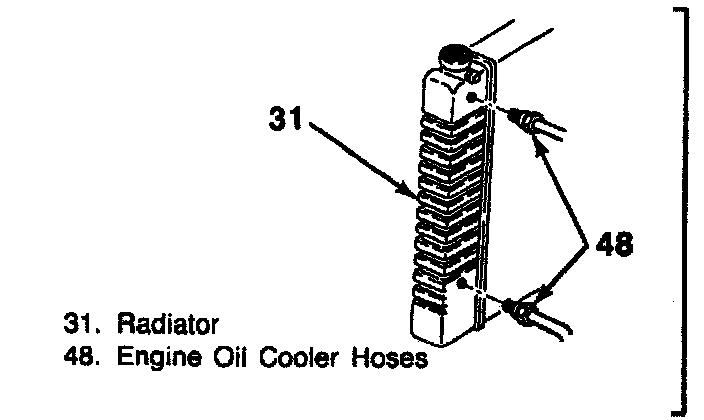

6. Engine oil cooler pipes.
7. Radiator.






Install or Connect
1. Radiator.
2. Engine oil cooler line fittings.

Tighten

Fittings to 35 N.m (25 ft. lbs.).

3. Transmission fluid cooler line fittings.

Tighten

Fittings to 27 N.m (20 ft. lbs.).

4. Hoses.
5. Upper fan shroud.
6. Coolant reservoir hose.
7. Coolant to the radiator.
