Antilock Brakes / Traction Control Systems
>>
Wiring Schematic
Wiring Schematic

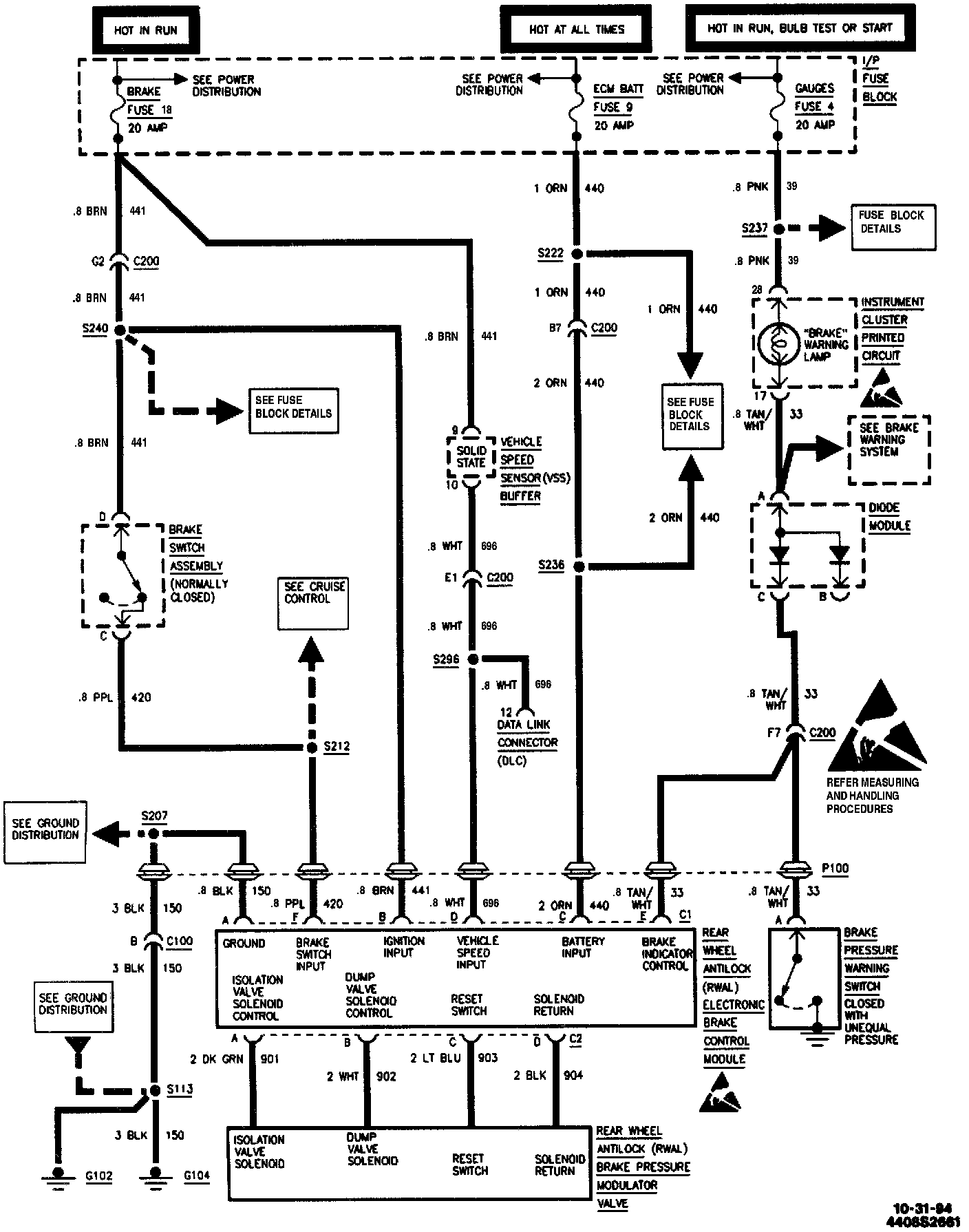

Antilock Brakes (RWAL):
