Home >> Chevy Truck >> 1995 >> S10/T10 P/U 2WD L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Components >> Motors >> Power Window Motor

Power Window Motor

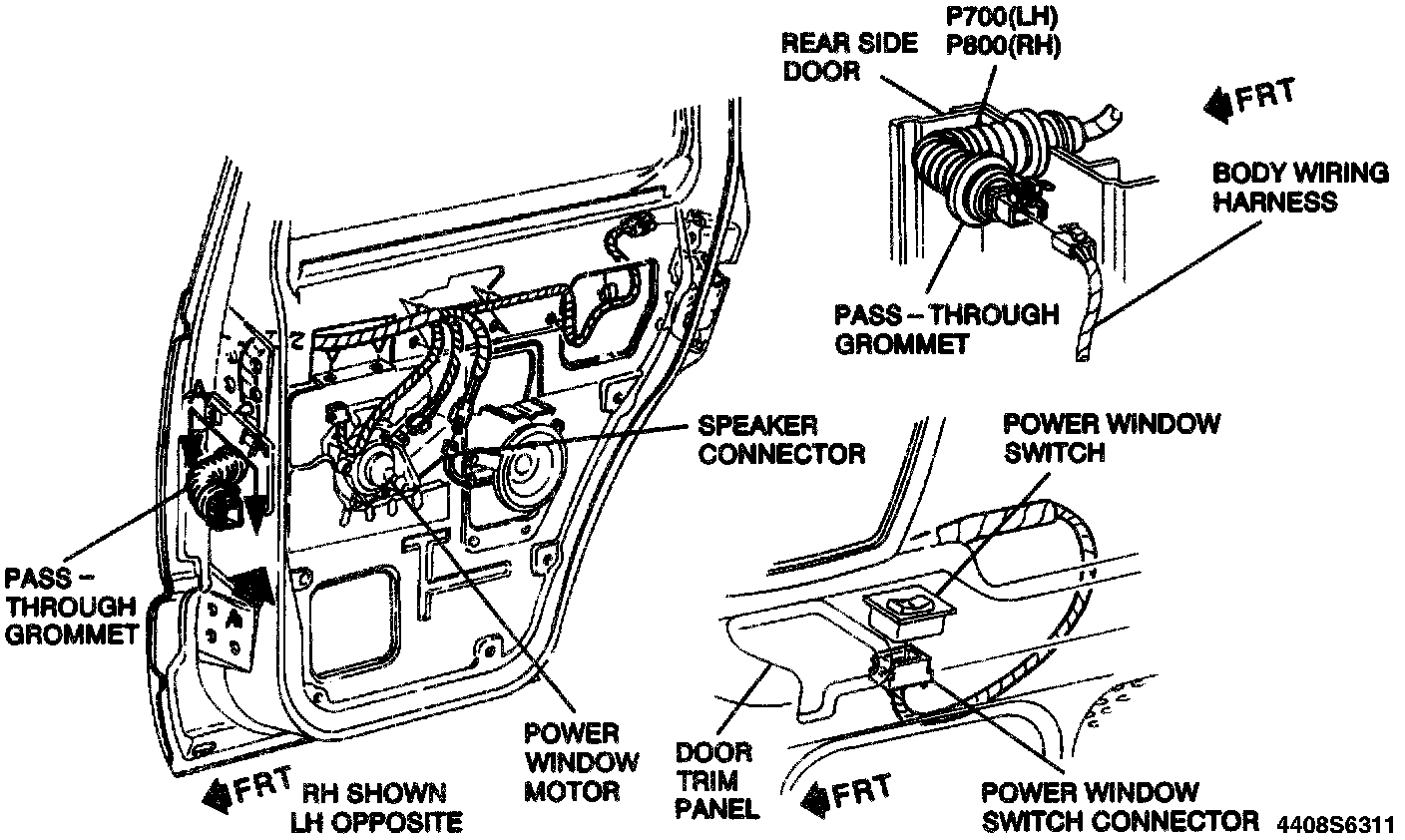

Rear Side Door Wiring Harness - Connectors To Power Windows And Speakers:
