With Scan Tool

ACCESSING ABS DIAGNOSTIC TROUBLE CODES WITH REAR WHEEL ANTILOCK BRAKE SYSTEM (RWAL)

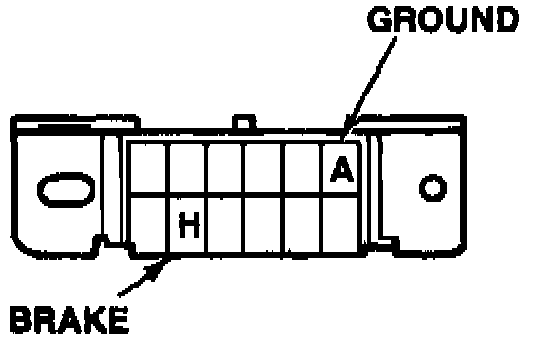

ALDL Connector Terminal Identification.:






Diagnostic trouble codes can only be accessed by connecting a TECH 1 scan tool or equivalent scan tool. If a soft diagnostic trouble code is stored, only the last diagnostic trouble code will be retained and displayed on the TECH 1.
