A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 10
DTC 10
Fig. 74 Code 10: Brake Switch Circuit (Part 1 Of 2):

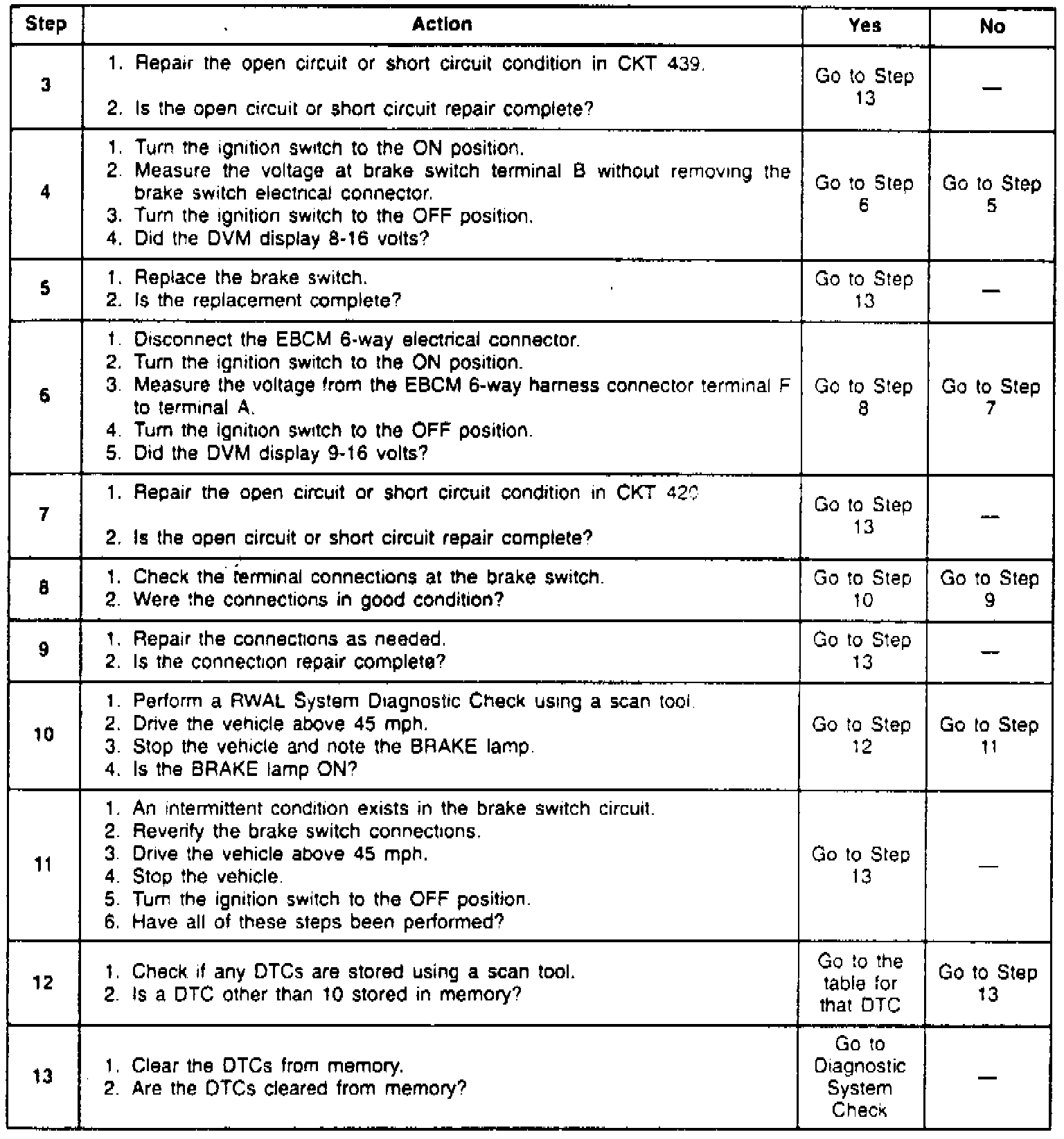

Fig. 74 Code 10: Brake Switch Circuit (Part 2 Of 2):
