Chevy Truck
>>
1995
>>
Lumina APV V6-3800 3.8L VIN L SFI
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>

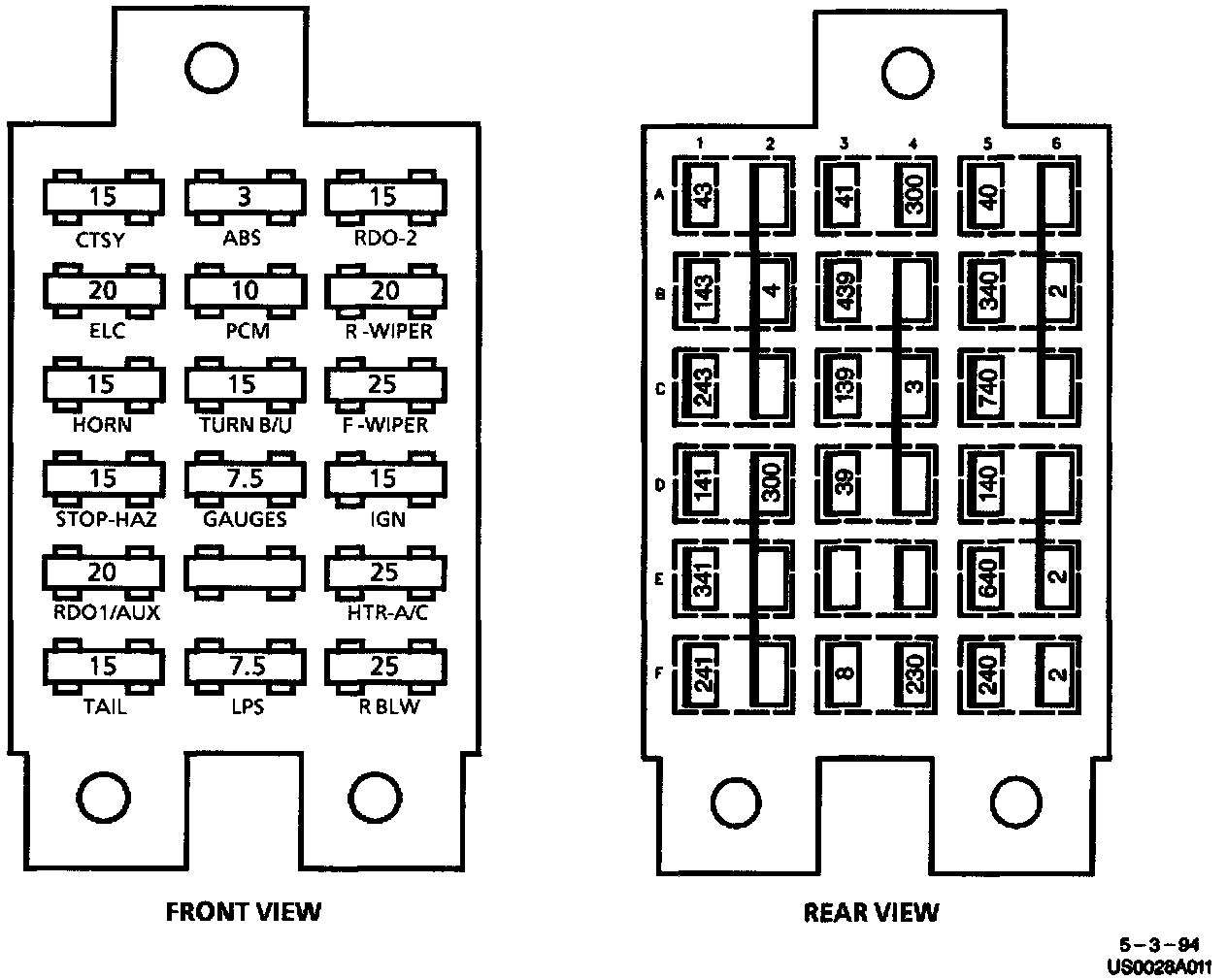

I/P Fuse Block
I/P Fuse Block

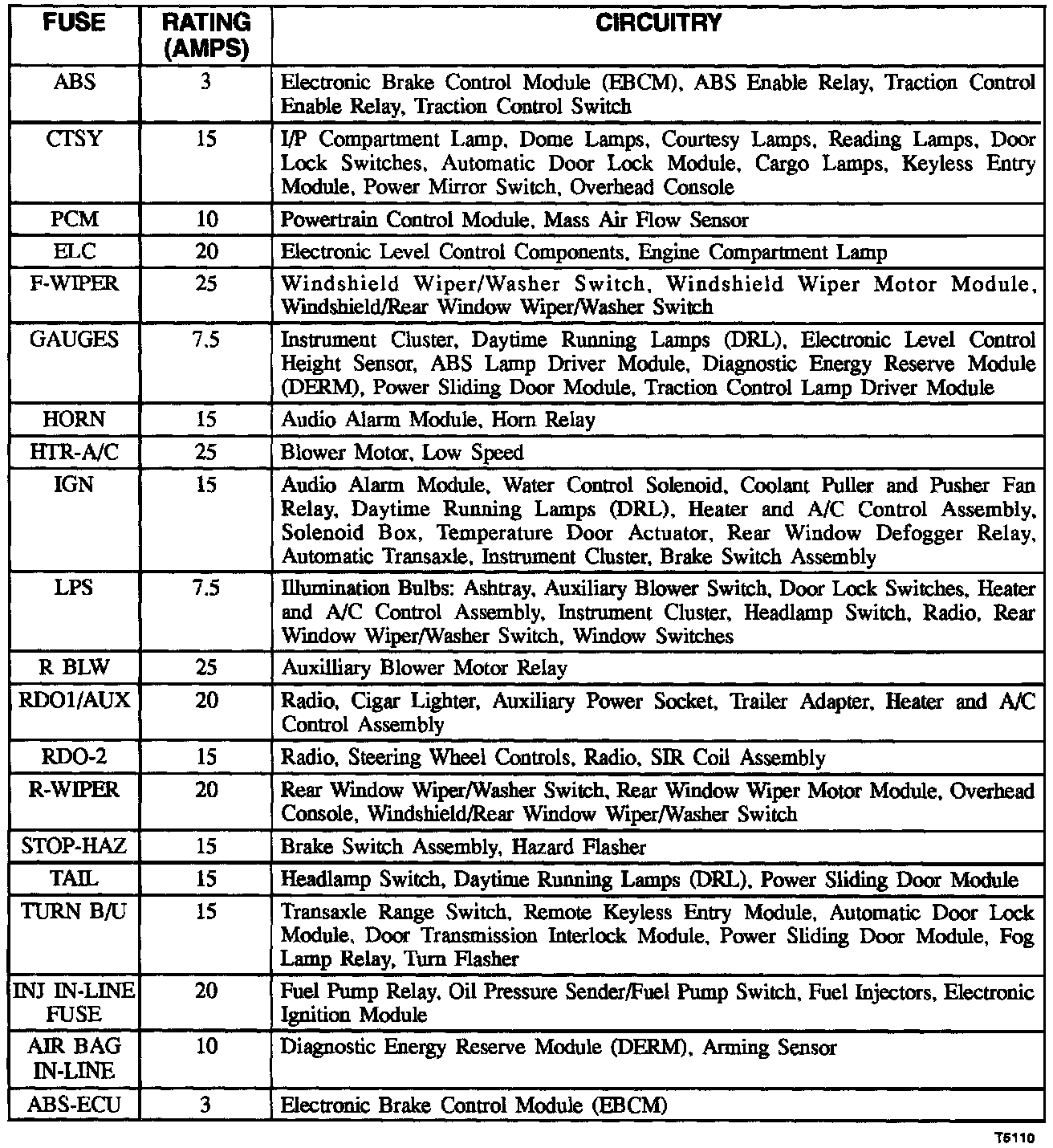

Fuse Block Details:

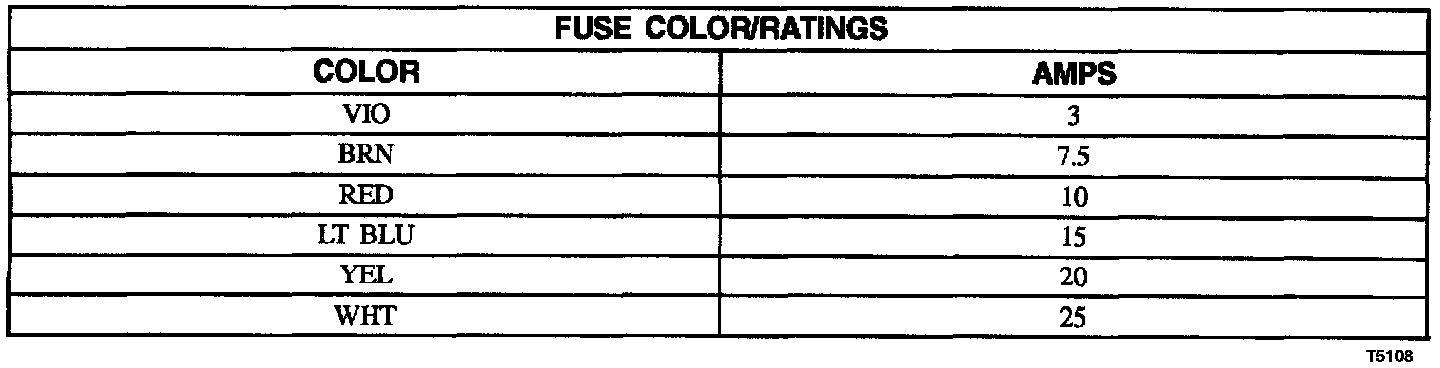

Fuse Color/Ratings (Part 1 Of 2):
Fuse Color/Ratings (Part 2 Of 2):
