Cylinder Head Bolt Torque and Sequence

Cylinder Head Bolts

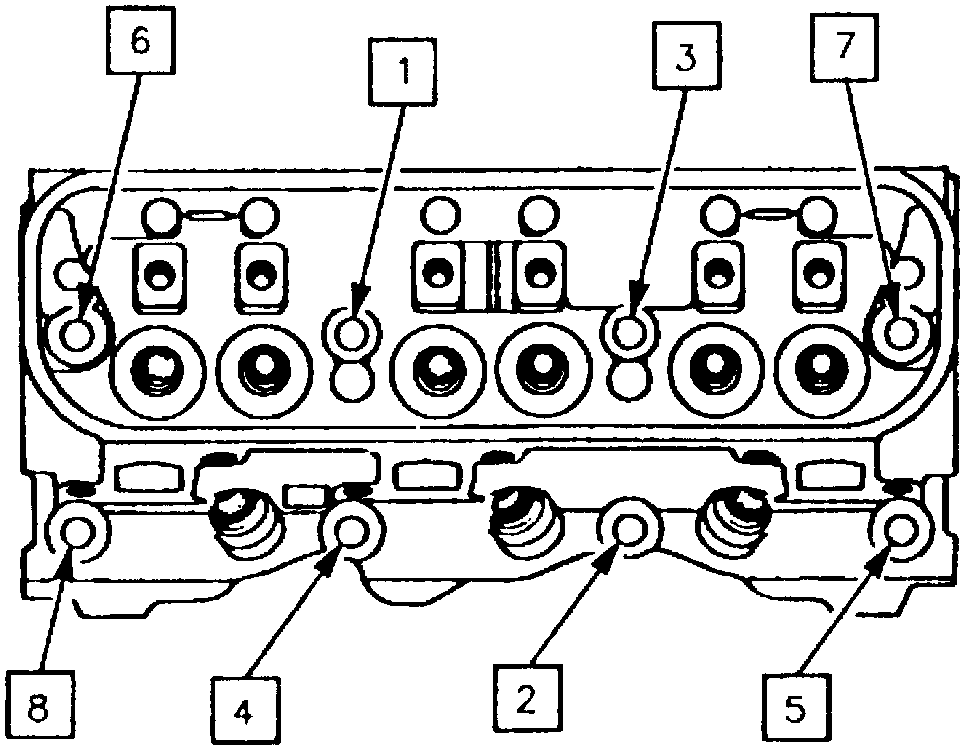

Fig. 4 Cylinder Head Tightening Sequence:

In the sequence shown (refer to figure 4):

^ Torque bolts to 35 ft. lbs.
^ Tighten bolts an additional 130°
^ Tighten center four bolts an additional 30°
