Electrical Diagrams

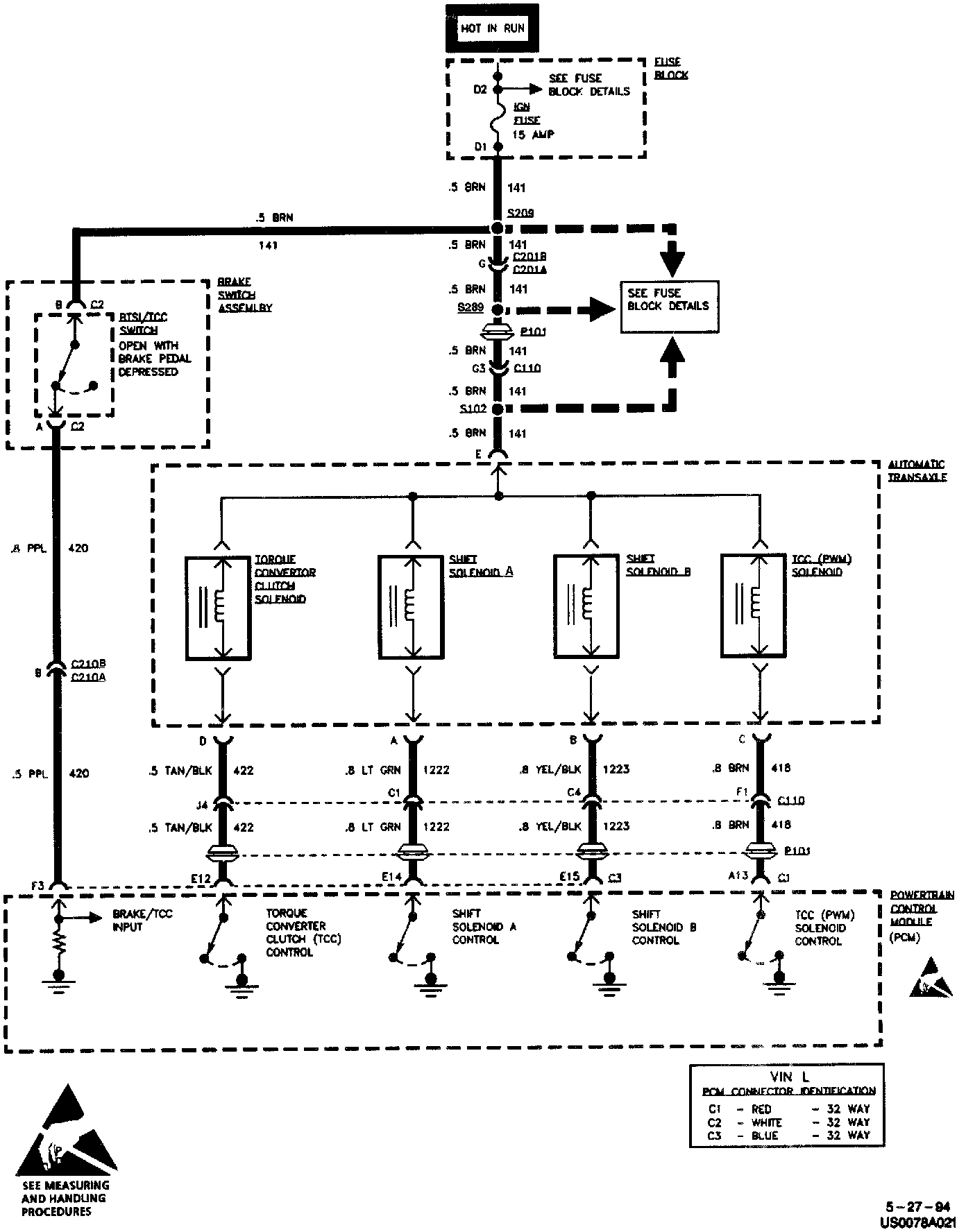

Automatic Transaxle And Generator (Part 1 Of 2):

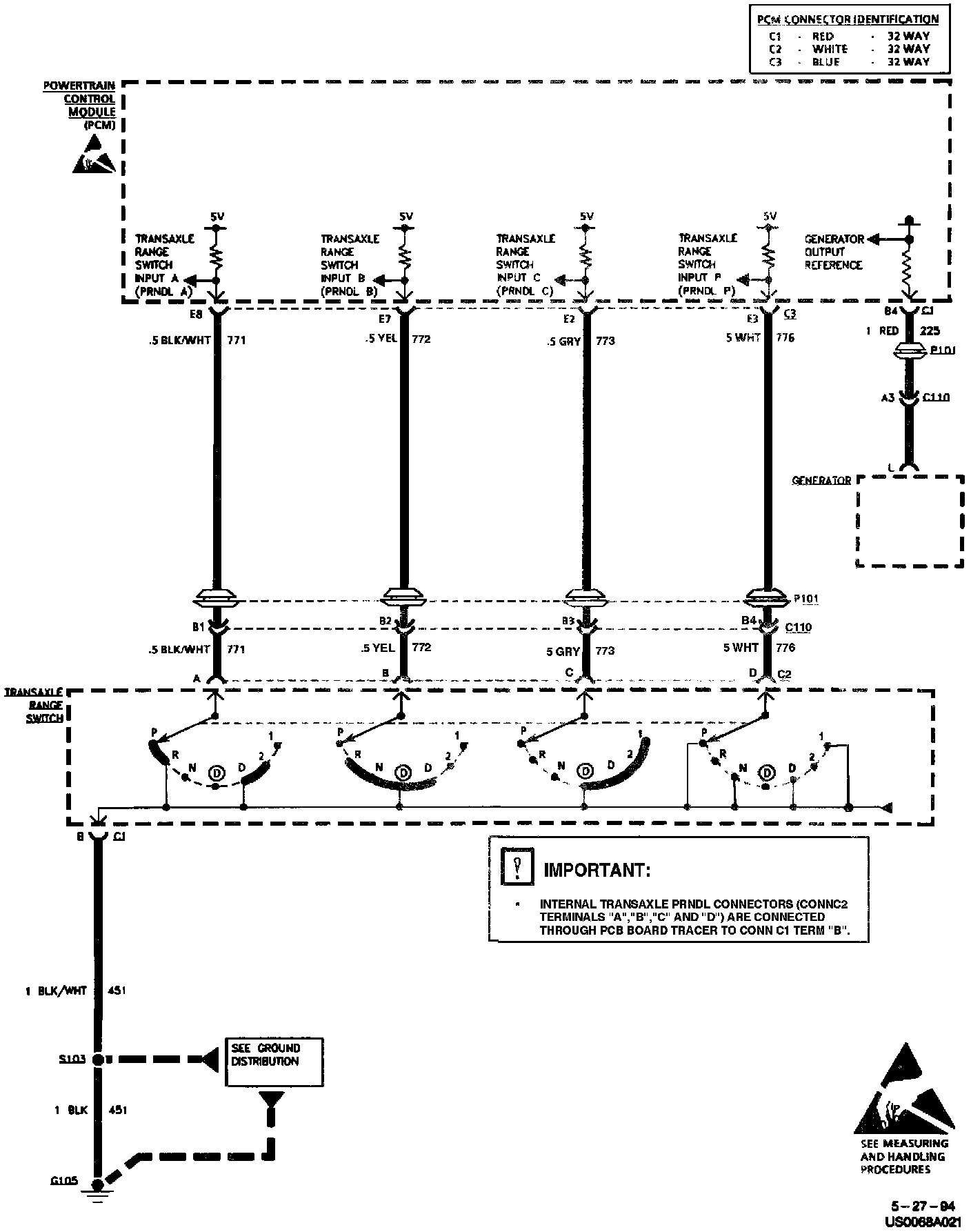

Automatic Transaxle And Generator (Part 2 Of 2):

This diagram is one part of the Complete set of Powertrain Wiring Diagrams located under Powertrain Management. Refer to this area if you need the accompanying diagram. Electrical Diagrams
