EGR Valve: Service and Repair

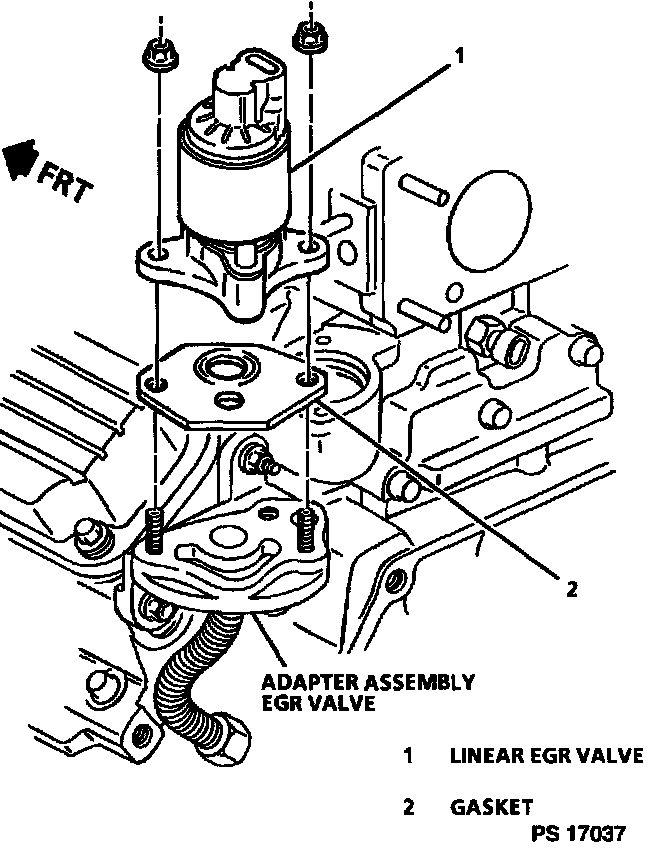

Linear EGR Valve Assembly

Linear EGR Valve:

REMOVE OR DISCONNECT

1. Electrical connector at solenoid.
2. Two base to flange nuts and linear EGR valve assembly.

INSTALL OR CONNECT

1. Linear EGR valve assembly - two nuts, tighten to 30 Nm (22 lb. ft.).
2. Electrical connector.
