Piston & Rod Assembly

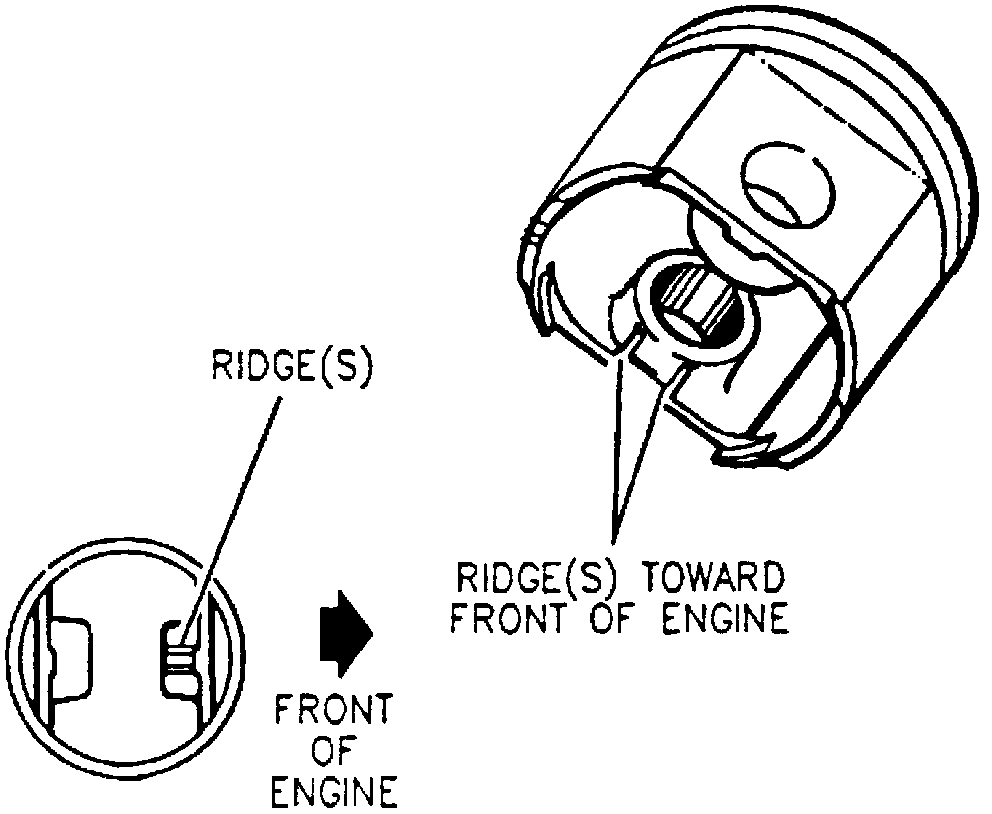

Fig. 14 Piston Installation Direction:

Pistons should be installed as shown in Fig. 14. After piston and rod installation, measure connecting rod side clearance. Side clearance should be 0.003-0.015 inch.
