Home >> Chevy Truck >> 1995 >> Lumina APV V6-3800 3.8L VIN L SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> With A/C >> Compressor Controls

Compressor Controls

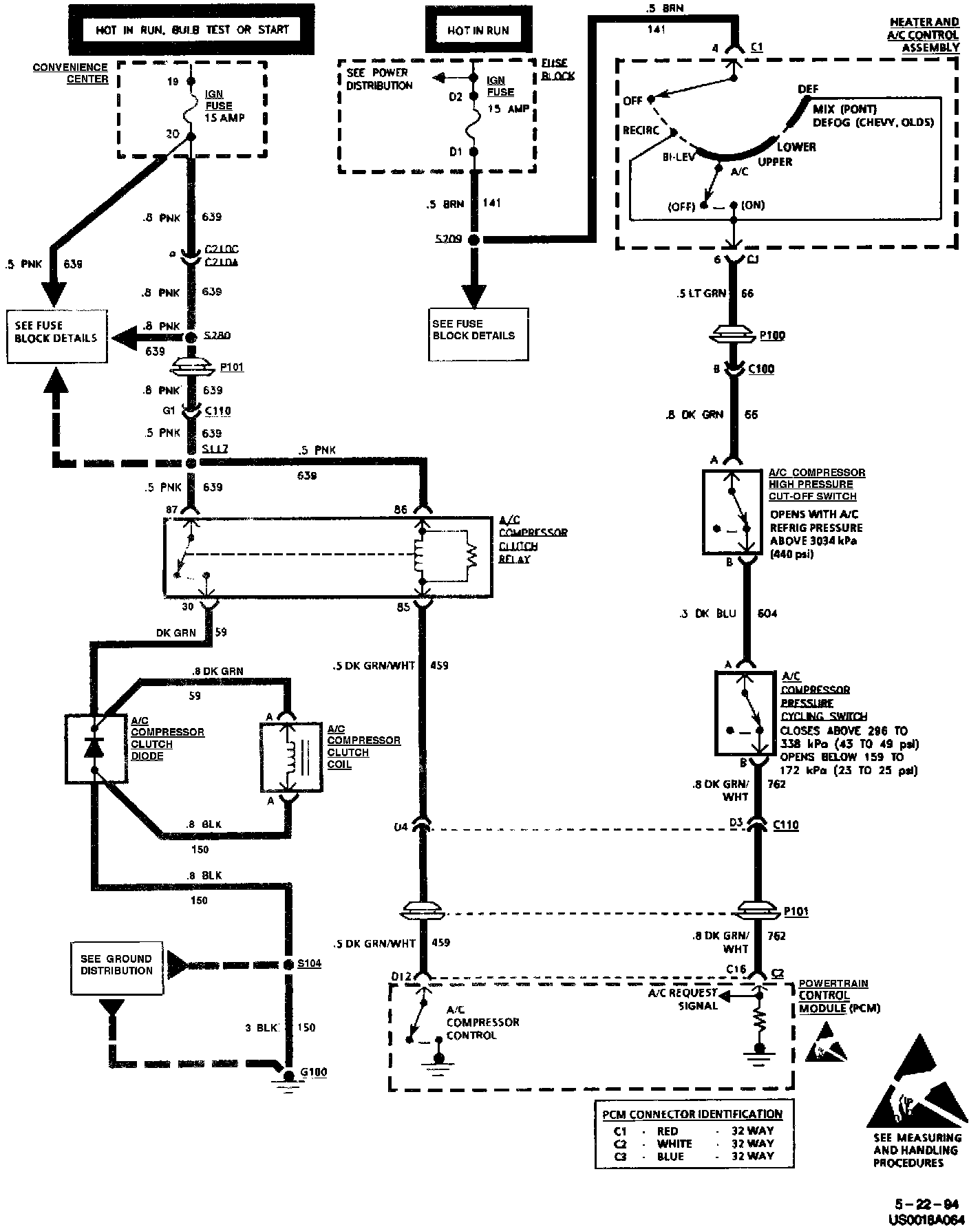

HVAC Compressor Control (C67 & C34):
