Chevy Truck
>>
1995
>>
Lumina APV V6-3800 3.8L VIN L SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Passive Keyless Entry Circuit/Security System (PKE/SS)
>>

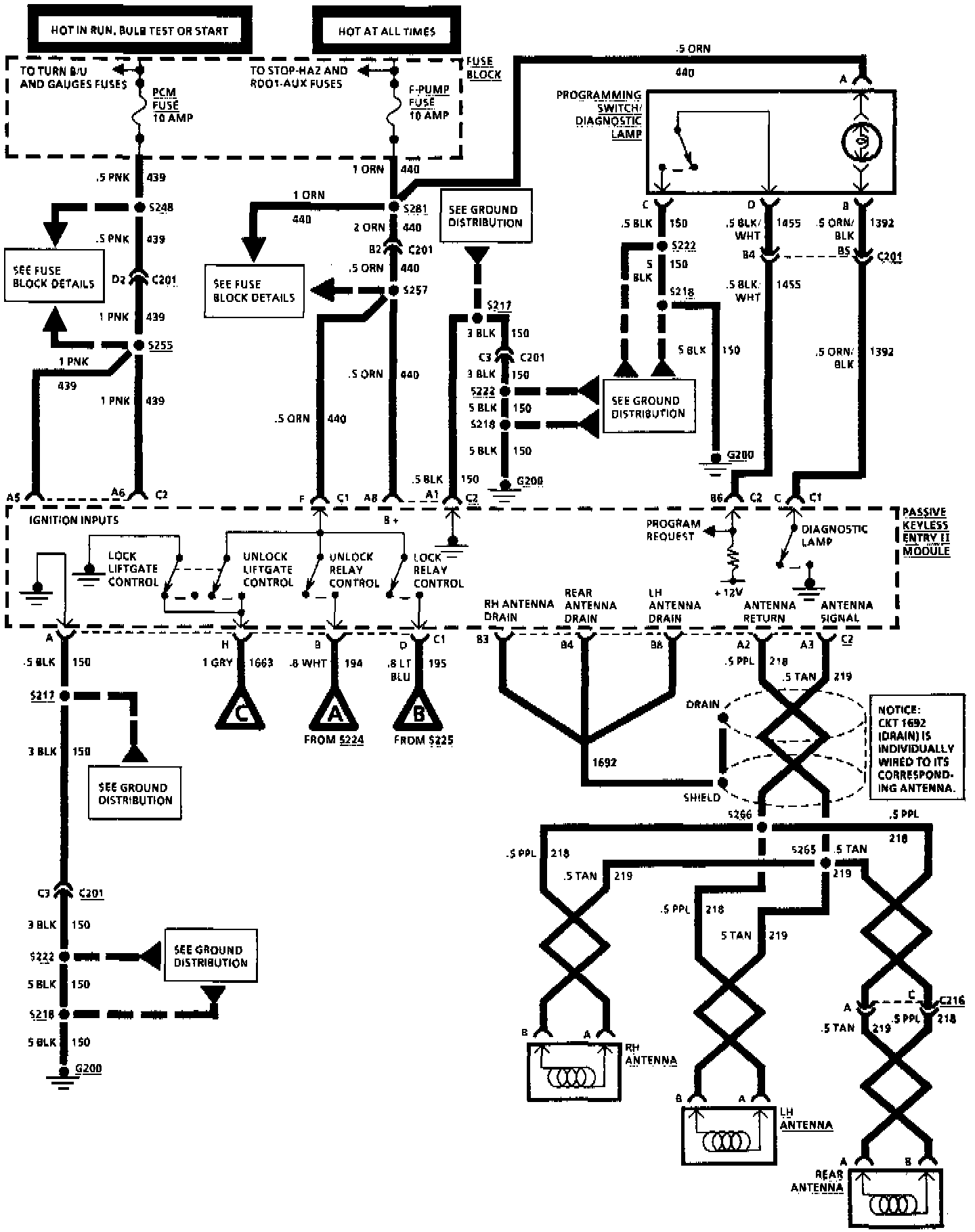

Pass Key Module, Antenna, Programming Switch, Power Supply
Pass Key Module, Antenna, Programming Switch, Power Supply
