Chevy Truck
>>
1995
>>
Lumina APV V6-3800 3.8L VIN L SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
System Diagram

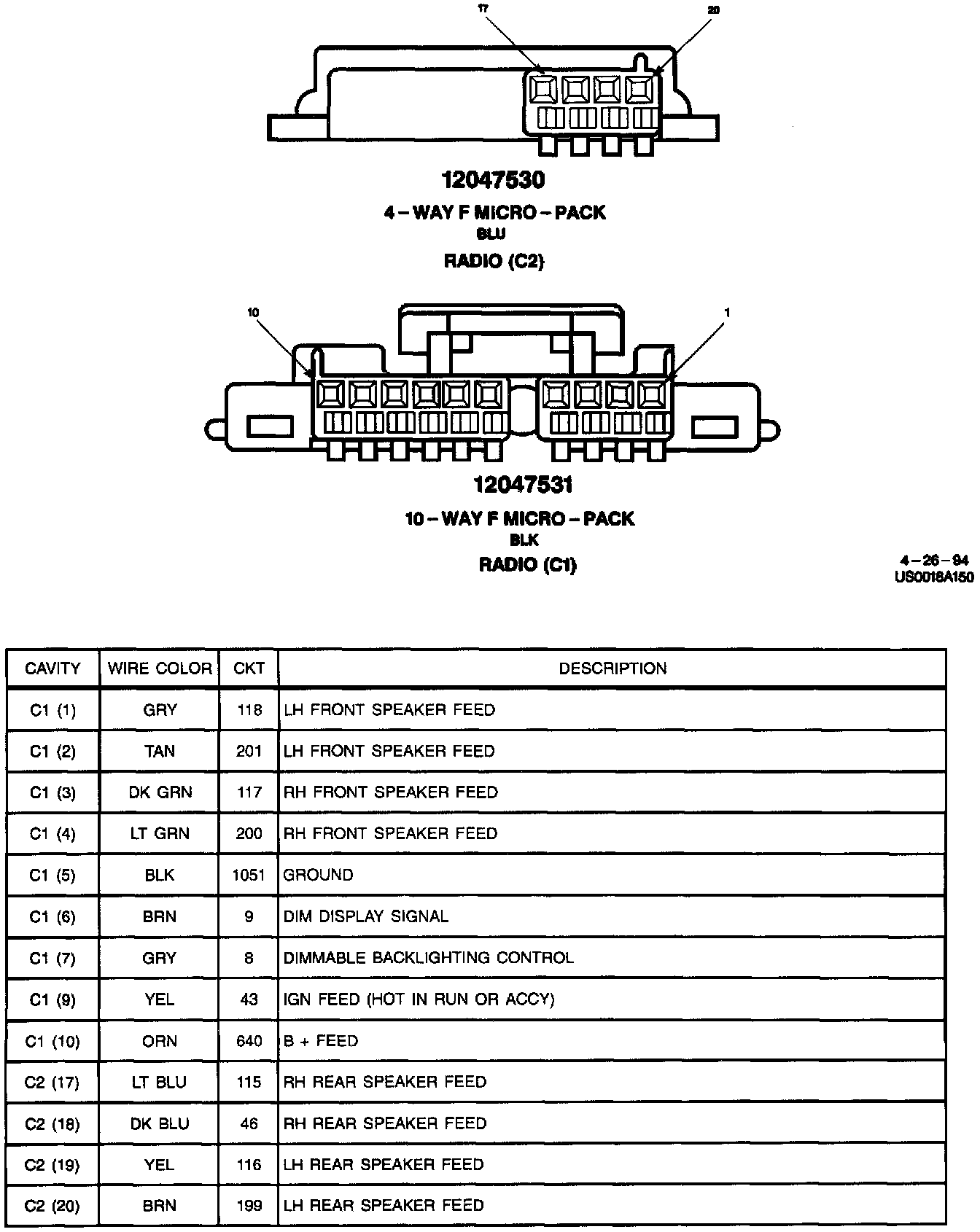

Radio: C1 And C2:

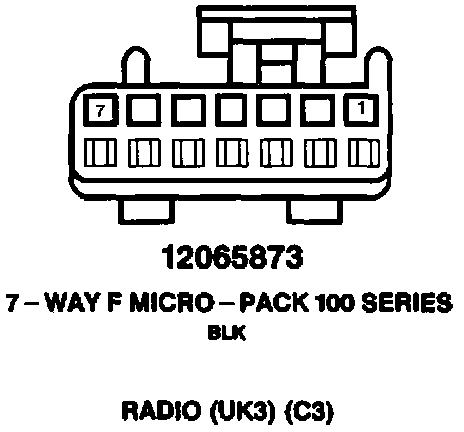

Radio (UK3) (C3):

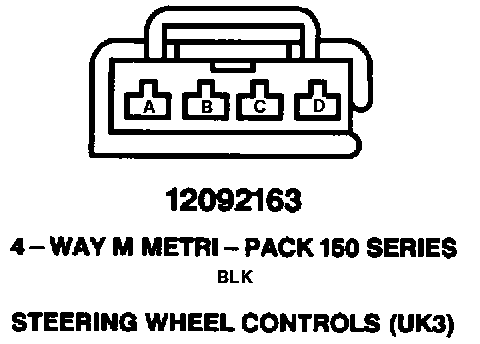

Steering Wheel Controls (UK3):
