Engine Control Module
>>
Specifications
>>
Engine Control Module - ECM
>>

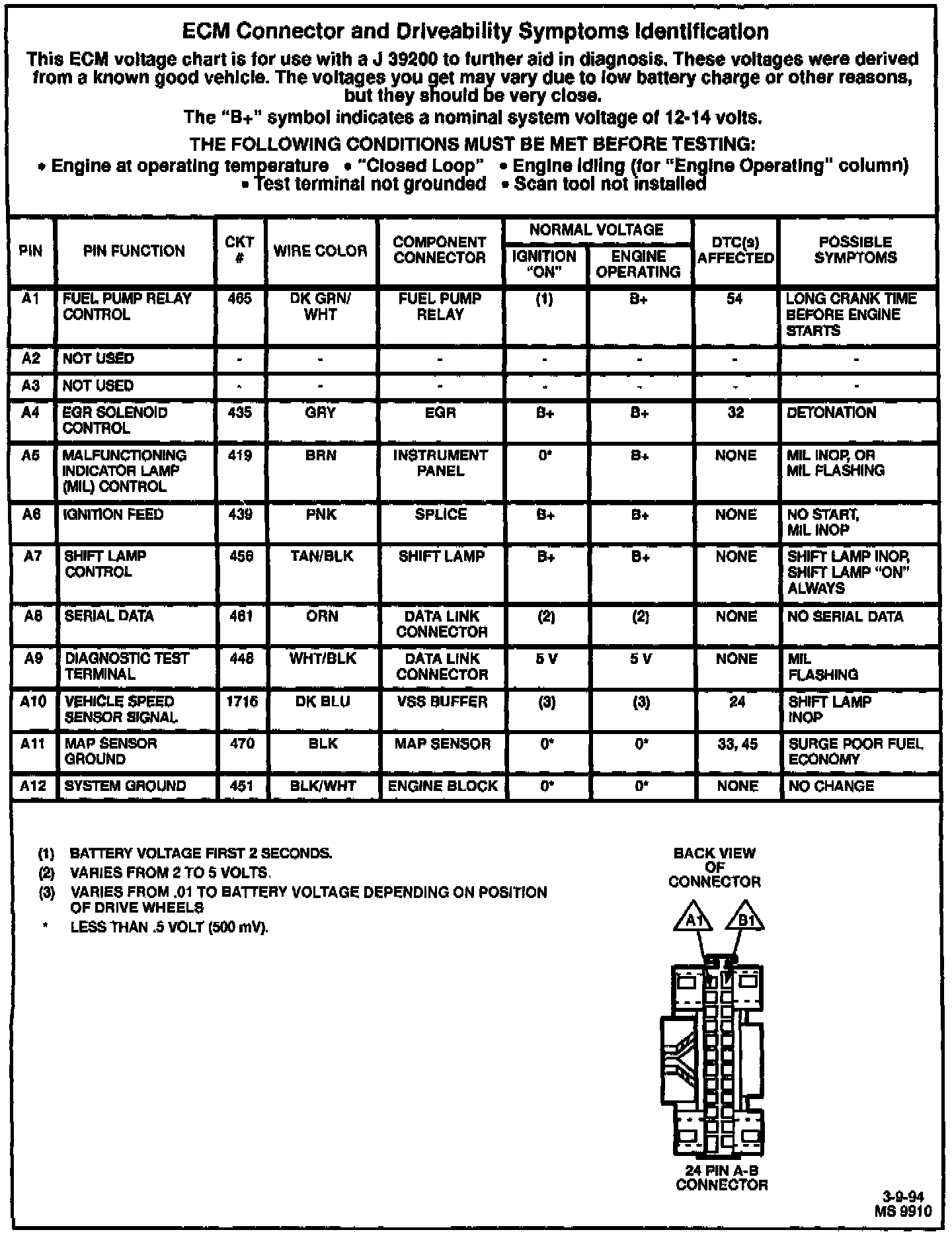

24 Pin A-B Connector

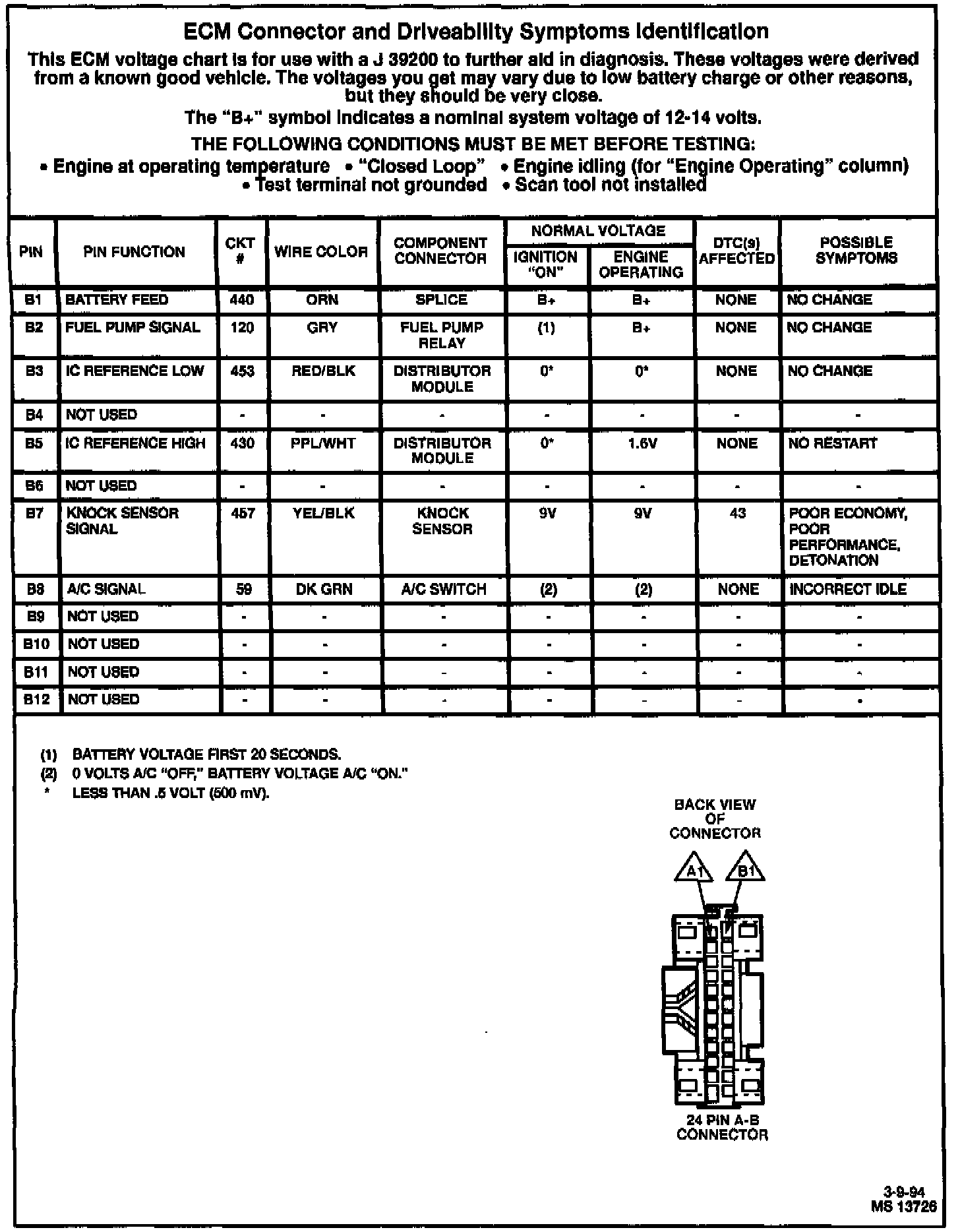

24 Pin A-B Connector
ECM Pin-Out Chart:
ECM Pin-Out Chart:
