Cruise Control - Revised Schematic & Diagnostics

File In Section: 8 - Chassis/Body Electrical

Bulletin No.: 66-81-25

Date: December, 1996

SERVICE MANUAL UPDATE

Subject:
Section 8A-34 - Cruise Control - Revised Schematic and Diagnostic Procedures

Models:
1995 Chevrolet and GMC G Models

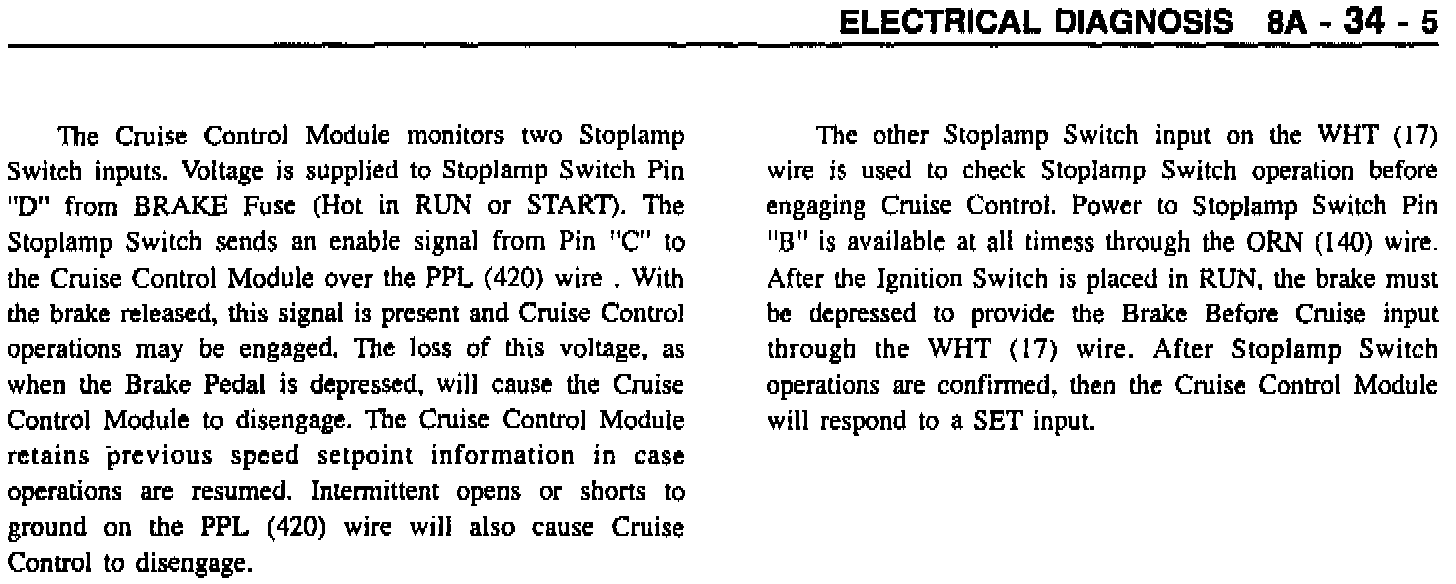

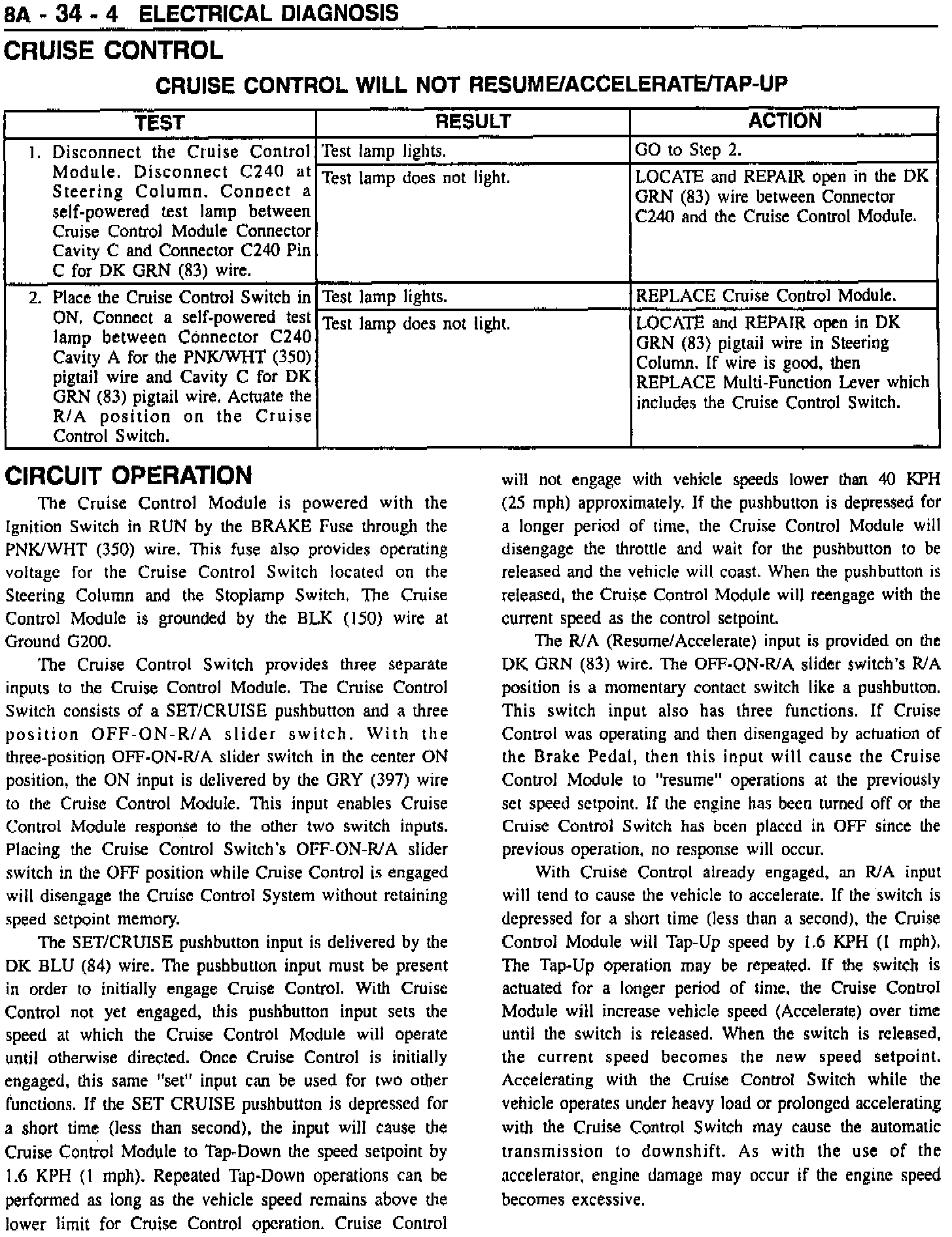

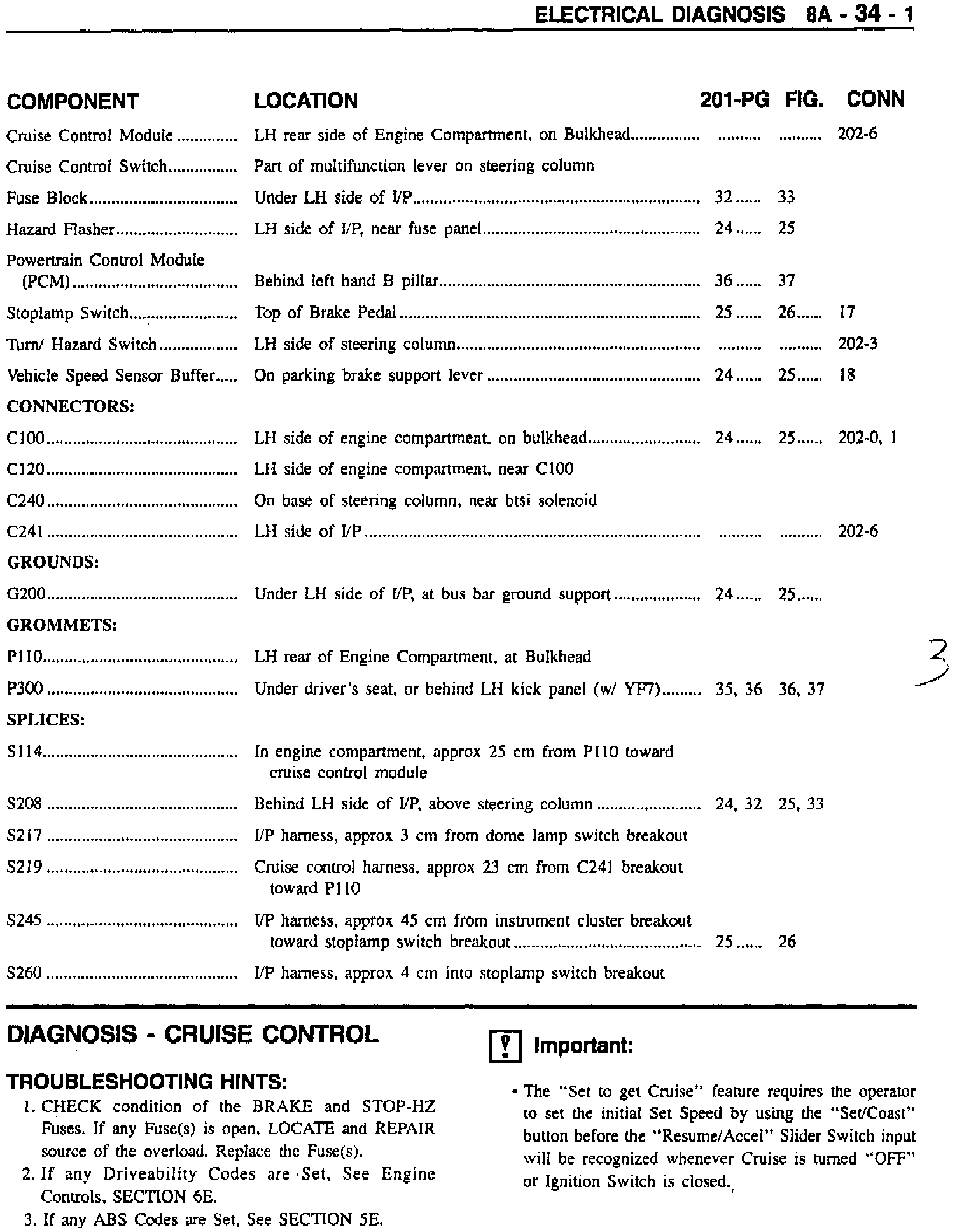

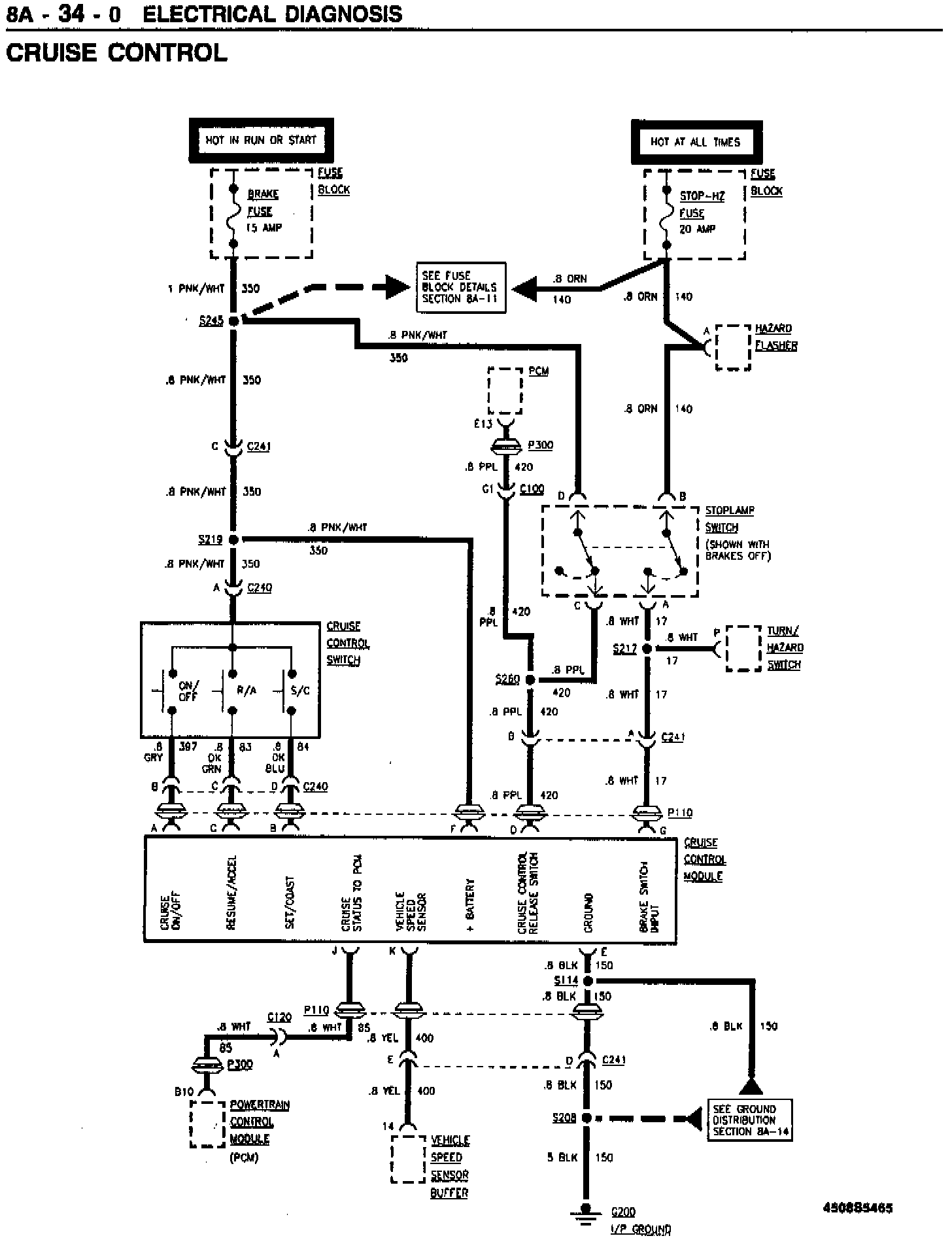

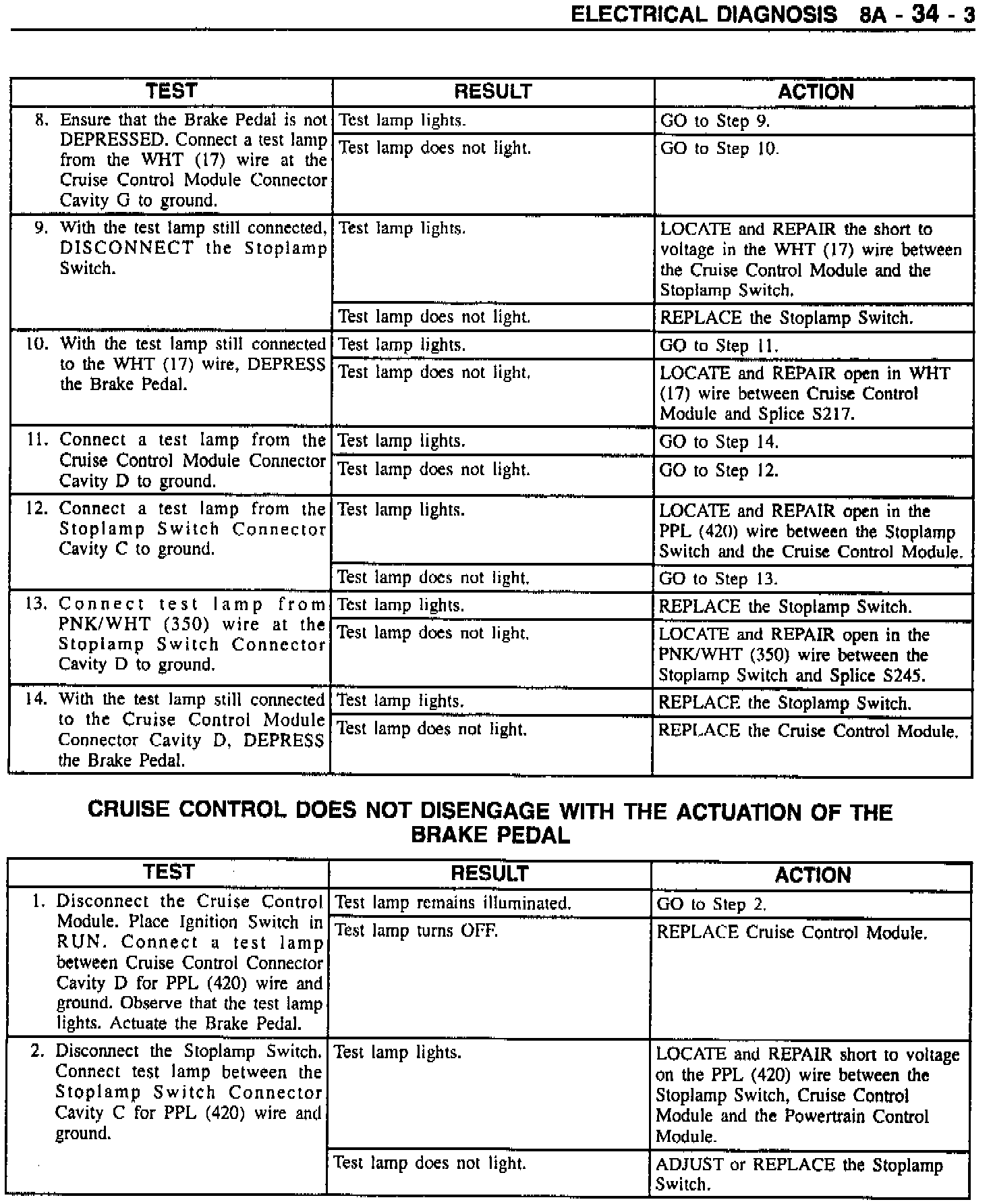

This bulletin revises the schematic on Page 8A-34-0 and will replace the diagnostic procedures 8A-34-1 thru 8A-34-5 for the 1995 G Van Service Manual.
