G 30 Van V8-393 6.5L DSL VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Cylinder Block Assembly
Cylinder Block Assembly

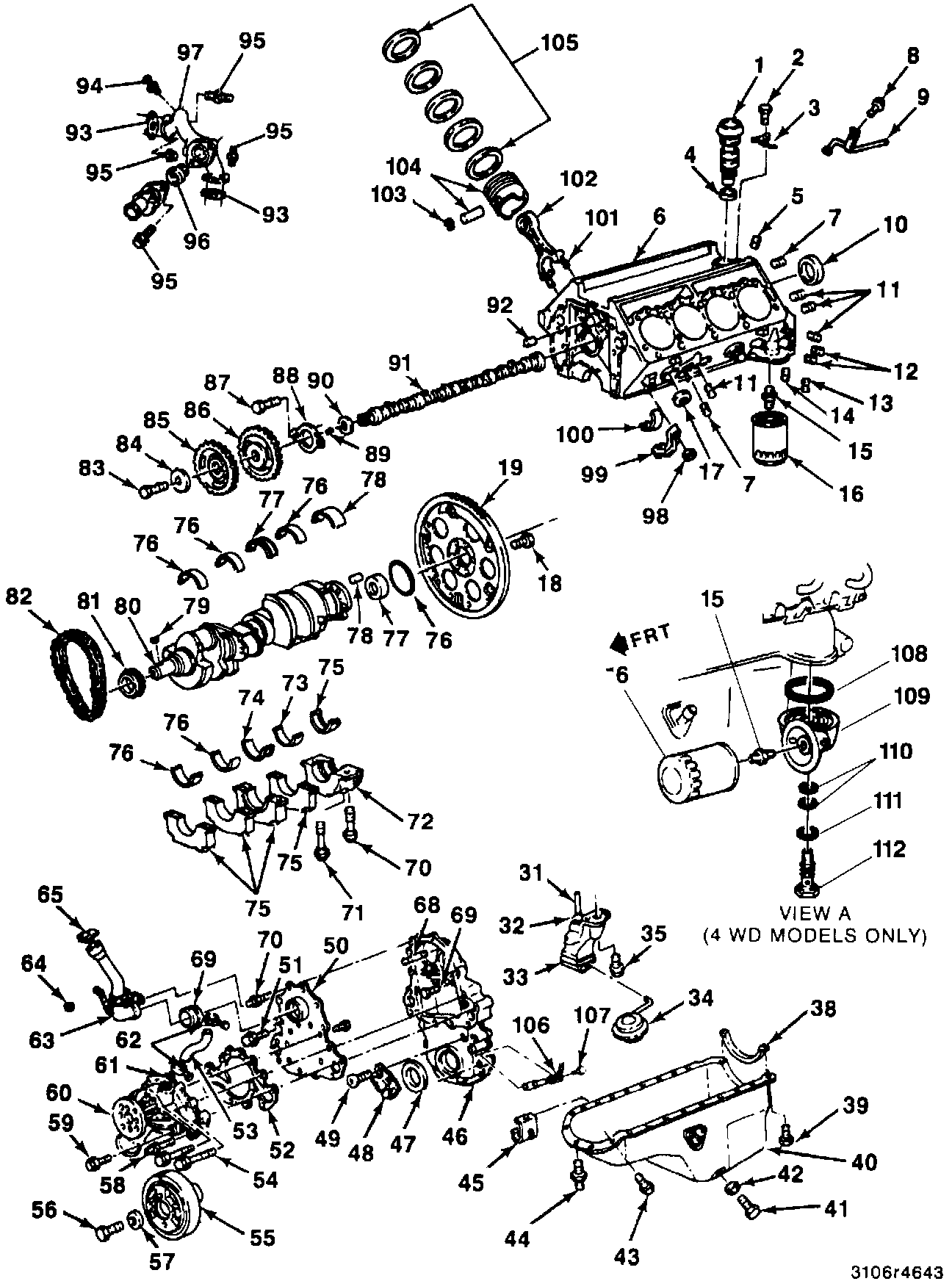

Cylinder Block And Components:

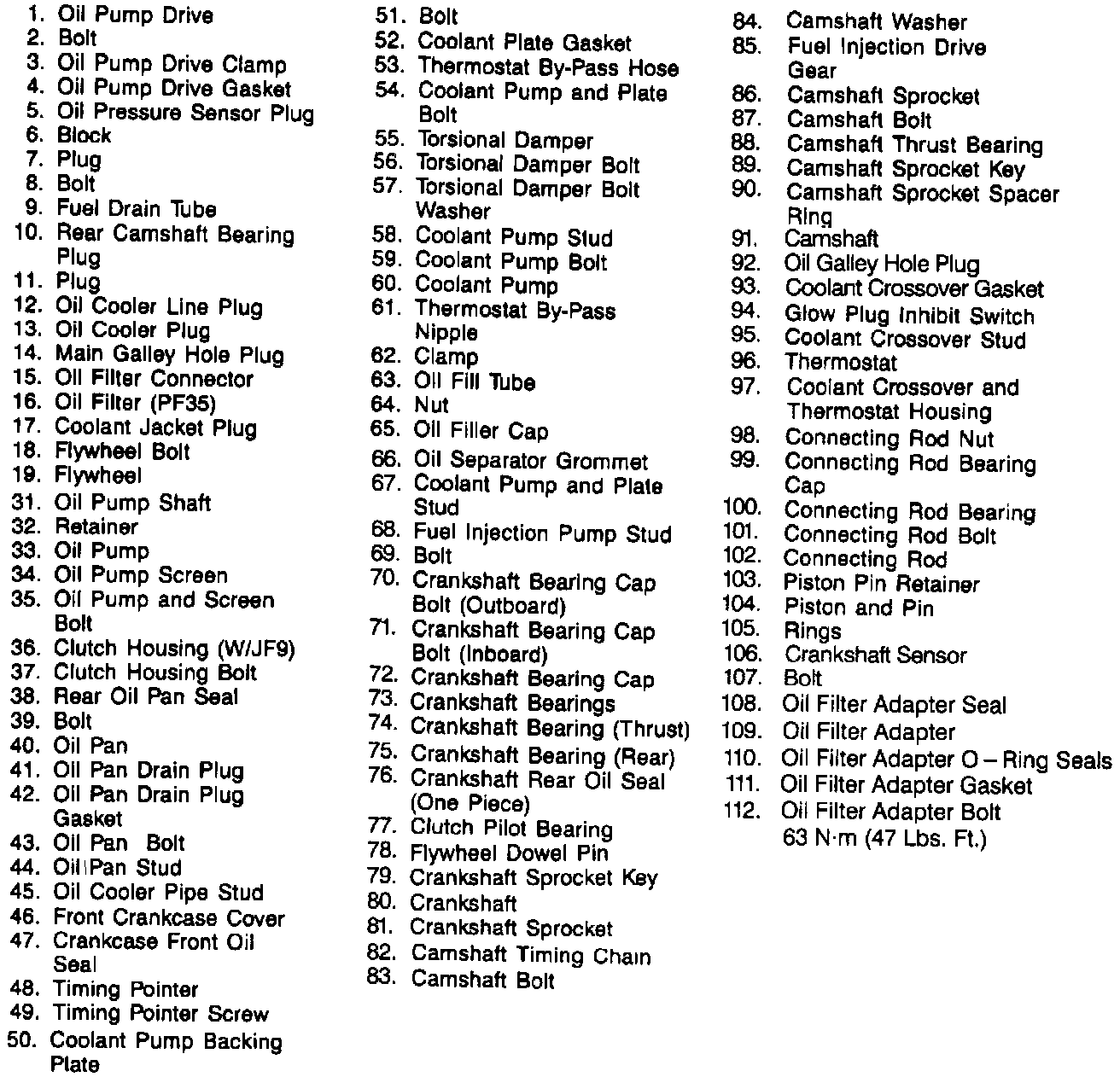

Cylinder Block And Components - Legends:
