Chevy Truck
>>
1995
>>
G 30 Van V8-393 6.5L DSL VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Vehicle Speed Sensor Signal Buffer

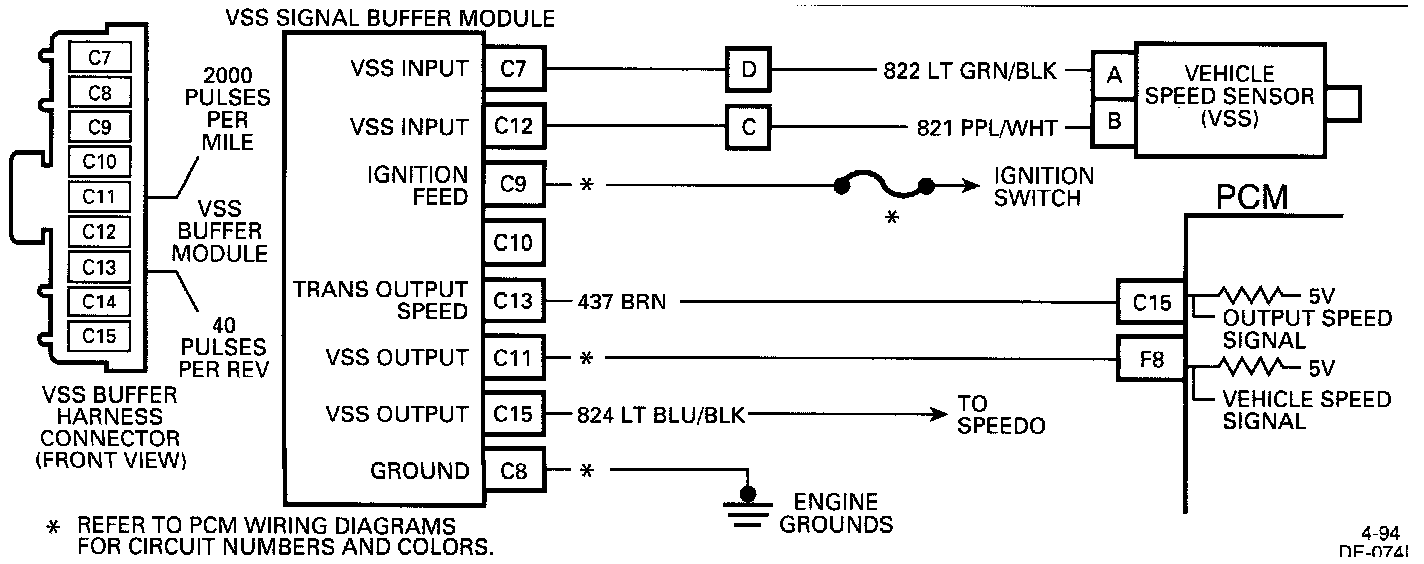

Vehicle Speed Sensor Signal Buffer
Vehicle Speed Signal:

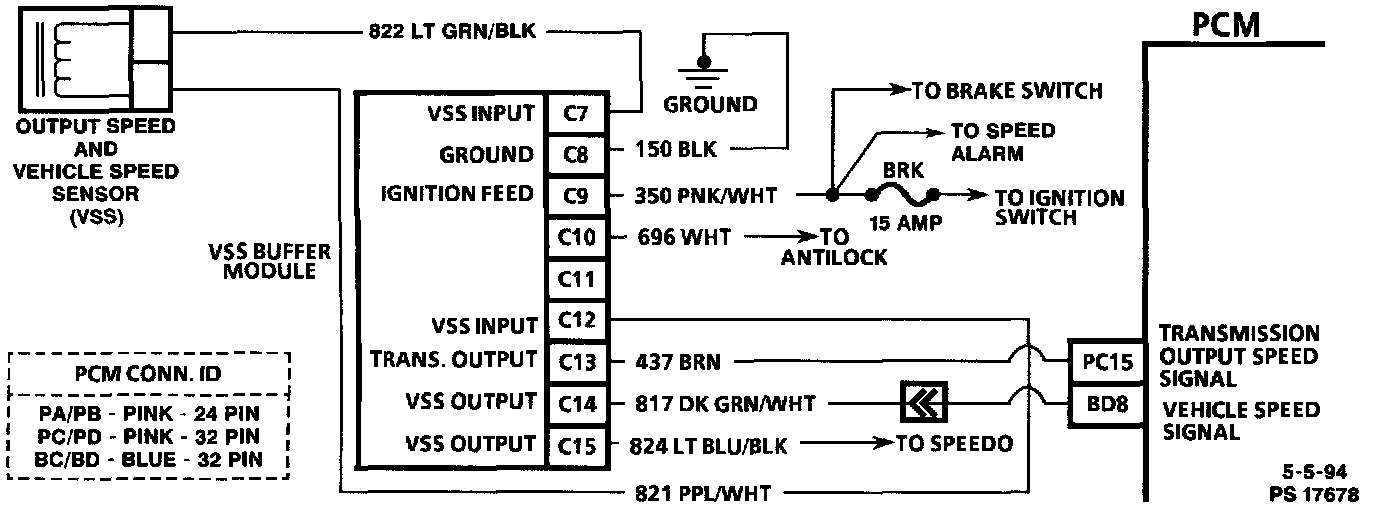

Vehicle Speed Sensor (VSS) Circuit:
