G 20 Van V8-393 6.5L DSL VIN Y
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Transmission Position Sensor/Switch
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

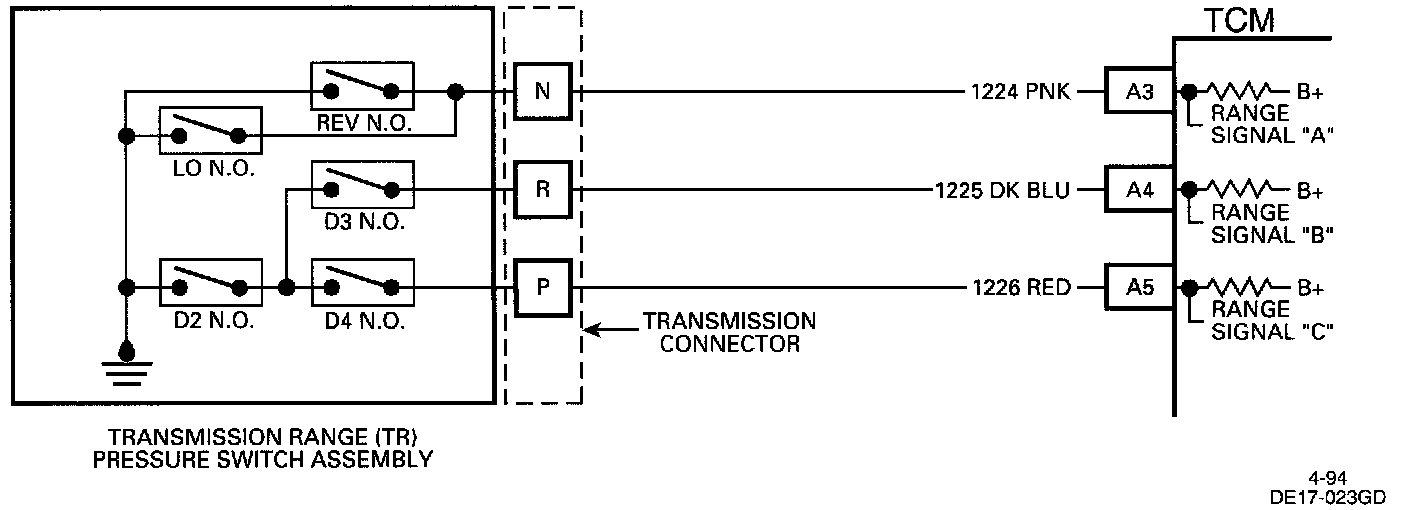

Transmission Range (TR) Pressure Switch:
