Radiator: Service and Repair

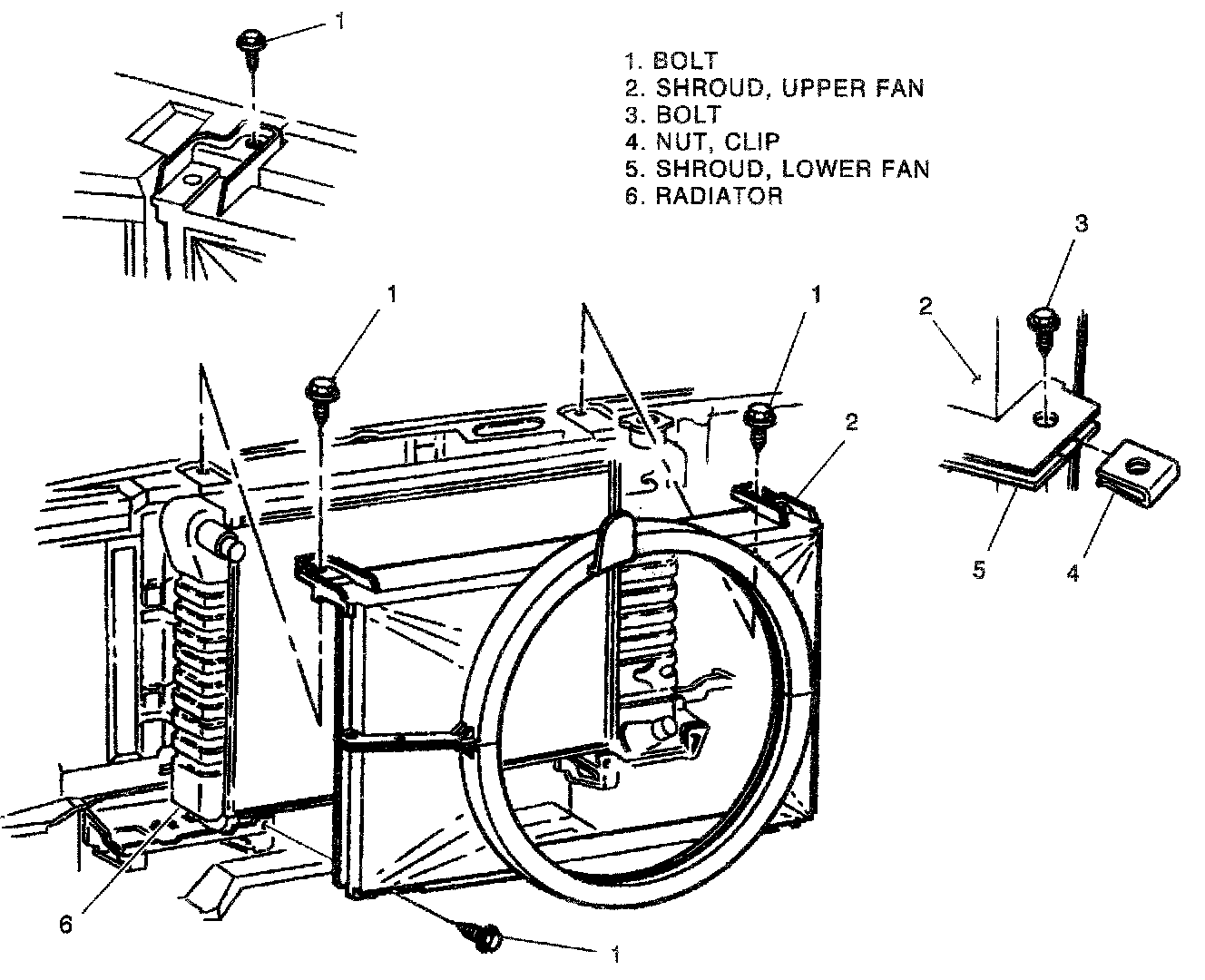

RADIATOR REPLACEMENTThe type of radiator core mounting varies according to model and engine type. The radiator assembly includes a shroud, and may include an oil cooler in the core. Some models have a separate power steering oil cooler attached in front of the radiator core. On models so equipped it may be necessary to remove the oil cooler to facilitate removal of the radiator core.
INSTALL OR CONNECT
^ Drain coolant from radiator.
1. Air intake snorkel.
2. Windshield washer reservoir.
3. Hood release cable.
4. Upper fan shroud.
5. Upper radiator hose from the radiator.
6. Transmission cooler lines from the radiator.
7. Low coolant sensor.
8. Overflow hose from radiator.
9. Engine oil cooler lines from the radiator.
^ Raise the vehicle.
10. Lower radiator hose from radiator.
^ Lower the vehicle.
11. Master cylinder from brake booster. Service and Repair
INSTALL OR CONNECT
1. Radiator into the vehicle.
2. Master cylinder to the brake booster.
^ Raise the vehicle.
3. Lower radiator hose to the radiator.
^ Lower the vehicle.
4. Engine oil cooler lines to the radiator.
5. Overflow hose to the radiator.
6. Low coolant sensor.
7. Transmission cooler lines to the radiator.
8. Upper radiator hose to the radiator.
9. Upper fan shroud.
10. Hood release cable.
11. Windshield washer reservoir.
11. Air intake snorkel.
12. Coolant to the radiator.
^ Remove the radiator cap start engine and allow to run until upper radiator hose becomes hot (thermostat is open).
^ Add coolant with engine idling until coolant level reaches bottom of filler neck.
14. Radiator cap. Ensure arrows are inline with overflow tube.
^ Inspect for leaks.
