Home
>>
Chevy Truck
>>
1995
>>
G 10 Van V6-262 4.3L VIN Z TBI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
>>

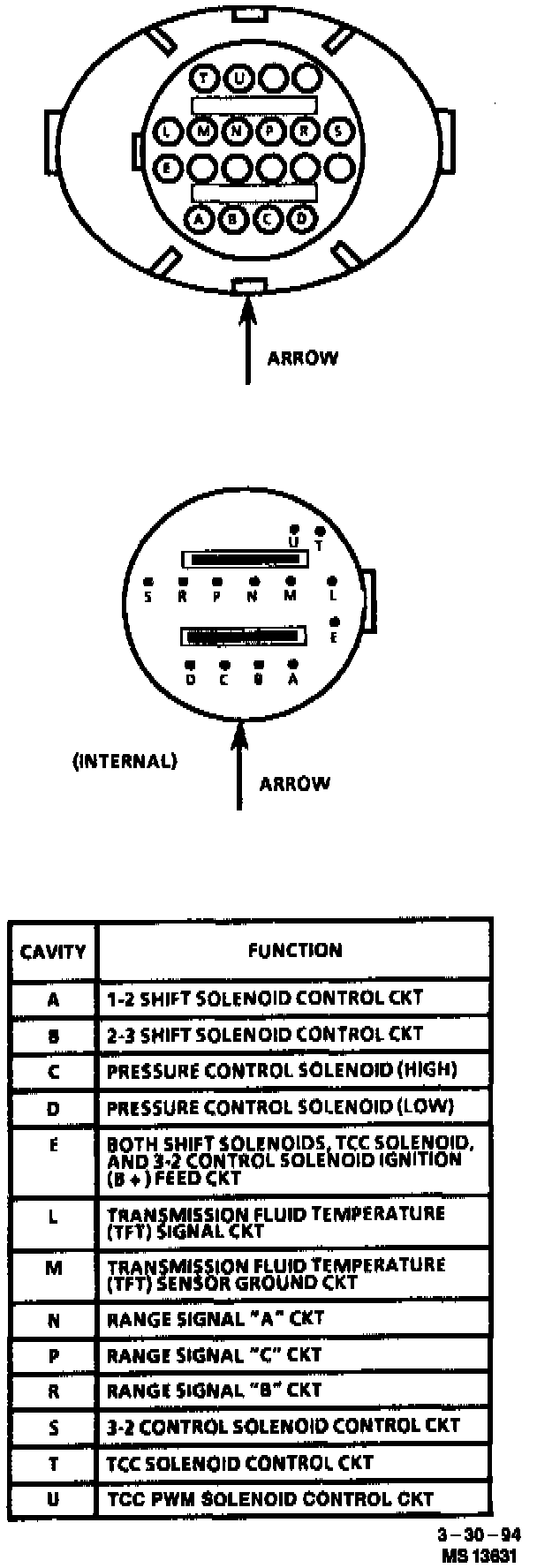

Transmission Electrical Connector
Transmission Electrical Connector
Transmission Connector Pinout ID:
