Idle Speed/Throttle Actuator - Mechanical: Service and Repair

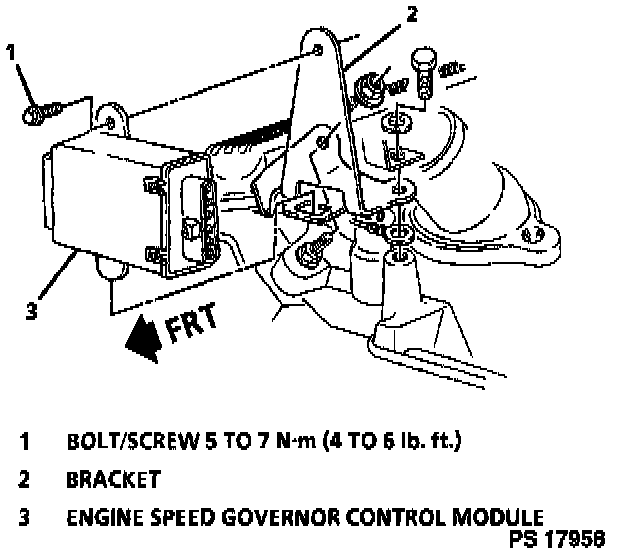

Governor Control Module:

REMOVE OR DISCONNECT
1. Electrical Connector.
2. Mounting bolts.


INSTALL OR CONNECT
1. Module to bracket.
2. Electrical connector.
