Electrical Diagrams

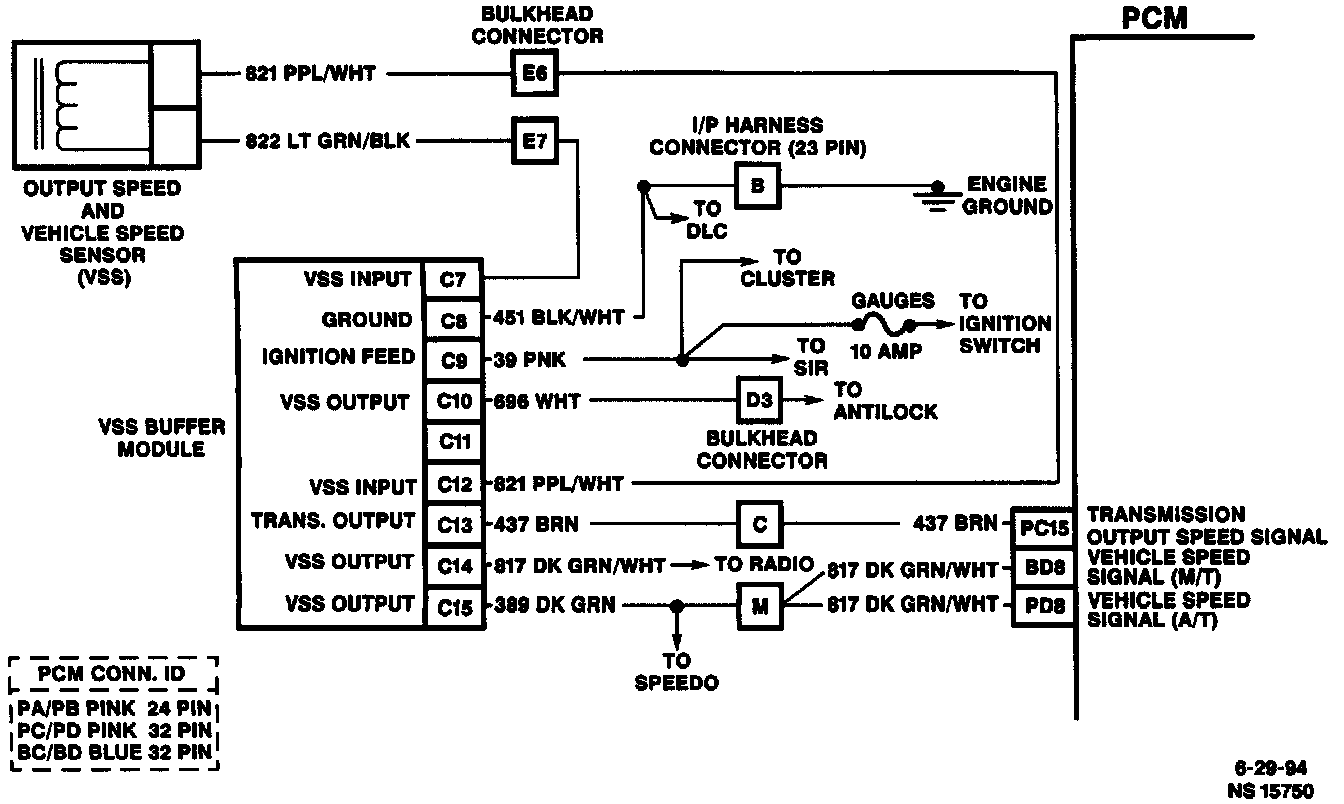

Vehicle Speed Signal Buffer Fault:

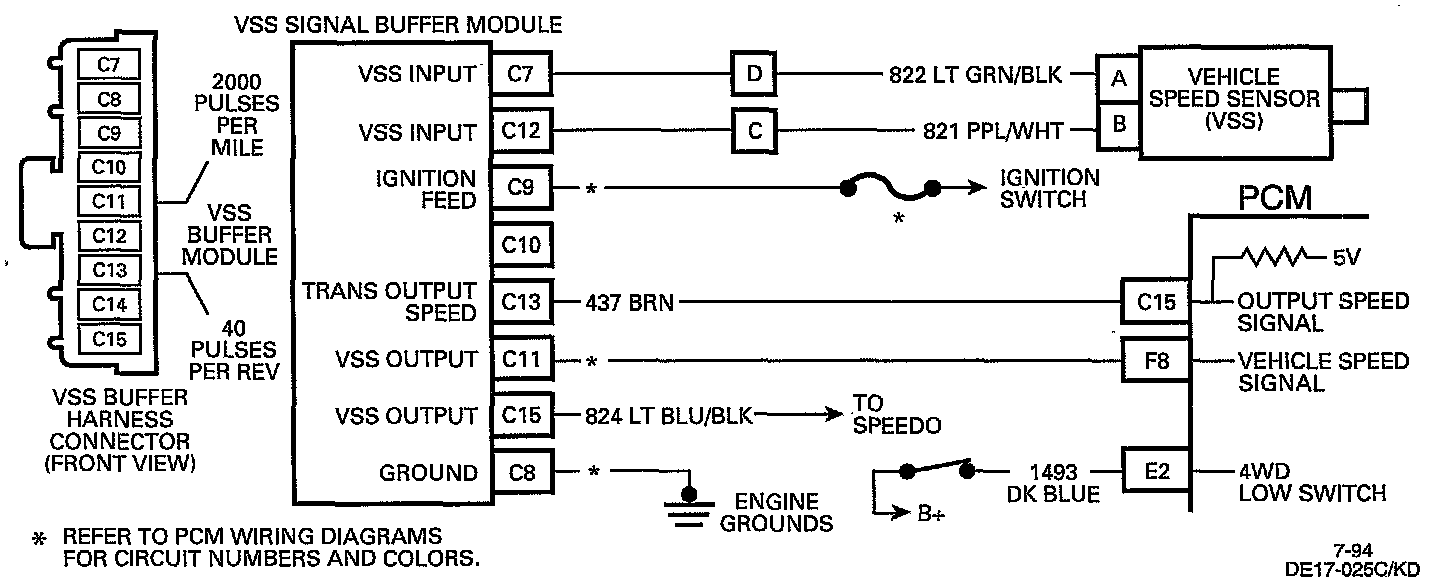

Vehicle Speed Sensor (VSS) Circuit Loss (Trans Output Speed Signal Loss):

Vehicle Speed Sensor (VSS) Circuit Low (Trans Output Speed Signal):

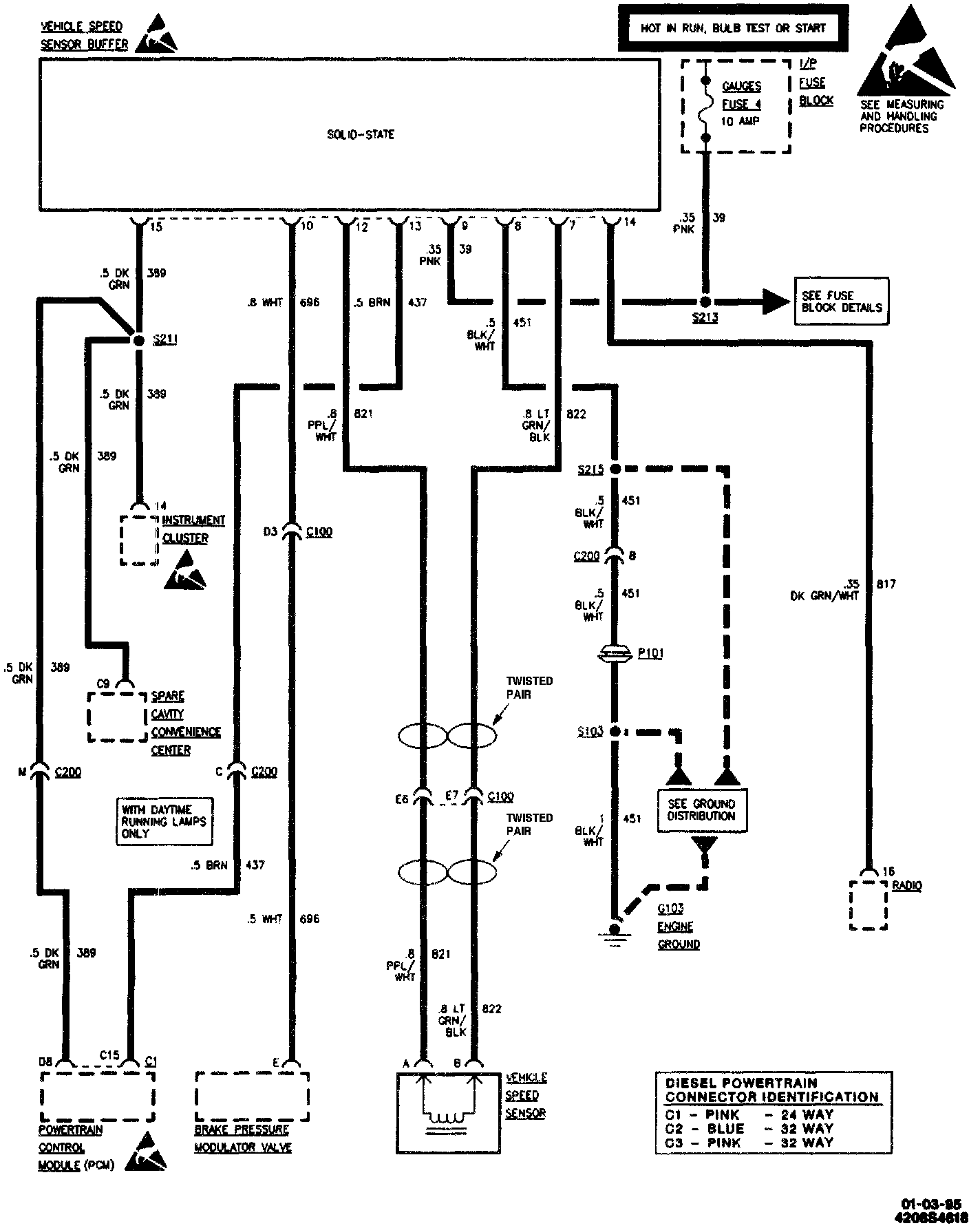

Vehicle Speed Sensor Buffer:
