Chevy Truck
>>
1995
>>
C 2500 Truck 2WD V8-6.5L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector

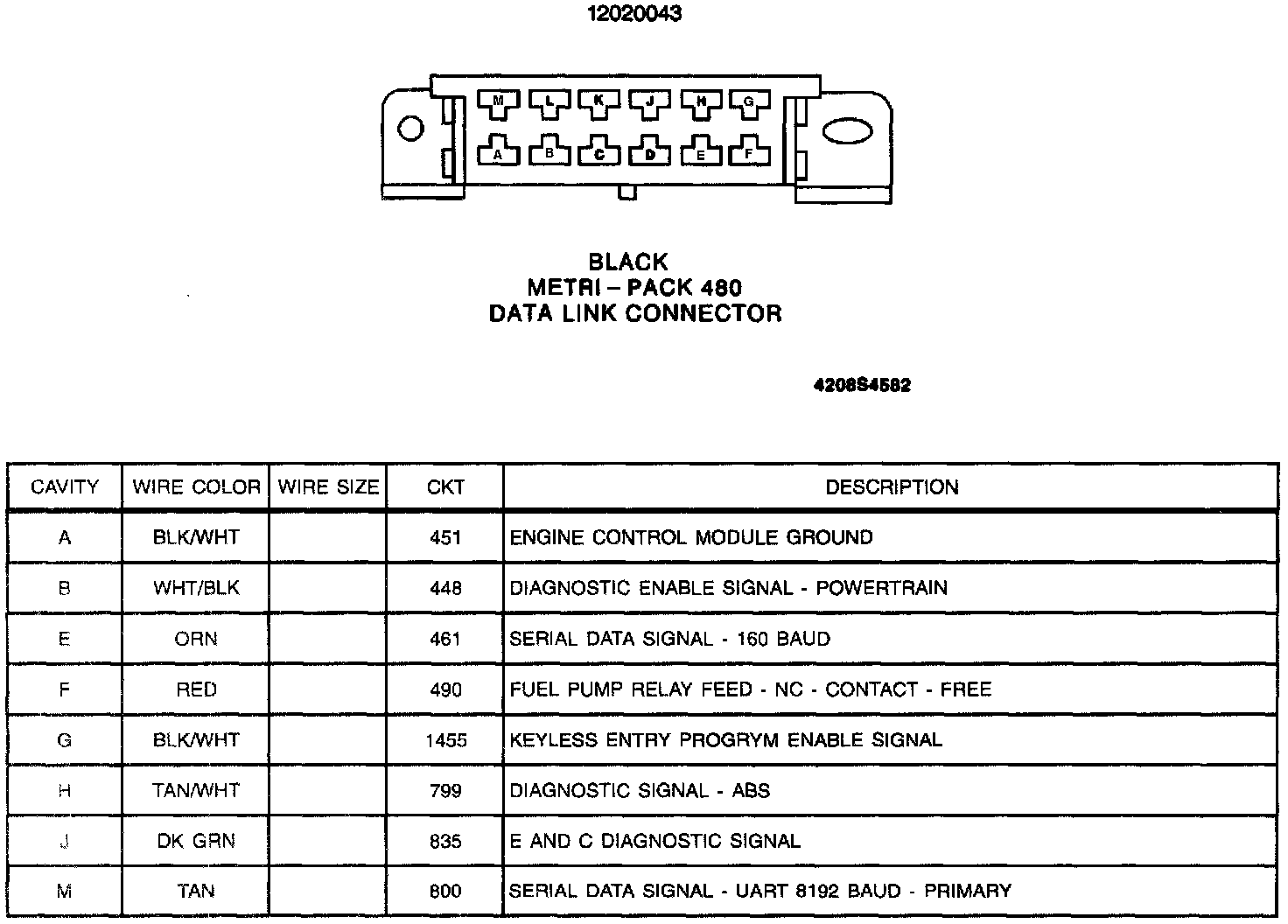

Data Link Connector
Harness Connector Faces:
