Home >> Chevy Truck >> 1995 >> C 2500 Truck 2WD V8-393 6.5L DSL VIN P >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Powertrain Management >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> C3

C3

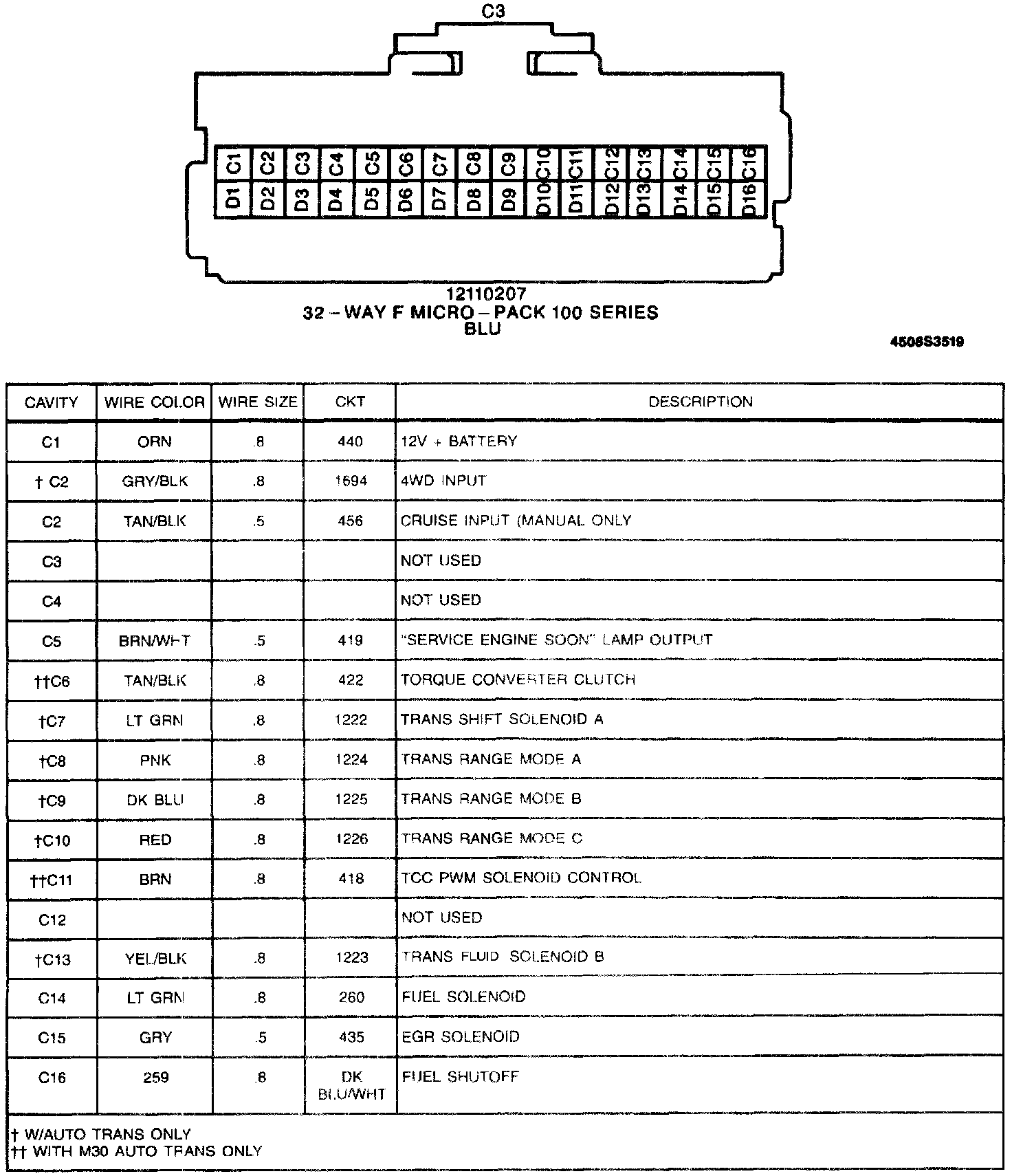

Engine Controls: C3:
