EGR Valve: Service and Repair

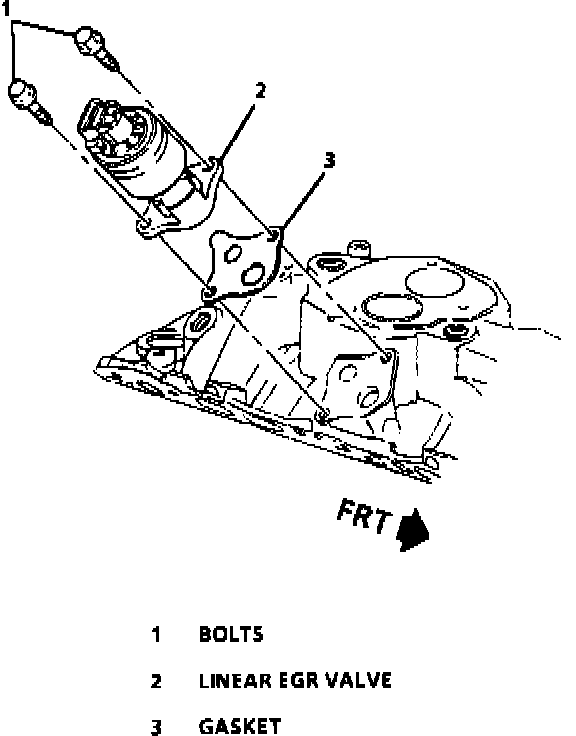

Linear EGR Valve:

REMOVAL
- Disconnect the electrical connector.
- Remove the valve to flange attaching bolts.
- Remove the Linear EGR valve and gasket.
- Discard gasket.

INSTALLATION
- Install Linear EGR valve and a new gasket.
- Install valve to flange attaching bolts. Tighten bolts in two steps: first to 10 Nm (89 lb. in.), second to 25 Nm (18 lb. ft.).
- Connect the electrical connector.
- Use a bidirectional scanner to confirm that the system is functional.
