C 2500 Suburban 2WD V8-454 7.4L VIN N TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Windows
>>
Power Window Switch
>>

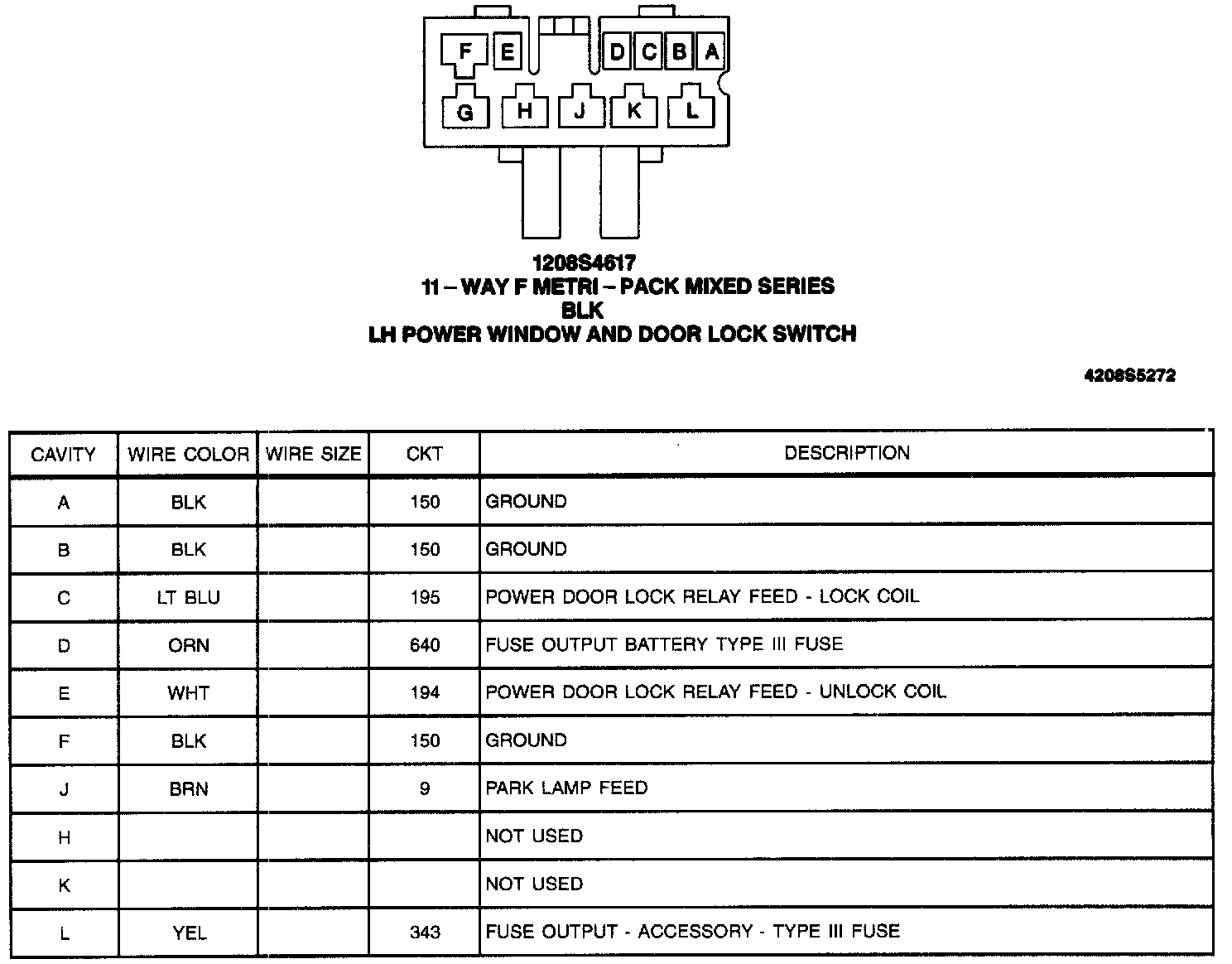

Power Window and Door Lock Switch, LH
Power Window and Door Lock Switch, LH

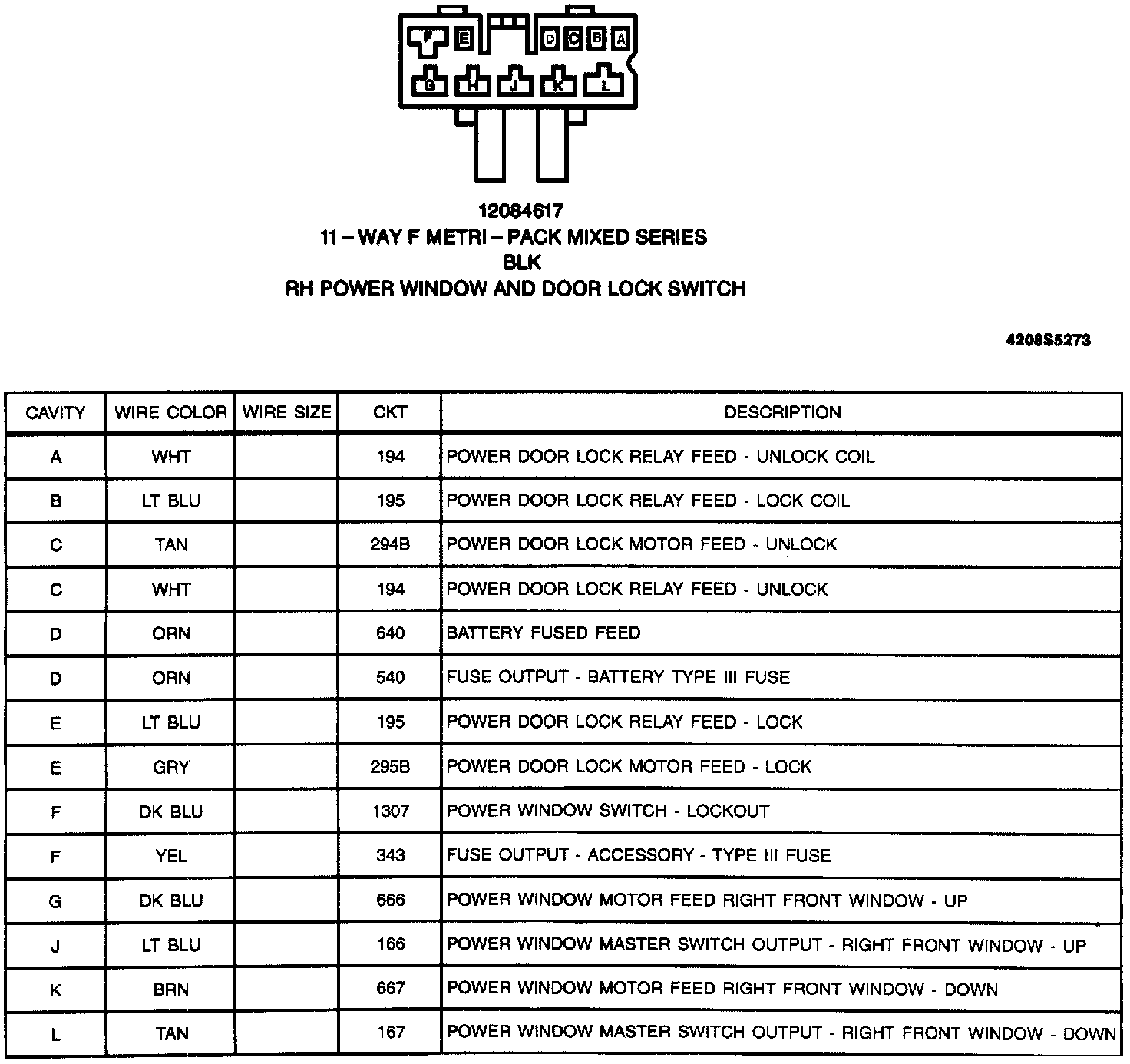

Harness Connector Faces:
Harness Connector Faces:
