Front System W/Auxiliary Unit

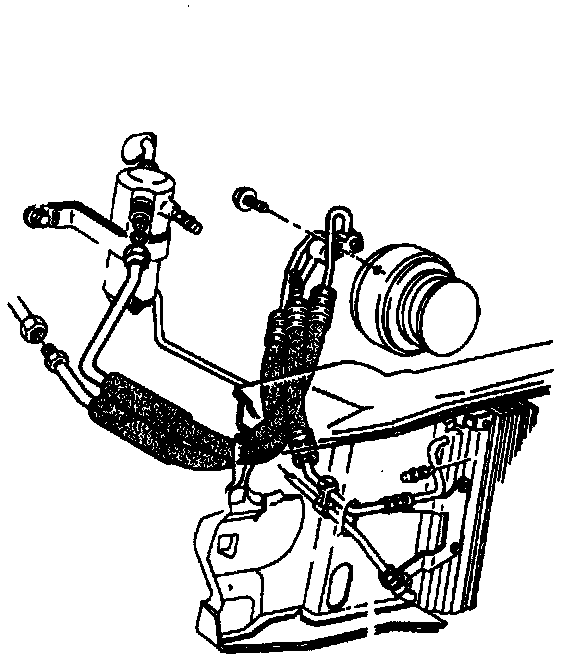

Compressor And Condenser Hose Assembly:

Remove or Disconnect
1. Discharge and recover refrigerant from the system.
2. Auxiliary heater pipe, if equipped.
3. Compressor support braces.
4. Bolt.
5. Hose assembly from rear of the compressor.
6. Sealing washers.
7. Hose assembly from accumulator.
8. O-ring seal.
9. Vacuum reservoir.
10. Hose assembly from condenser.
11. O-ring seal.
12. Hose assembly from auxiliary compressor hose.
13. O-ring seal.

- Cap or plug all open connections.

Install or Connect
1. New O-ring seal.
- Coat O-ring seal with 525 viscosity refrigerant oil.
2. Hose assembly to auxiliary compressor hose. Tighten hose assembly to 24 Nm (18 lbs. ft.).
3. New O-ring seal.
- Coat O-ring seal with 525 viscosity refrigerant oil.
4. Hose assembly to condenser. Tighten hose assembly to 24 Nm (18 lbs. ft.).
5. New O-ring seal.
- Coat O-ring seal with 525 viscosity refrigerant oil.
6. Hose assembly to accumulator. Tighten hose assembly to 41 Nm (30 lbs. ft.).
7. Sealing washers.
8. Hose assembly to the rear of the compressor.
9. Bolt. Tighten bolt to 34 Nm (25 lbs. ft.).
10. Compressor support braces.
11. Auxiliary heater pipe, if equipped.
12. Refrigerant to the system.
