Control Arm Bushing: Service and Repair

1. Remove lower control arm.

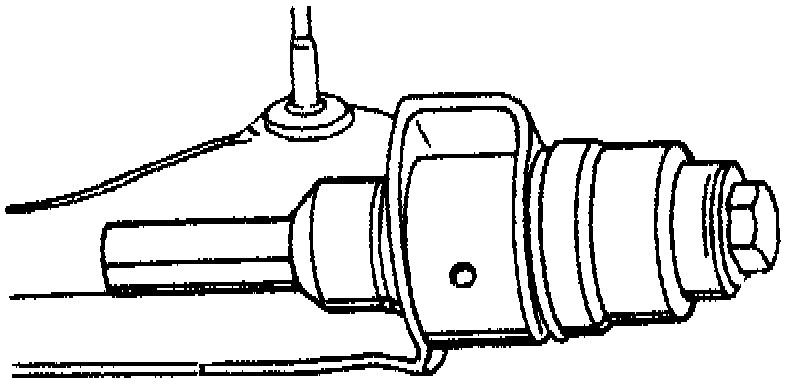

Fig. 5 Lower Control Arm Front Bushing Removal:

Fig. 13 Lower Control Arm Rear Bushing Removal:

2. Drive bushing flare down flush with rubber of front bushing, then remove front and rear bushings from control arm, Fig 2. 12 and 13.

Fig. 7 Lower Control Arm Front Bushing Installation:

Fig. 15 Lower Control Arm Front Bushing Flare:

3. Install front bushing, Fig. 14, then flare the bushing, Fig. 15.

Fig. 16 Lower Control Arm Rear Bushing Installation:

4. Install rear bushing, Fig. 16, then the lower control arm.
