Chevy Truck
>>
1995
>>
Astro Van L AWD V6-262 4.3L VIN W CPI
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
System Specifications
>>
Fastener Tightening Specifications - Upper Intake Manifold
Fastener Tightening Specifications - Upper Intake Manifold

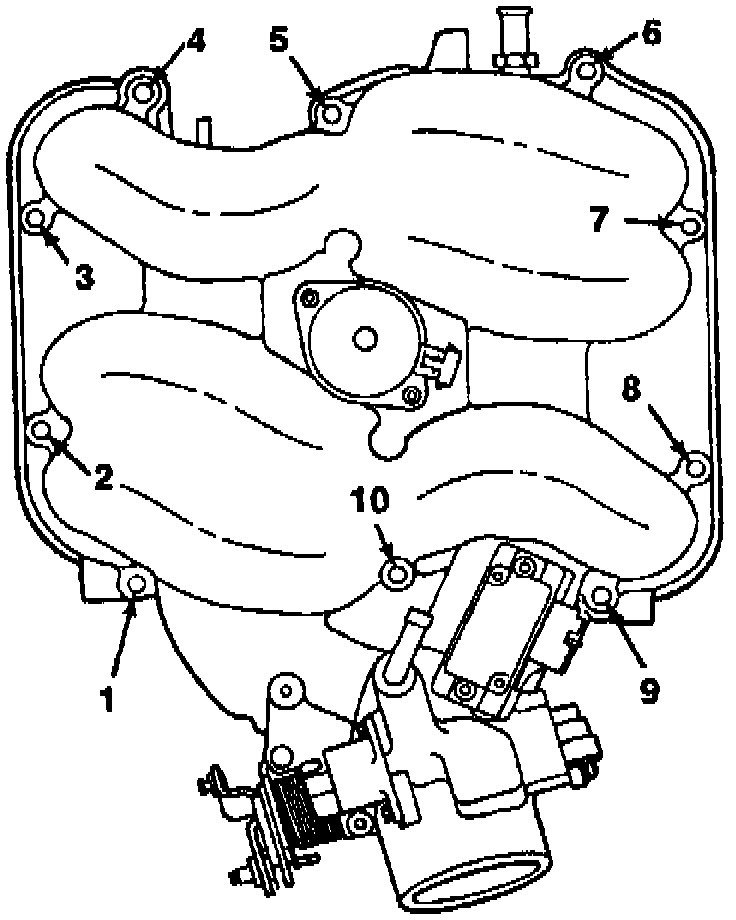

Fig. 8 Upper Intake Manifold Bolt Tightening Sequence:
