Variable Induction Control Valve: Locations

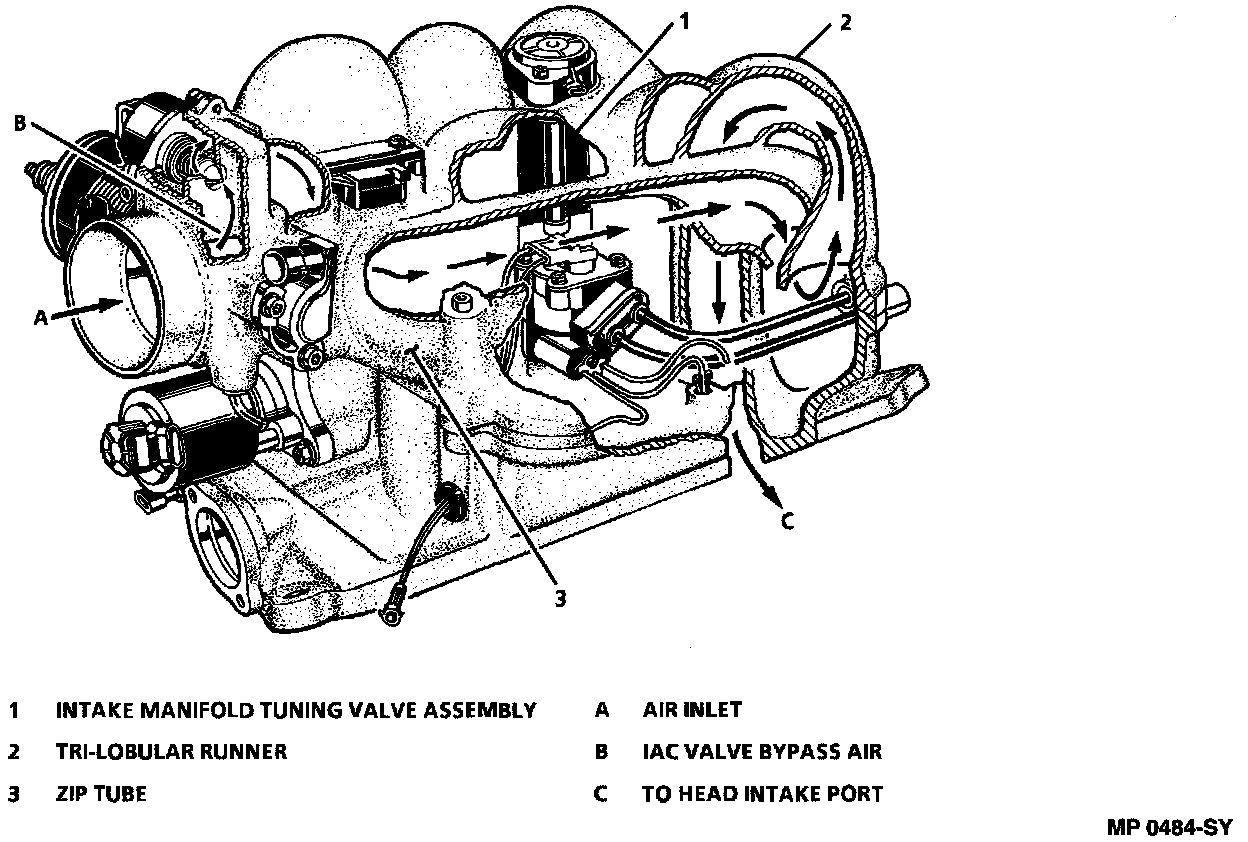

(figure 1) Central MFI Air Flow Diagram:

The intake manifold is made up of the upper and lower manifold assemblies. The upper manifold assembly is a variable tuned split plenum design that includes an intake manifold tuning valve. Figure 1 depicts the relative location on the intake manifold/plenum.
