Vehicle Speed Sensor Signal Buffer
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams
Vehicle Speed Sensor:

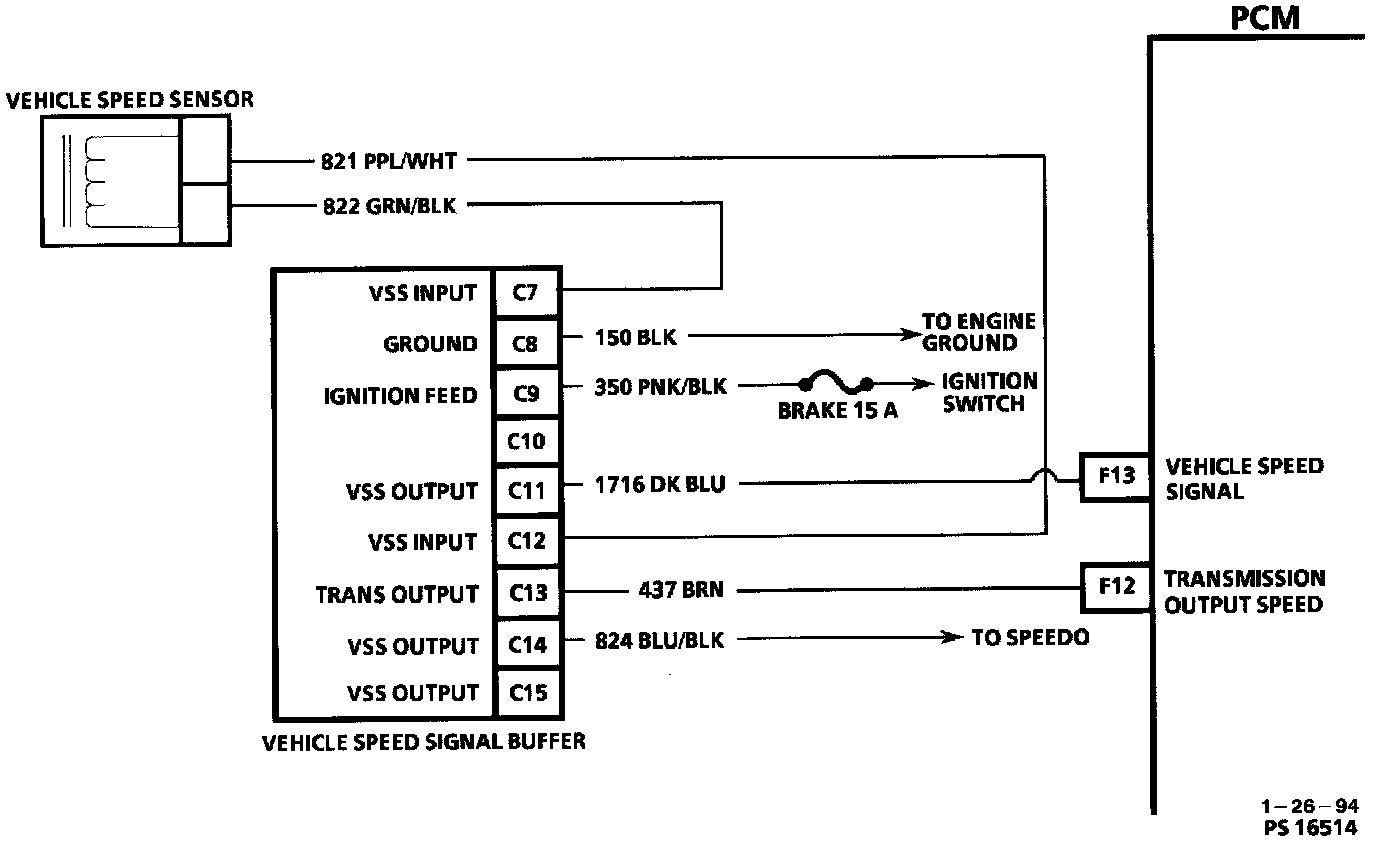

Vehicle Speed Sensor And Buffer Circuit Wiring:
