Chevy Truck
>>
1995
>>
Astro Van L AWD V6-262 4.3L VIN W CPI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>

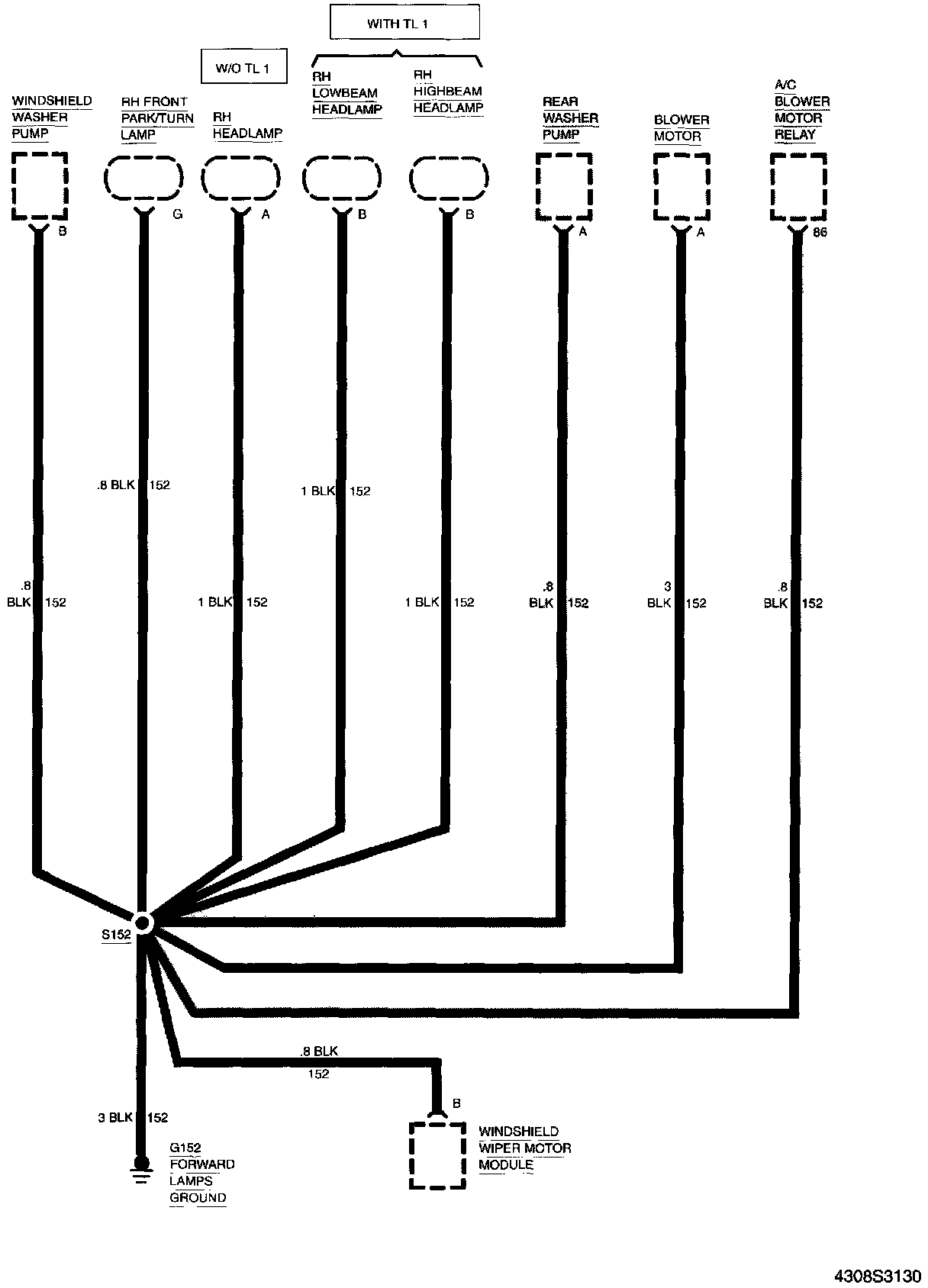

G152
G152
G152:
