Chevy Truck
>>
1995
>>
Astro Van L AWD V6-262 4.3L VIN W CPI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

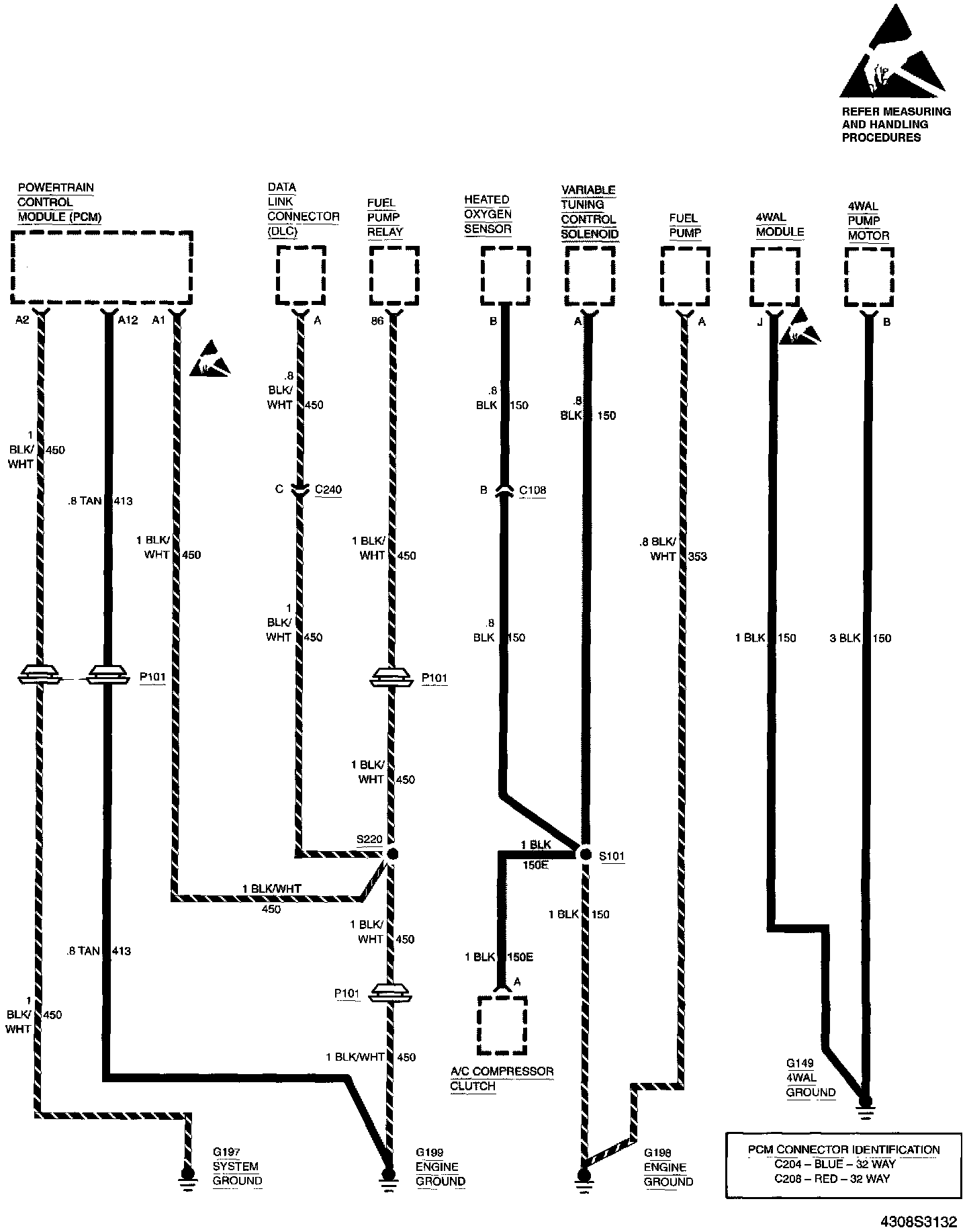

Ground Distribution
>>
G149
G149
G197, G199, G198, G149:
