Chevy Truck
>>
1995
>>
Astro Van L AWD V6-262 4.3L VIN W CPI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

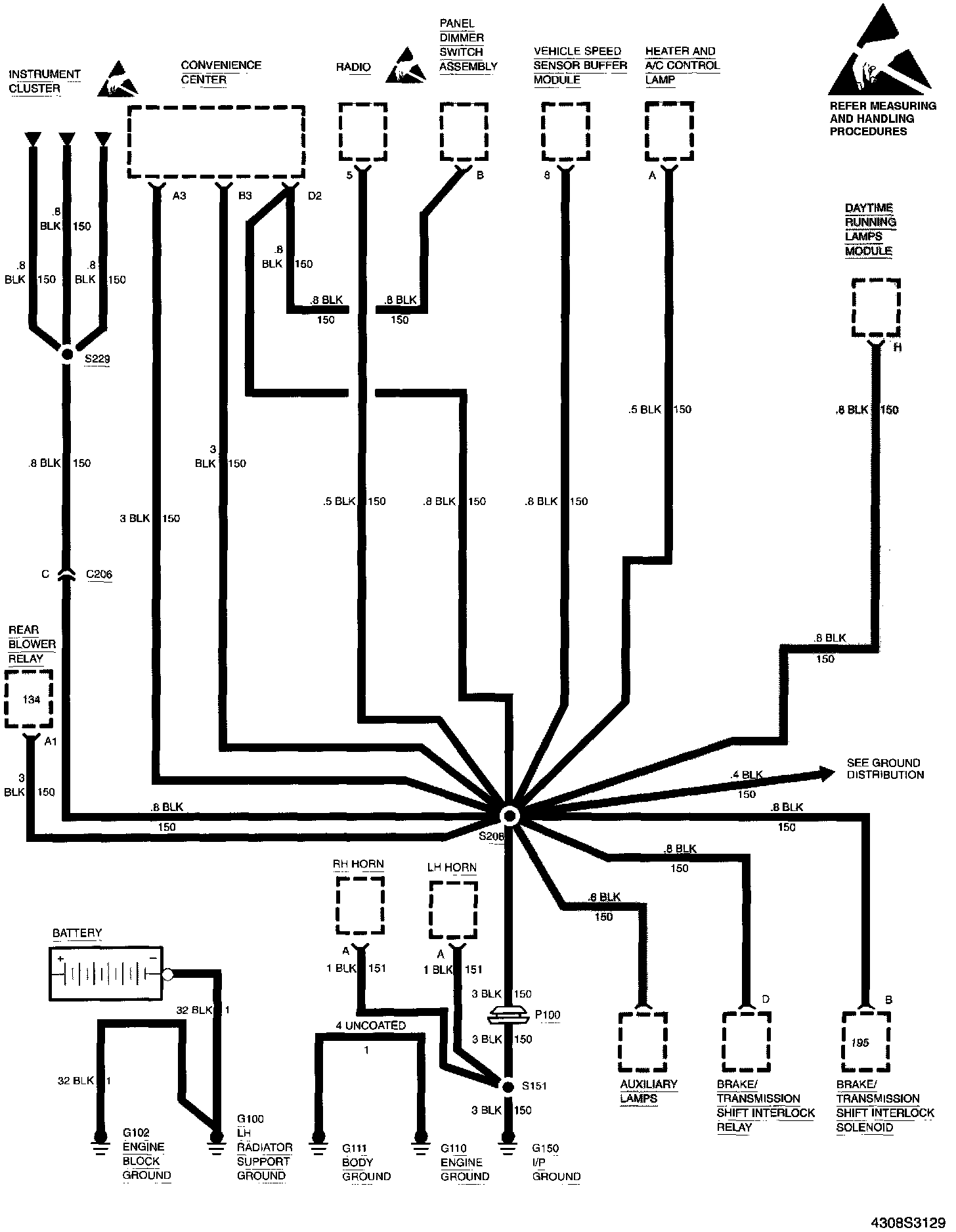

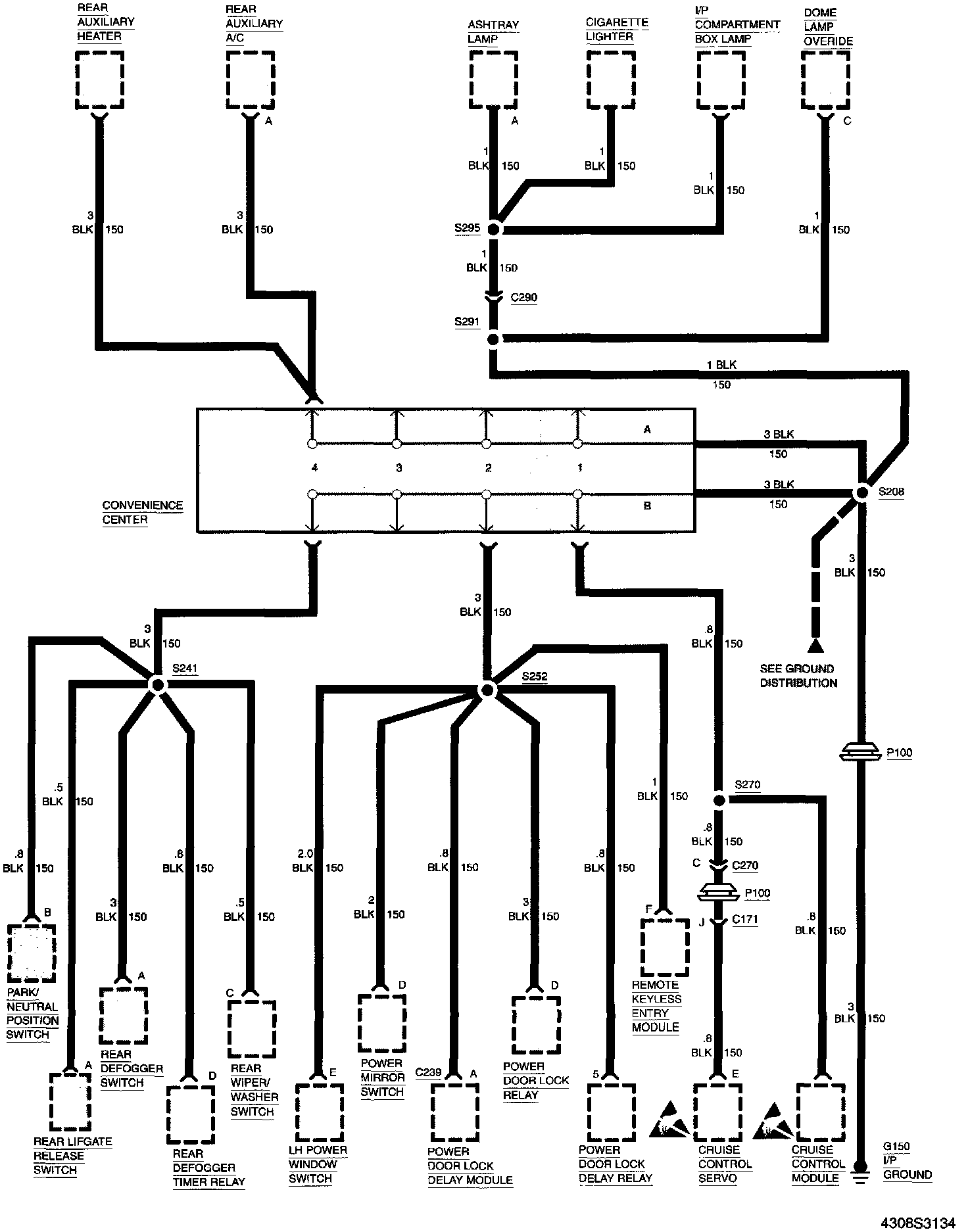

Ground Distribution
>>
G111
G111
G102, G100, G111, G110, G150:
G150:
