Removal

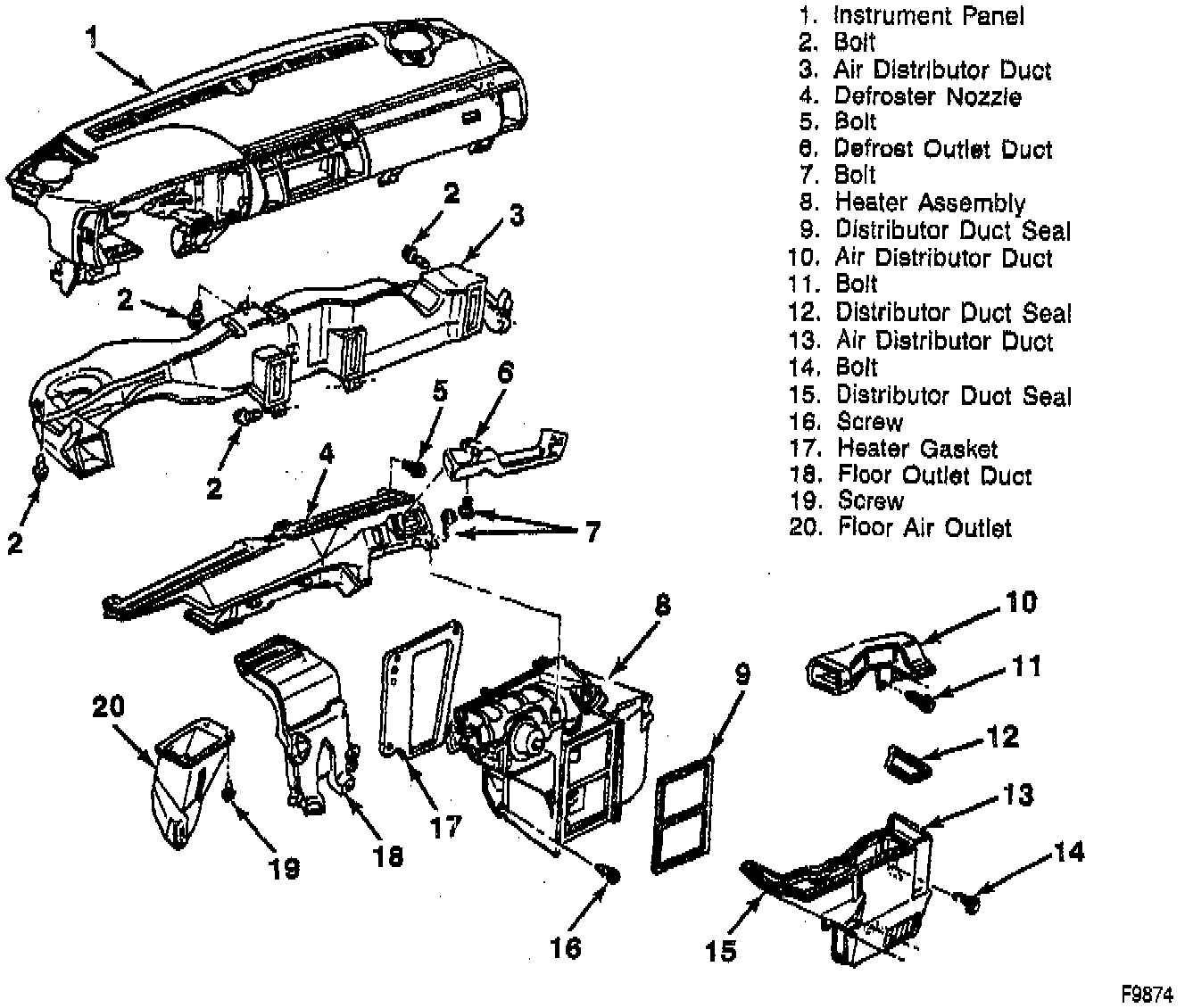

Heater-Defroster Assembly:

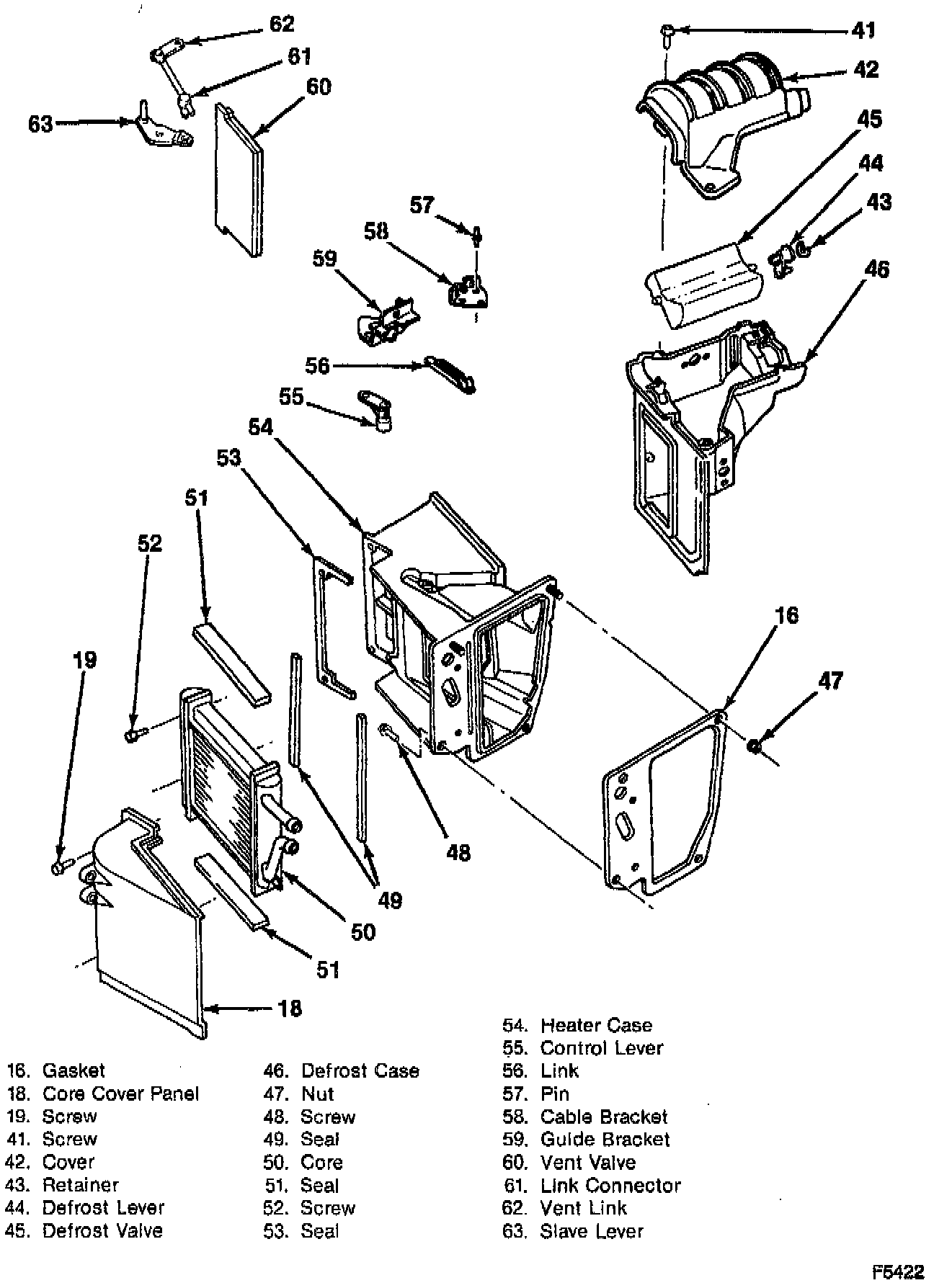

Heater Assembly Component View:

REMOVE OR DISCONNECT
1. Engine coolant.
2. Heater hoses.
3. Instrument panel lower filler.
4. Floor air outlet duct.
5. Outlet duct screws.
6. Windshield defrost outlet duct.
7. Case cover screws.
8. Heater case cover.
9. Heater core screws.
10. Heater core.
11. Seals.
