New Process Model 205

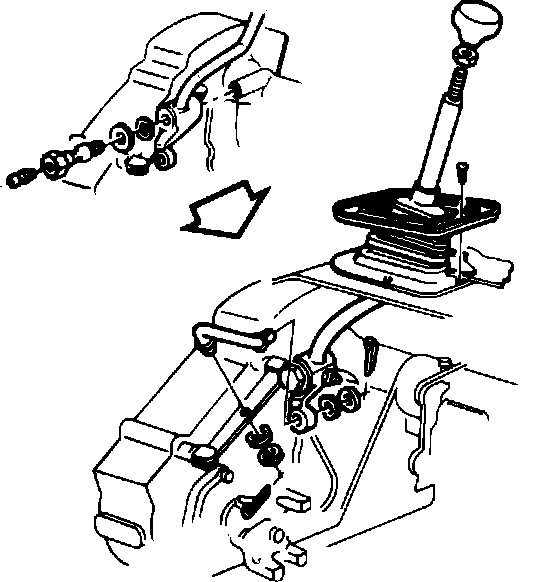

Fig. 1 Transfer case shift linkage:

The control linkage for New Process Model 205 transfer cases is shown in Fig. 1. Inspect linkage system periodically for freedom of operation, proper engagement or loose attaching bolts. Adjust, clean and tighten as necessary.
