Chevy Truck
>>
1990
>>
Suburban 1/2 Ton 4WD V8-454 7.4L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Insufficient Heating
>>
Chart A
Chart A

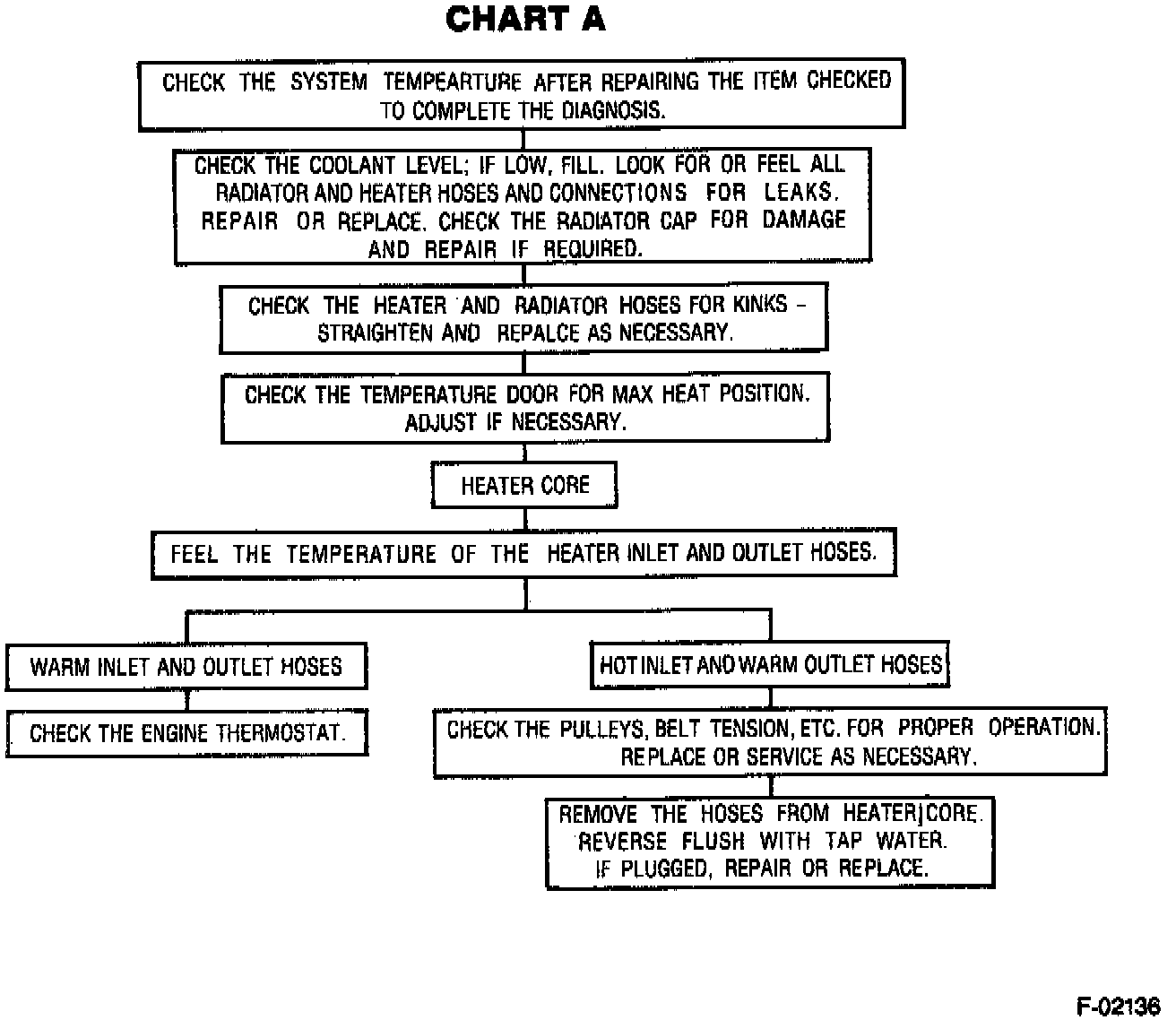

Insufficient Heat Diagnosis - Chart A:
