Suburban and Utility

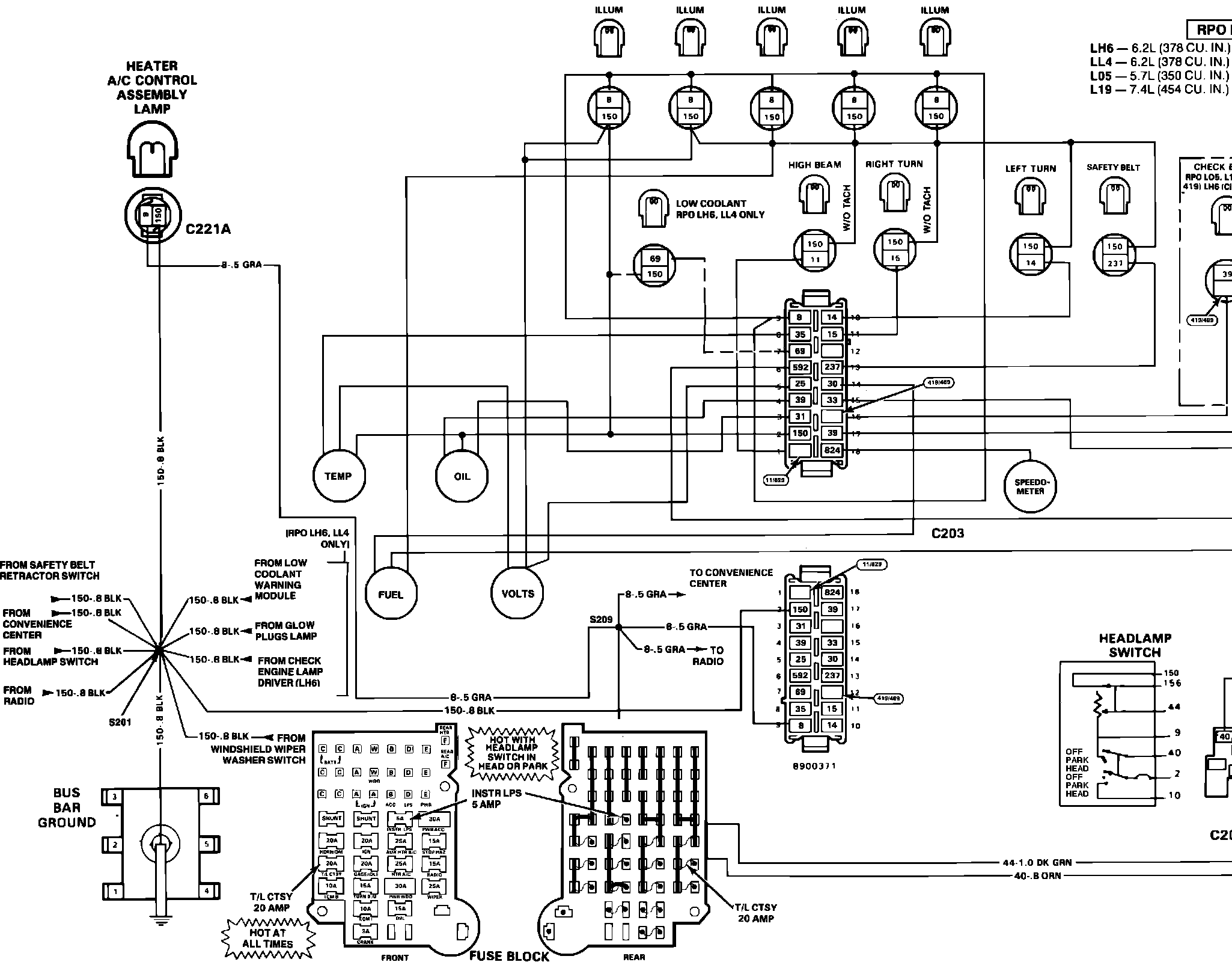

%��Instrument Panel and Warnings and Indicators: Check Engine, Brake, and Safety Belt (Suburban and Utility):
