Chevy Truck
>>
1990
>>
Suburban 1/2 Ton 2WD V8-454 7.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
Without Air Conditioning
>>

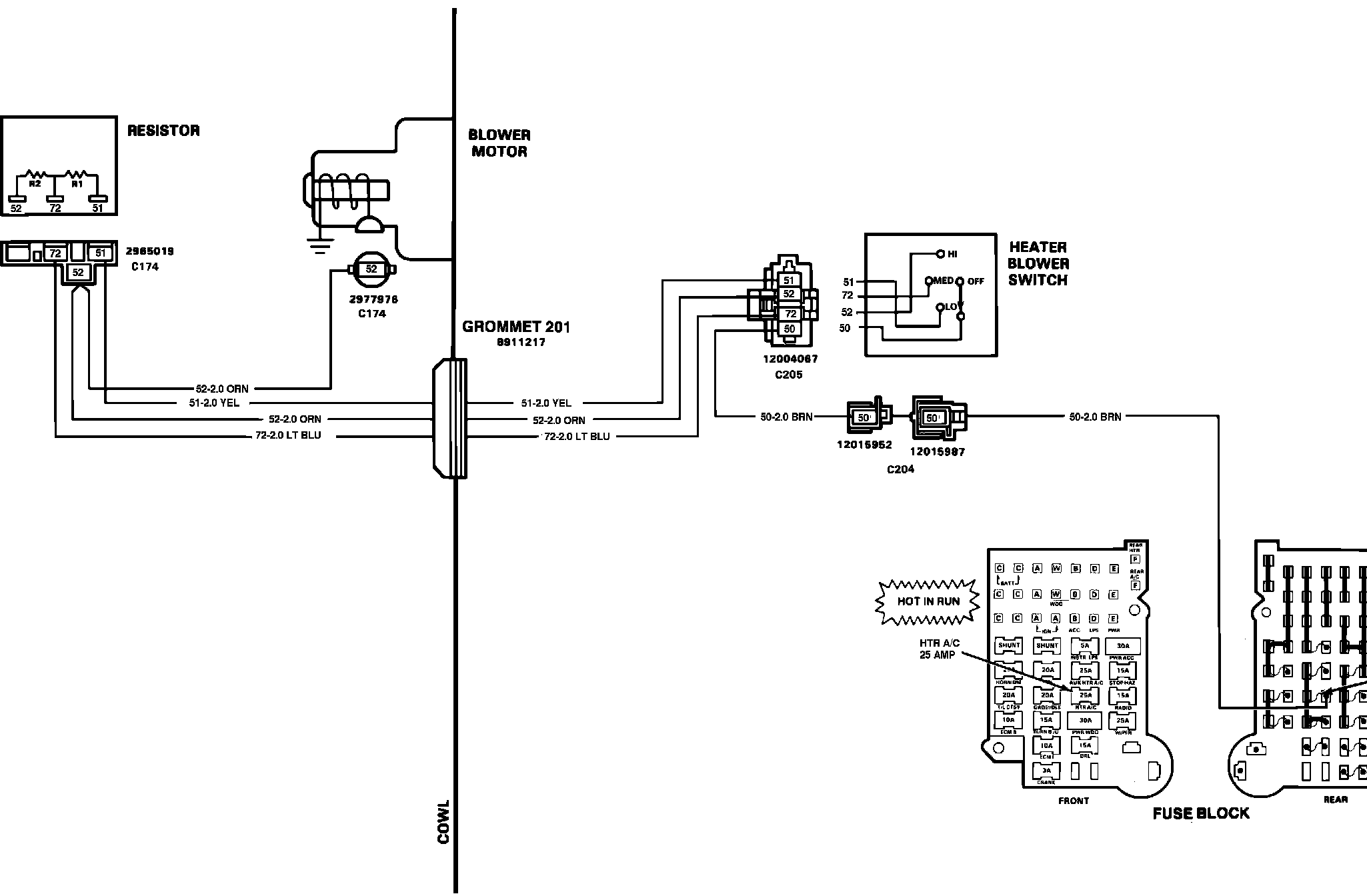

Front Heater
Front Heater
f��9Main Heater:
