Home >> Chevy Truck >> 1990 >> Suburban 1/2 Ton 2WD V8-454 7.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> With Air Conditioning >> Rear Air Conditioning

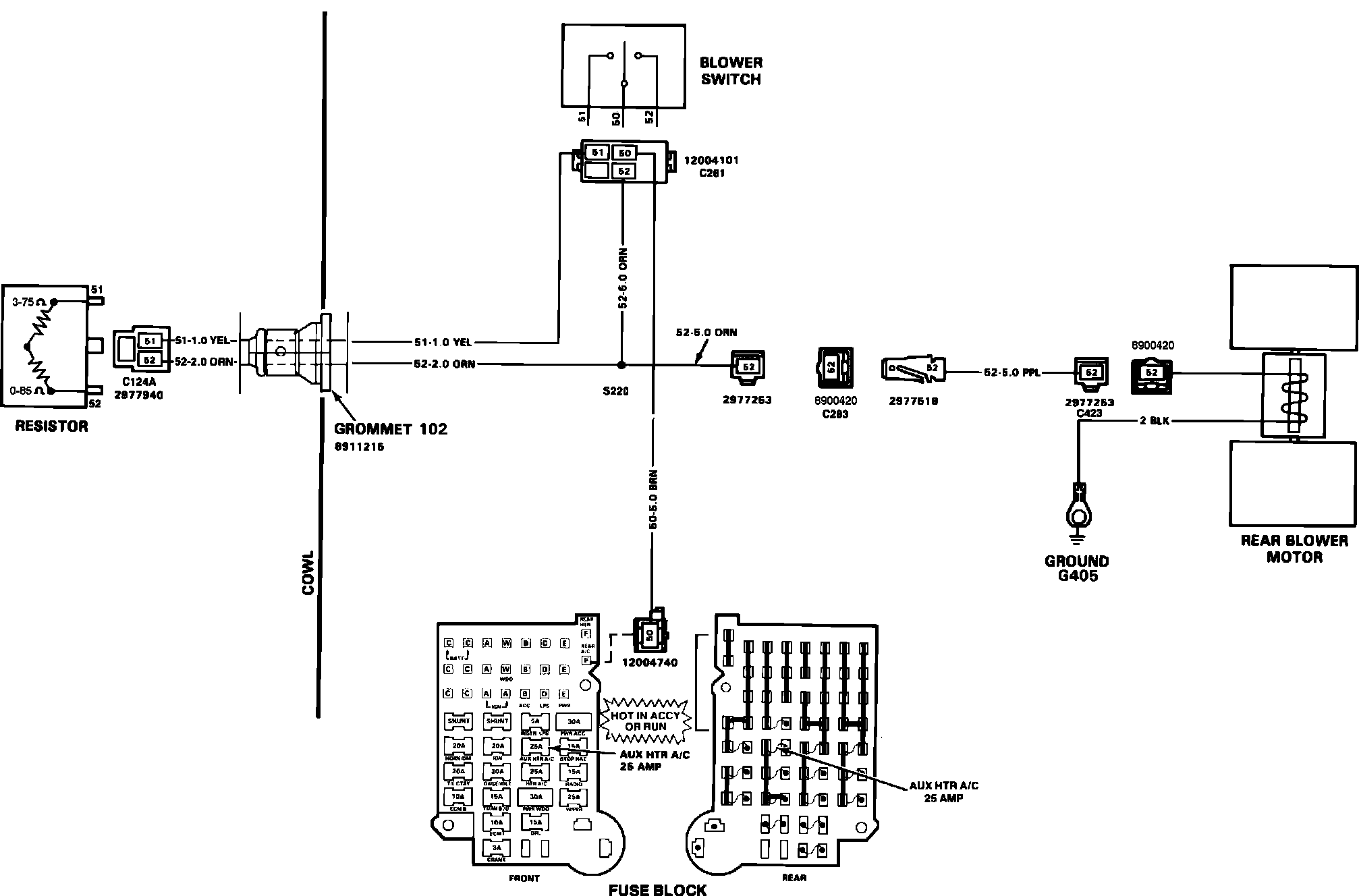

Rear Air Conditioning

Air Conditioning: Rear (Roof Mounted):
